A Tiny Device for Quick Authenticity Checks

Regula magnifiers are compact devices constructed in a plastic body with diopter adjustment of the eyepiece.


Depending on the model, they can be equipped with a measuring scale and various light sources: white incident, white oblique, or ultraviolet 365 nm. There are several available degrees of magnification: 10x, 14x, 20x, or 23x.

Regula 1004MU

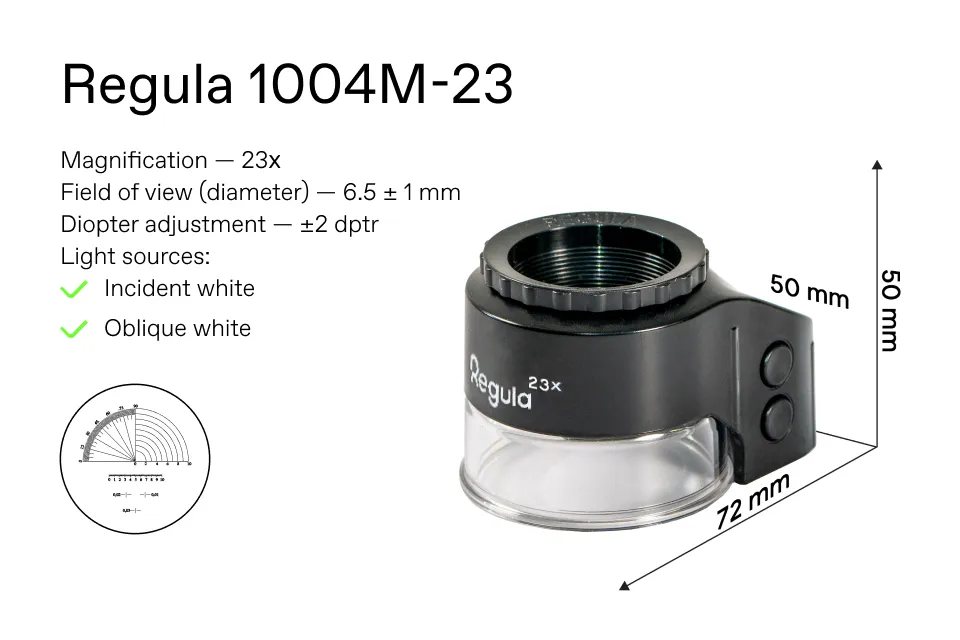

Regula 1004M-23

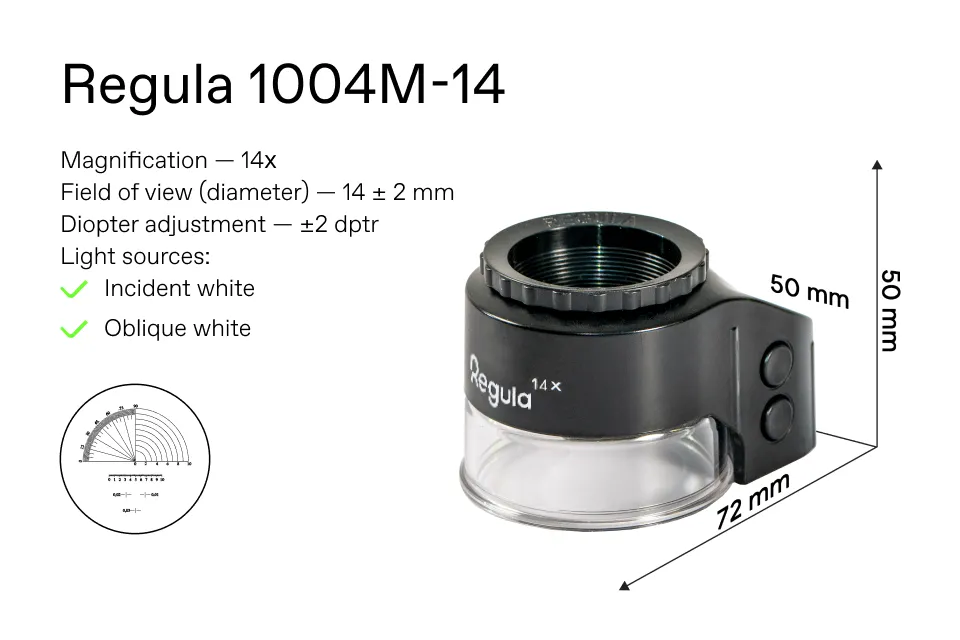

Regula 1004M-14

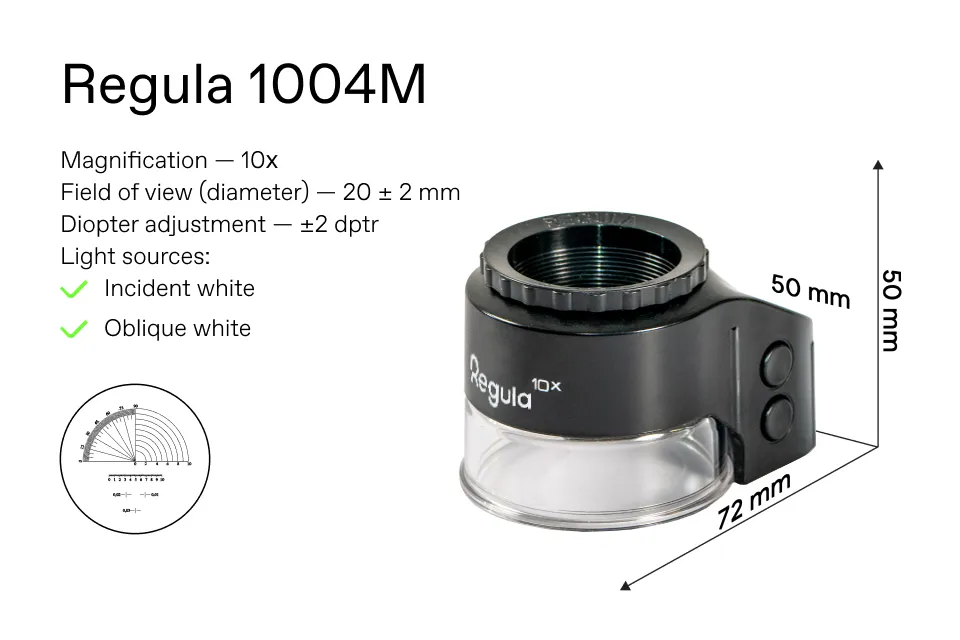

Regula 1004M

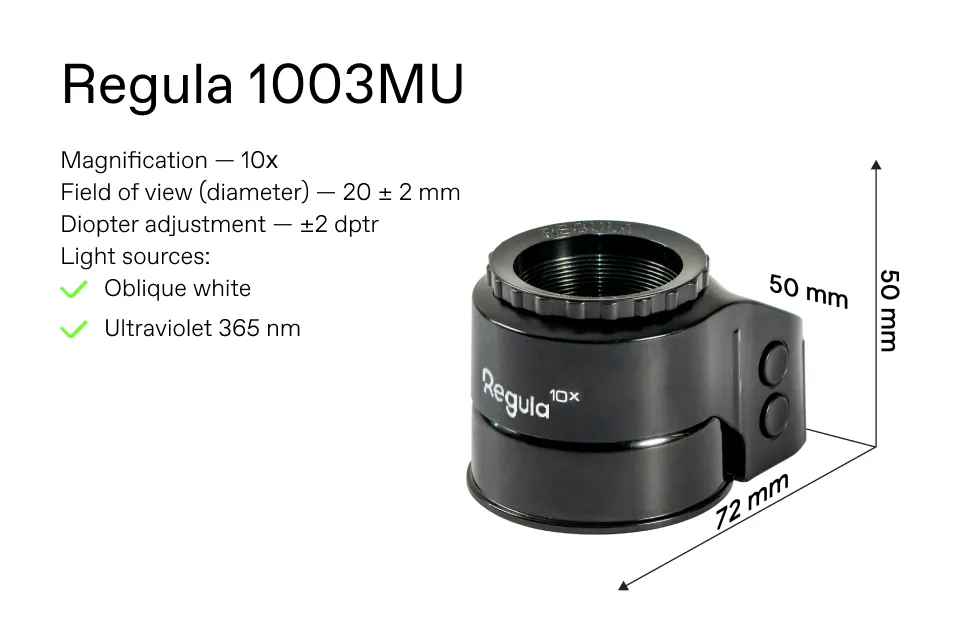

Regula 1003MU
Regula 1003M-23
Regula 1003M-14

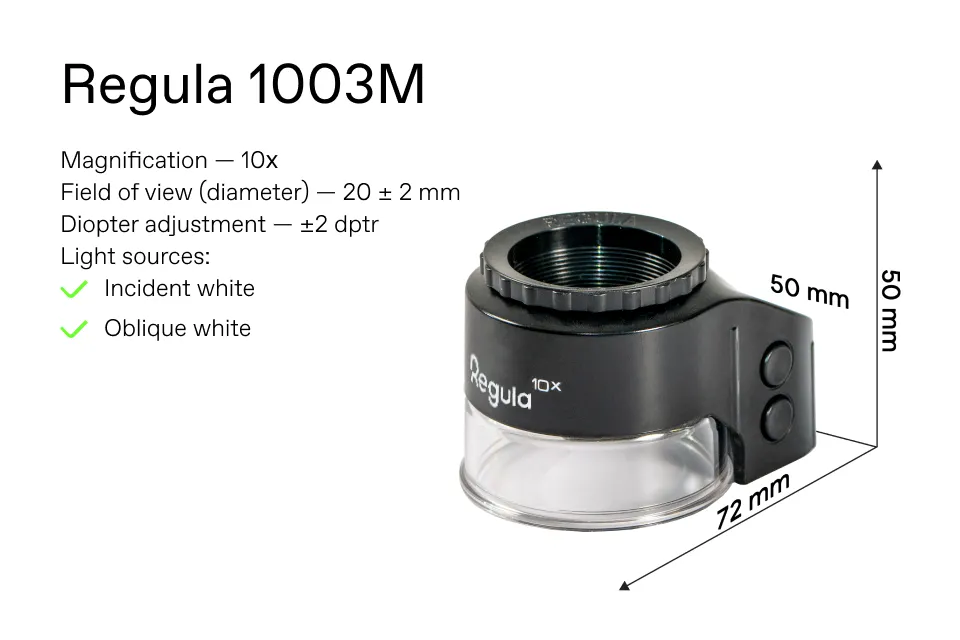

Regula 1003M
Regula 1002M

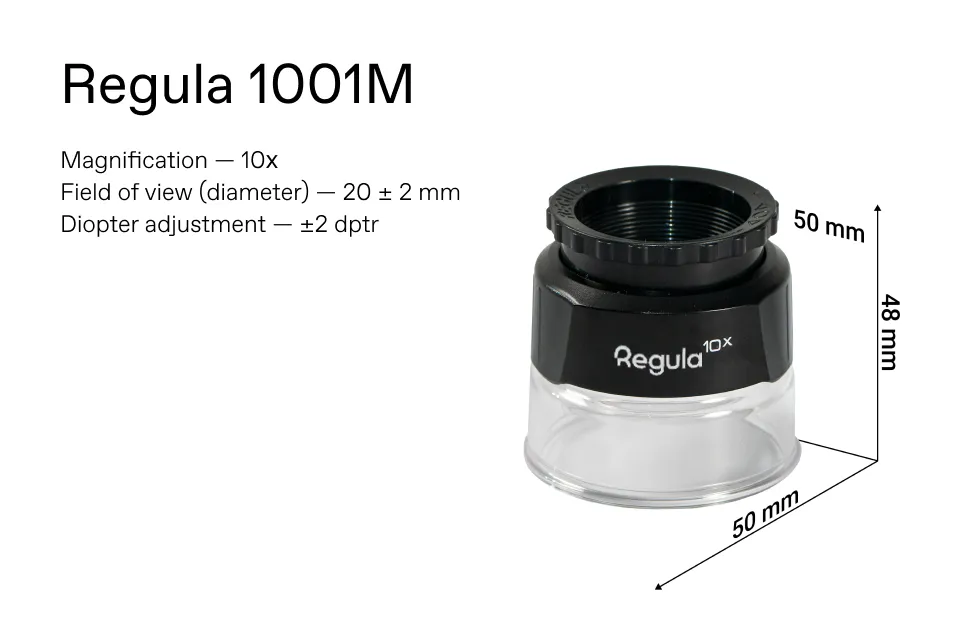

Regula 1001M

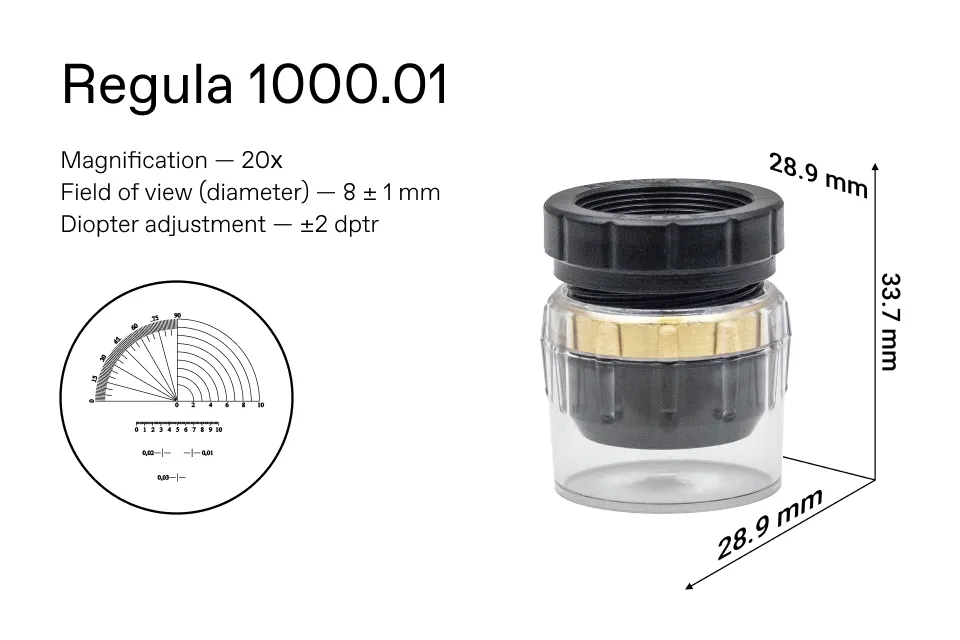

Regula 1000.01
Regula 1000

Models

Models Magnification Field of view (diameter), mm Measuring scale Light sources*
1003M-23

23x

6,5 ± 2

IW, OW

1004M-23

23x

6,5 ± 2

IW, OW

1000

20x

8 ± 1

1000.01

20x

8 ± 1

1003M-14

14x

14 ± 2

IW, OW

1004M-14

14x

14 ± 2

IW, OW

1001M

10x

20 ± 2

1002M

10x

20 ± 2

1003M

10x

20 ± 2

IW, OW

1003MU

10x

20 ± 2

OW, UV

1004M

10x

20 ± 2

IW, OW

1004MU

10x

20 ± 2

OW, UV

*IW - Incident white; OW - Oblique white;
 UV - Ultraviolet 365 nm
Does not constitute а public offer

Intended Objects for Examination

Passports
ID cards
Passport stamps
Banknotes
Signatures and handwritten notes
Vehicle registration certificates
Driver’s licenses
Art and collectibles
Revenue stamps
