Forensic Light Kit Regula 3116M: Precise Evidence Detection Tools

HomeForensic Light Kit 3116M

Everything an Expert Needs for Precise Evidence Detection

Equip yourself with the complete, portable solution for detecting and documenting evidence both at the crime scene and in the laboratory, which includes:

Multiple light sources (white, blue, UV, IR)
Capture device with onboard image software
Protective goggles
Adjustable mounting arm
Integration with Regula Forensic Studio
Durable case for secure storage and transport

Supercharge your forensic investigations with the ultimate toolkit for unmatched precision and results!

Detect any traces

Bloodstains

Blood traces—including old, diluted, or washed-out stains—can be effectively visualized using infrared (IR 850 nm) illumination, which produces strong contrast against dark or patterned fabrics (e.g., jeans, shirts).

Gunshot residue (GSR)

Gunshot residue can be detected using infrared (IR 850 nm) illumination, which reveals high-contrast stippling patterns and powder particles on textured or dark materials.

Fingerprints

Latent fingerprints, including sweat/oil residues or those treated with powders or fluorescent reagents, are clearly visible under blue light (450 nm) or UV (365 nm).

Body fluids

Biological traces such as semen, saliva, and sweat show distinct fluorescence under blue (450 nm) and UV (365 nm) light, especially when viewed through filtering masks. On complex fabrics or fluorescent backgrounds, narrow-band filters can isolate these traces.

Bone and tooth fragments

Fragments of bone and teeth can be identified through their distinctive reflection or fluorescence under UV (365 nm) or blue light (450 nm). These materials stand out against natural backgrounds like soil or vegetation at outdoor crime scenes.

Hair and fibers

Natural and synthetic fibers, as well as hair, often fluoresce under UV (365 nm) or blue light (450 nm). UV light is especially effective for highlighting individual strands or lubricants on dark materials.

Accelerants

Residues of flammable liquids such as gasoline, kerosene, or oils can exhibit fluorescence or altered reflectivity under UV (365 nm) or blue light (450 nm). These visual cues guide targeted sample collection for further chemical analysis (e.g., GC/MS). The complex also supports documenting luminescent traces on varied surfaces.

Highlighted Features

Powerful operating software

The Forensic Light Kit is fully integrated with Regula Forensic Studio operating software, which enables image processing, measurements, annotation, markup, image overlay, and visual pointers. It also supports the use of accompanying metadata such as geolocation, descriptions, and shooting conditions—the latter being especially critical for reproducing imaging parameters during forensic examinations. The integration also supports streamlined report generation directly within the software.

Specialized mobile app on the capture device

The mobile capture app used in the system is a dedicated Regula application installed on the capture device. It ensures distortion-free photo and video capture, preserving the integrity of visual evidence. The app also allows users to tag images with essential contextual data—such as GPS coordinates and shooting conditions—directly on the device.

Optional backpack for transport

For greater mobility and convenience, the system can now be supplied with a custom-designed backpack that safely holds all the components of the Regula 3116M in a compact, secure layout. The backpack is highly ergonomic and helps reduce physical strain on the forensic expert when traveling to a crime scene—even in remote or hard-to-reach locations such as forests or rugged terrain.

Preventing cross-contamination

Passive cooling systems in light sources are designed to ensure that air remains contained within the device, avoiding the release of airflow into the environment. Unlike active cooling systems that can transfer microscopic particles, passive cooling eliminates the risk of cross-contamination between crime scenes. This is crucial when handling sensitive evidence, where even the slightest contamination could compromise forensic results and the integrity of legal proceedings.

dual-side ID-1 reading improves self-service

Don’t miss the full specs and capabilities

Download brochure

Hardware features

Four types of light

The high-intensity LED light sources—UV 365 nm, Blue 450 nm, Infrared 850 nm, and White—can operate in dual intensity modes, adapting seamlessly to the expert’s specific needs. The kit can detect body fluids, bone and tooth fragments, hair, fibres, general mixed debris, some drug residues, treated fingerprints, accelerants, blood stains and spatter, gunshot residue, and more.

Capture device with a set of cutting filters

The Forensic Light Kit includes a capture device with two autofocus cameras—visible-light and IR—delivering high-precision imaging. Each camera is paired with dedicated cutting filters (three for visible, two for IR) that block unwanted light and reflections, ensuring clear, high-contrast results. By combining the right light source, camera, and filter, investigators adapt to any surface or evidence type. Working together with white, blue, UV, and IR illumination, the system provides forensic experts with exceptional clarity for detecting and documenting traces.

Universal mounting system

The forensic light sources and the capture device can be attached to the special handle for use in various setups, including mounting the equipment on a tripod, an adjustable arm, or a pantograph, depending on the specific requirements of the investigation. The versatility of these mounting options expands the range of forensic applications, enabling experts to adjust the tools to different environments and scenarios, ultimately improving the accuracy and efficiency of evidence detection and documentation.

Viewing goggles with light filters

These lightweight goggles protect your eyes from glare and harmful wavelengths when working with high-intensity forensic lights. Interchangeable filters match white, blue and UV illumination, ensuring safe, comfortable viewing while enhancing contrast and revealing fine details during both field and lab work.

For the Crime Scene or the Laboratory

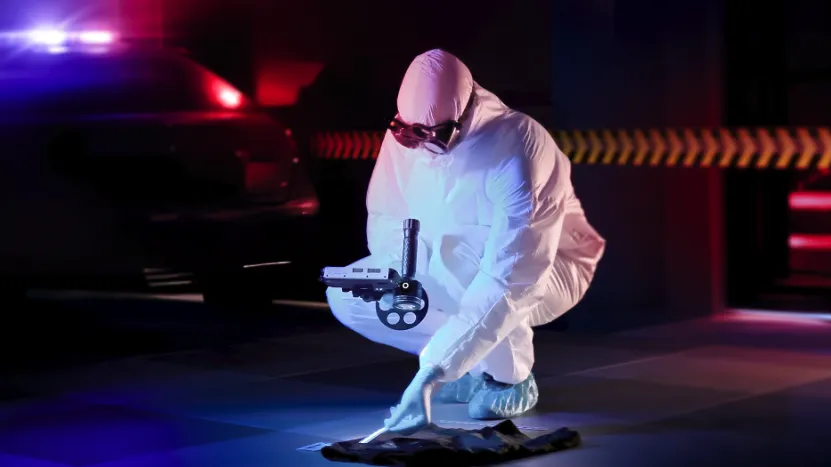

Crime Scene Use

At a crime scene, the Forensic Light Kit delivers everything required to detect and document evidence immediately: a full set of forensic lights (white, blue 450 nm, UV 365 nm, IR 850 nm), a capture device with specialised software for image recording, and an adjustable arm to position light and device precisely. The kit is packed in a dedicated backpack, making it easy to carry to the site. Investigators can select the appropriate forensic light, set it up, and capture traces such as blood, GSR, fingerprints, hairs, fibers, and accelerants. The capture software secures reliable photos with embedded geotags and shooting conditions, ensuring court-ready documentation before the scene changes.

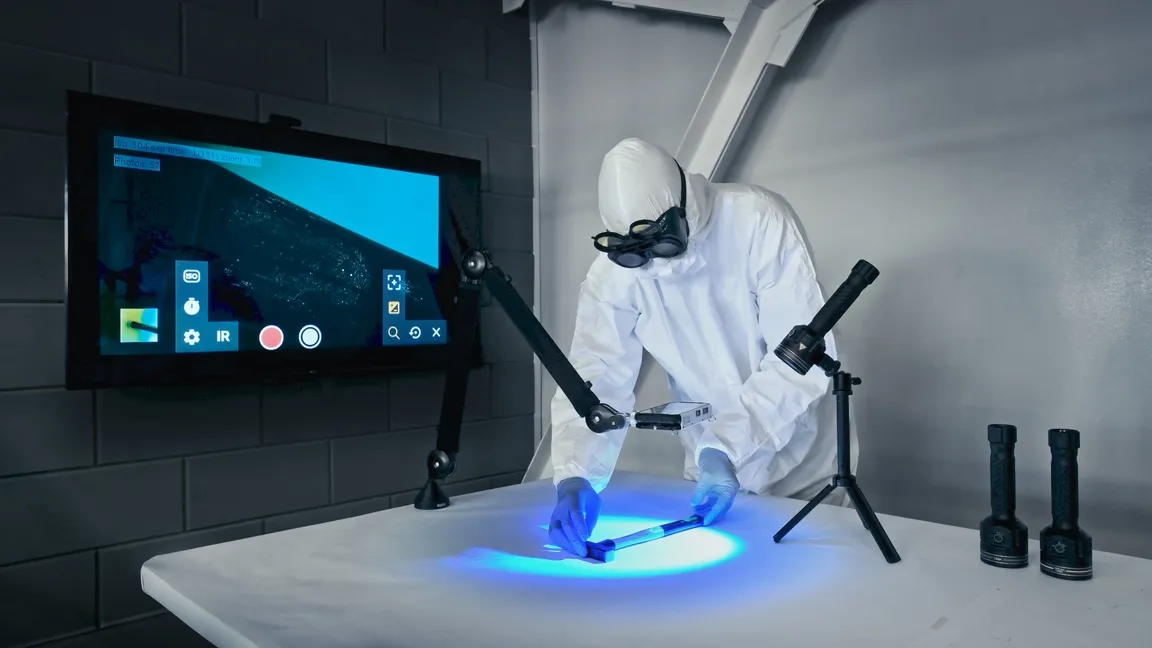

Laboratory Use

In the laboratory, the Forensic Light Kit adapts for extended, detailed examination. Forensic lights and the capture device can be mounted on a tripod, boom arm, or pantograph for stable and repeatable illumination over the bench. The forensic lights can operate on AC power or provide more than 4 hours of continuous work with Li-ion rechargeable batteries, ensuring flexibility in different conditions. Evidence from the scene—small, fragile, or complex—can be studied under controlled conditions while selecting the required light and filters without disturbing samples. The system integrates with Regula Forensic Studio, enabling instant processing of captured images, precise measurements, annotations, side-by-side comparisons, and automatic report generation. This configuration ensures that raw evidence is transformed into structured, court-ready results directly from the lab.

Key Advantages of the Forensic Light Kit

Safety for the Expert

For the safety of the expert, the kit includes viewing goggles with light filters for visual observation of blue light fluorescence, as well as working with ultraviolet light. Plus, a special shutter blocks the lateral flow of light

Mobility

The compact kit is securely packed in a custom case, allowing for convenient transport to any location.

Reliability

The waterproof and shock-resistant housing of the forensic light sources ensures durability. Additionally, the forensic light sources are equipped with long-lasting LED lights.

Stability and Repeatability of Results

The LED light sources maintain consistent intensity, ensuring stable lighting for accurate, repeatable results.

Ease of Use

The forensic light sources are ergonomically designed for comfortable handling, and each light source can be easily mounted on a special arm or a standard tripod.

Forensic light sources

Light sources
White / IR 850 nm	General contrast search, general shoeprints & dust marks, general mixed debris / Traces of bloodstains and gunshot residue
UV 365 nm	Body fluids, bone and tooth fragments, hair, fibres, general mixed debris, some drug residues, treated fingerprints, accelerants
Blue 450 nm	Body fluids, bone & tooth fragments, fibres, hair, accelerants, treated fingerprints
Other parameters
LED power (depending on the forensic light source), W	6... 15
Time of continuous operation, hours, min	4
Type and number of power supply elements	Li-Ion 26650, 2 pcs.
Level of protection	IP65
Device dimensions, mm, max	210×65×65
Device weight (without batteries), kg, max	0.45
Rated current consumption, А, max	2.2

Imaging device

Camera
Main (visible spectrum)	64 Mp, filters: 420 nm, 490 nm, 550 nm
Infrared	8 Mp, filters: 660 nm, 710 nm
Screen
Diagonal, inch	6.6
Resolution, pixels	2408×1080
Other parameters
Built-in memory, GB	256
Battery, mAh	11000 (supports fast charging)
Data transmission	Wi-Fi, Bluetooth, mobile internet
Level of protection	IP68
Overall dimensions, mm, not more than	172×86×27.4
Weight, kg, not more than	0.65

Viewing goggles

Filters

420 nm, 490 nm

Forensic light kit

Dimensions of the kit in the case, mm, not more than	350×465×190
Kit weight, kg, not more than	9.5

Delivery kit

Forensic light sources, 3 pieces
Batteries, 8 pieces
Battery charger
Device for visualizing and capturing
Handle for mounting and carrying
Viewing goggles
Case for transportation and storage
