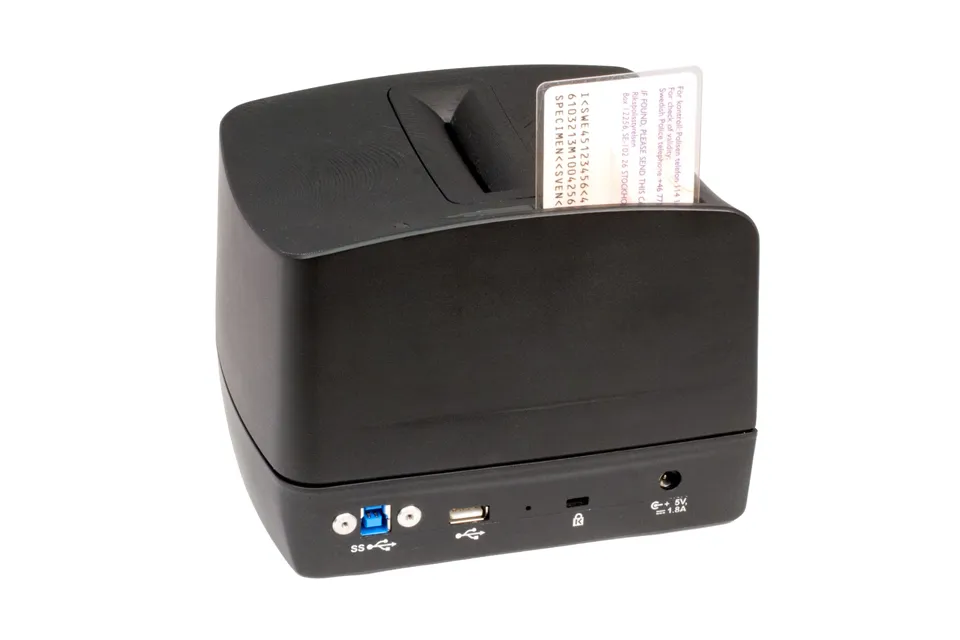

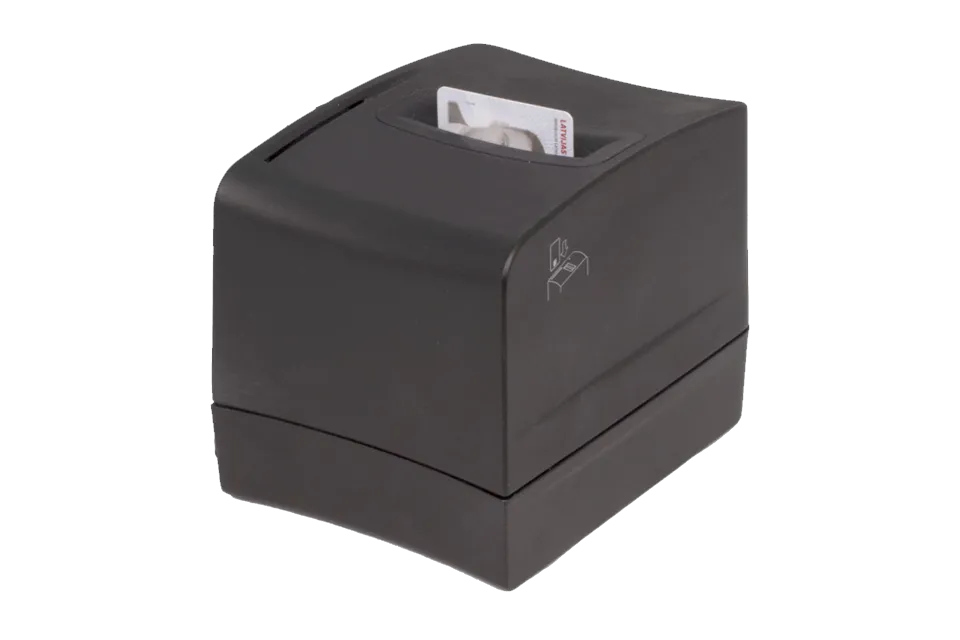

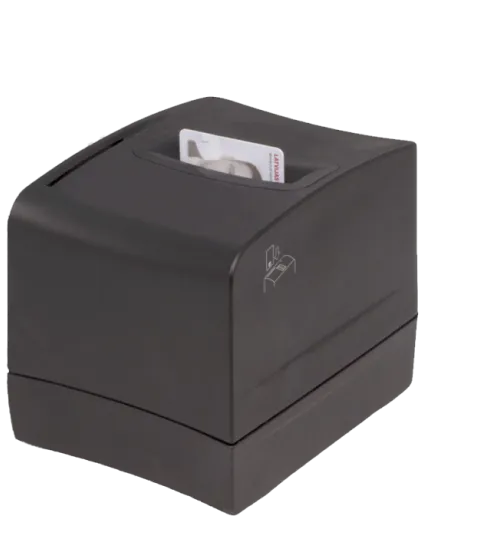

Desktop Reader for ID-1 Document Check

This document reader performs automatic duplex scanning and authenticity verification of ID cards, driver’s licenses, bank cards, social security cards and other documents. It is connected to a PC with the help of a USB-3.0 cable.

The device captures images of documents in white, infrared and ultraviolet lights. Light combinations vary depending on device modification.

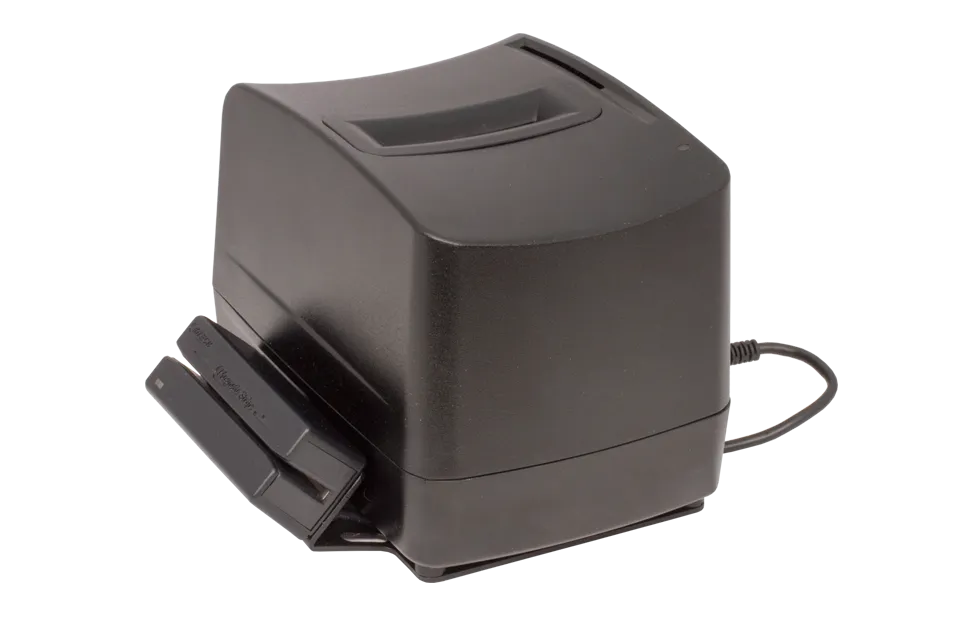

Some modifications of Regula 72X3 are equipped with modules for reading RFID chips, smart cards and magnetic stripes.

The reader is supplied with Regula Document Reader SDK for easy integration into existing end-user system.

Intended Objects for Examination

ID Cards
Bank cards
Driver’s licenses
Social security cards
Residence permits

Examples of Examination

Document examination in different light sources and operation modes

One-Stop Shop for Hardware, Software and Knowledge

Specialized Training

Training courses on document and banknote authentication

Read more

Information Reference Systems

Databases of travel documents, banknotes, driver's licenses and vehicle registration certificates

Read more
ID Card Reader Regula 72X3 models
ID CARD READER REGULA
7203.110
7213.110
7223.110
7233.110
Optical reader
Light sourcesWhite
Infrared 870 nm
Ultraviolet 365 nm
Camera sensor, megapixels5
Image resolution, ppi700 ± 10%
Frame size, pixels2592×1944
Scanning area, mm87×57 – ID card size
Video sensor typeCMOS
Color modelRGB
Color depth, bit24

RFID Reader (details)

Smart Card Reader (details)

Magnetic Stripe Reader (details)optionallyoptionallyoptionallyoptionally

Technical Specifications
Dimensions (L×W×H), mm166×123×125
Weight, kg, max0.8
Power supply from USB port, V5

Certificates
CE

Climatic Сonditions
Relative air humidity35...85% (non-condensing)
Air temperature, °C+10...+35
IP ratingIP20

RFID Reader
Standards supportedISO 14443: type А and В
Data exchange rate, Kbaud106, 212, 424, 848
RFID tag positioningRFID reading regardless of tag position in the document
Anti-collisionreading an RFID tag according to the MRZ

Smart Card Reader
Standards supportedISO/IEC 7816-1, -2, -3, -4; EMV2000 4.1, Level 1
Data exchange rate, Kbaud2–500
Smart card typeasynchronous, Т = 0 and Т = 1

Magnetic Stripe Reader
Magnetic stripe thickness, mm, max1.37
Scanning speed, m/s0.13–1.27
Number of readable tracks3

Full Specification Regula 72X3

Download

Regula Document Reader SDK

Download
Duplex scanning of documents. The front and back of an identity card in white, infrared, ultraviolet lights
Text data comparison of an identity card
