Forensic, Dactyloscopic and Handwriting Examinations

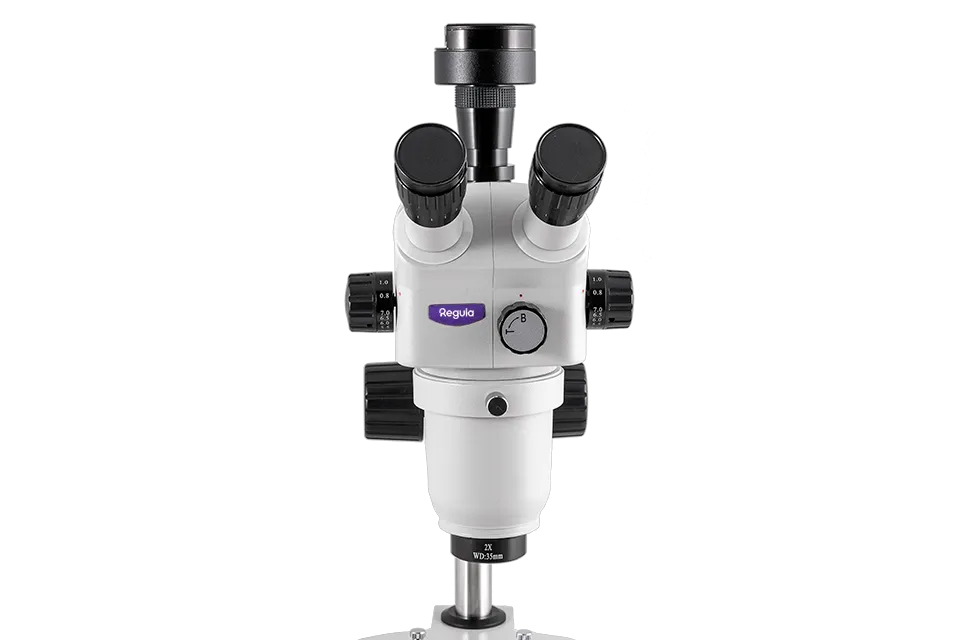

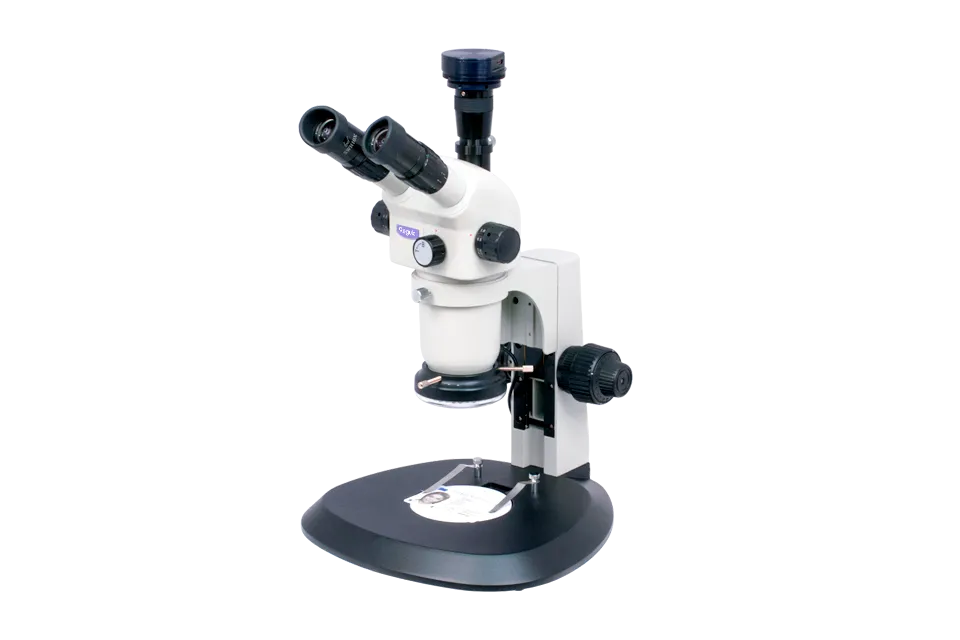

The microscope is based on the Greenough optical system, which can obtain stereo images of examined objects. Such an optical system allows smooth magnification adjustment.

It can be equipped with different complexes of white light with variable intensity control: ring, transmitted and direct (gooseneck).

Switching the modes of operation, focusing and changing the magnification is performed using the controls on the device body.

Regula 5003 can display a zoomed image of the investigated object on the display using Regula Forensic Studio software. The microscope makes it possible to perform additional visual control using eyepieces with 10x or 30x magnification.

Intended Objects for Examination

ID Cards
Passport stamps
Signatures and handwritten notes
Vehicle registration certificates
Driver’s licenses
Revenue stamps

Highlighted Features

Greenough optical system

Obtains stereo images of examined objects with smooth magnification and coarse/fine focus adjustment.

Light complexes

The ring light complex, as well as the optional transmitted and gooseneck light complexes, have variable intensity control.

Wide possibilities

Objects for examination can be displayed on the screen and examined in the mode of live video mode, or the user can perform visual control using eyepieces with 10x or 30x magnification.

Download Brochure

Efficient Solution for a Variety of Sectors

Regula in Security printing industry
Security printing industry
Regula in Border control & immigration services
Border control & immigration services

One-Stop Shop for Hardware, Software and Knowledge

ID verification sdk by Regula

Specialized Training

Training courses on document and banknote authentication

Read more
ID verification sdk by Regula

Information Reference Systems

Databases of travel documents, banknotes, driver's licenses and vehicle registration certificates

Read more


Does not constitute а public offer

Light complexes

Ring white

Transmitted white




Image capture


CMOS, 5 Mp

Frame size

2592×1944 (Full Frame)



0.8x to 14x

With 10x eyepieces

8x to 140x

With 30x eyepieces

24x to 420x

On screen for 30 inch monitor

26x to 1330x

Additional features

Diopter adjustment

±6 dptr

Interpupillary distance

52...76 mm

General parameters


330×310×450 mm


8 kg

Power supply voltage

5-12 V

Delivery set

Regula Forensic Studio software

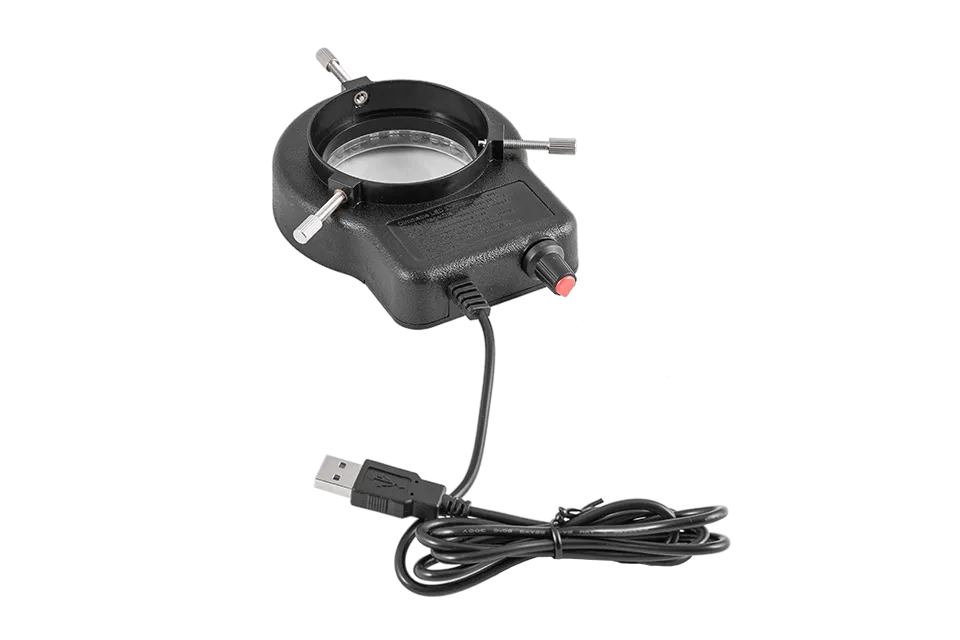

Ring white light complex

Transmitted white light complex

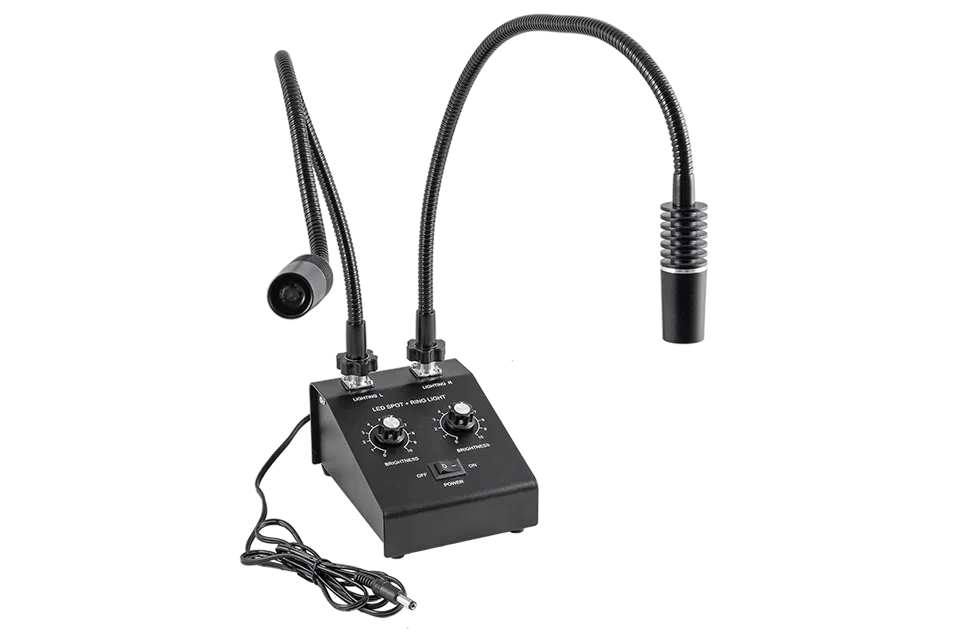

Gooseneck white light complex


Eyepieces: 10x, 30x, 10x with a scale

Objective 2x

USB 3.0 cable, A–micro B

Full Specification Regula 5003
