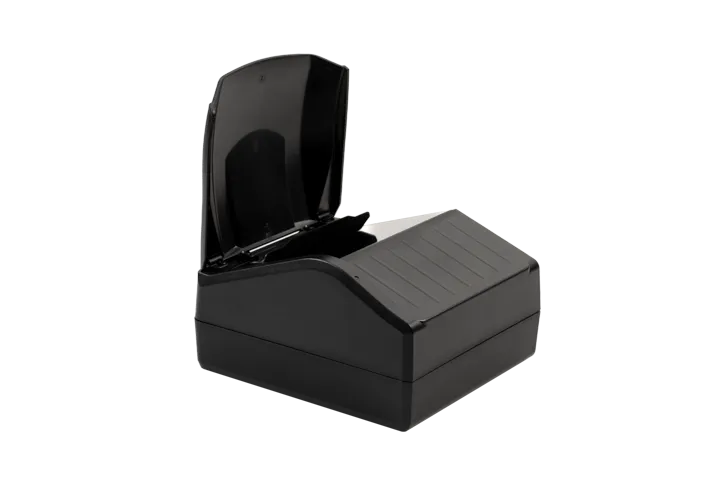

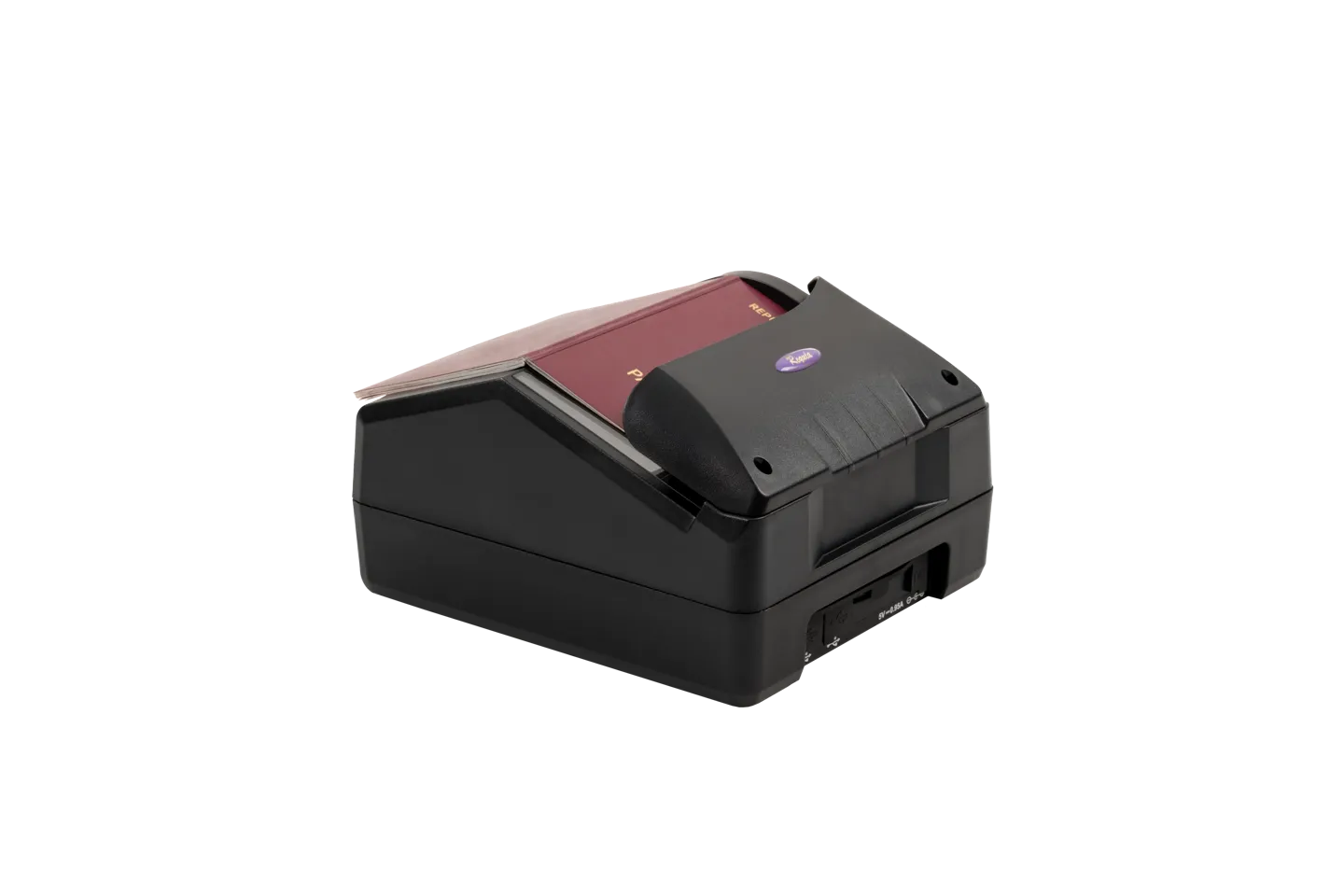

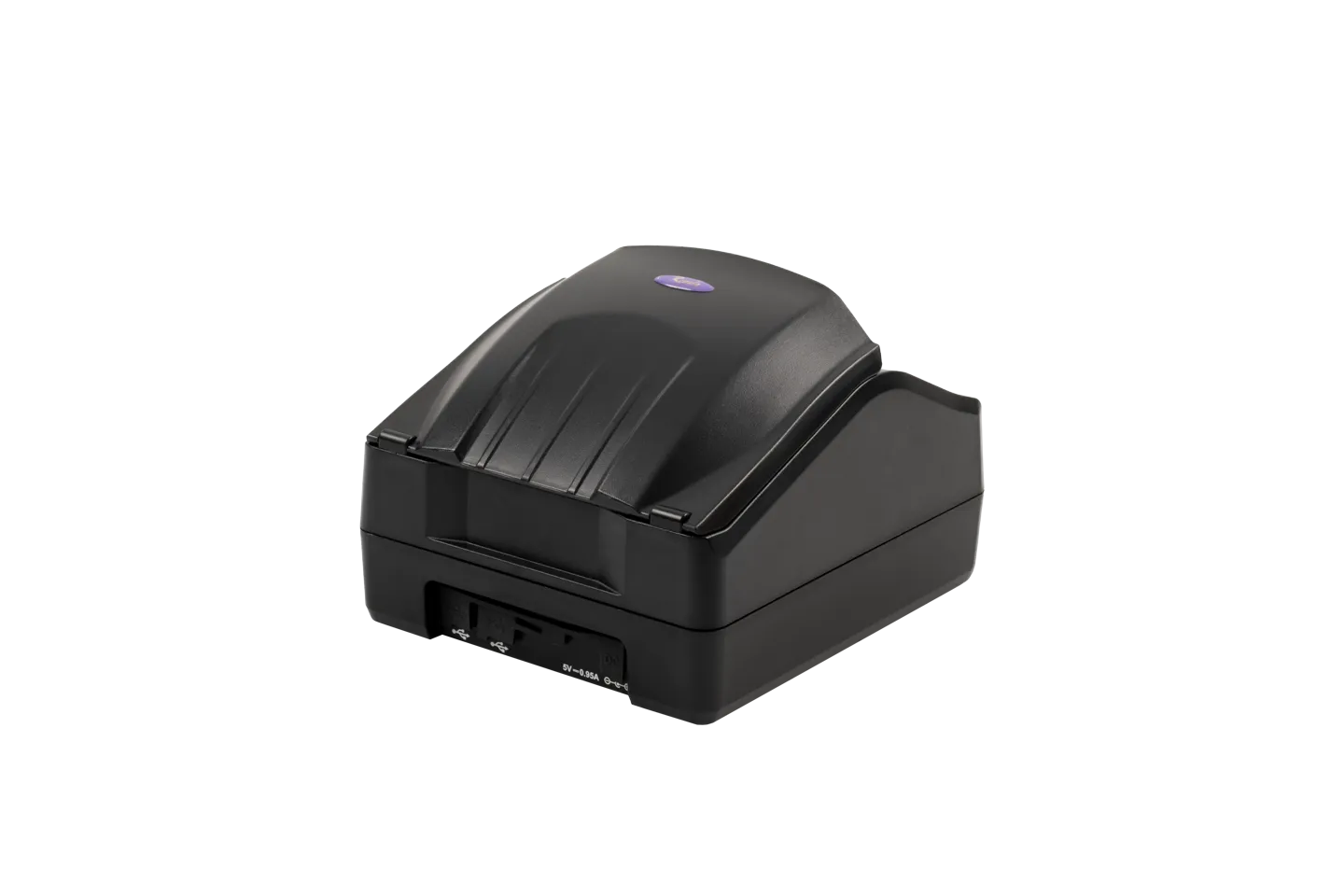

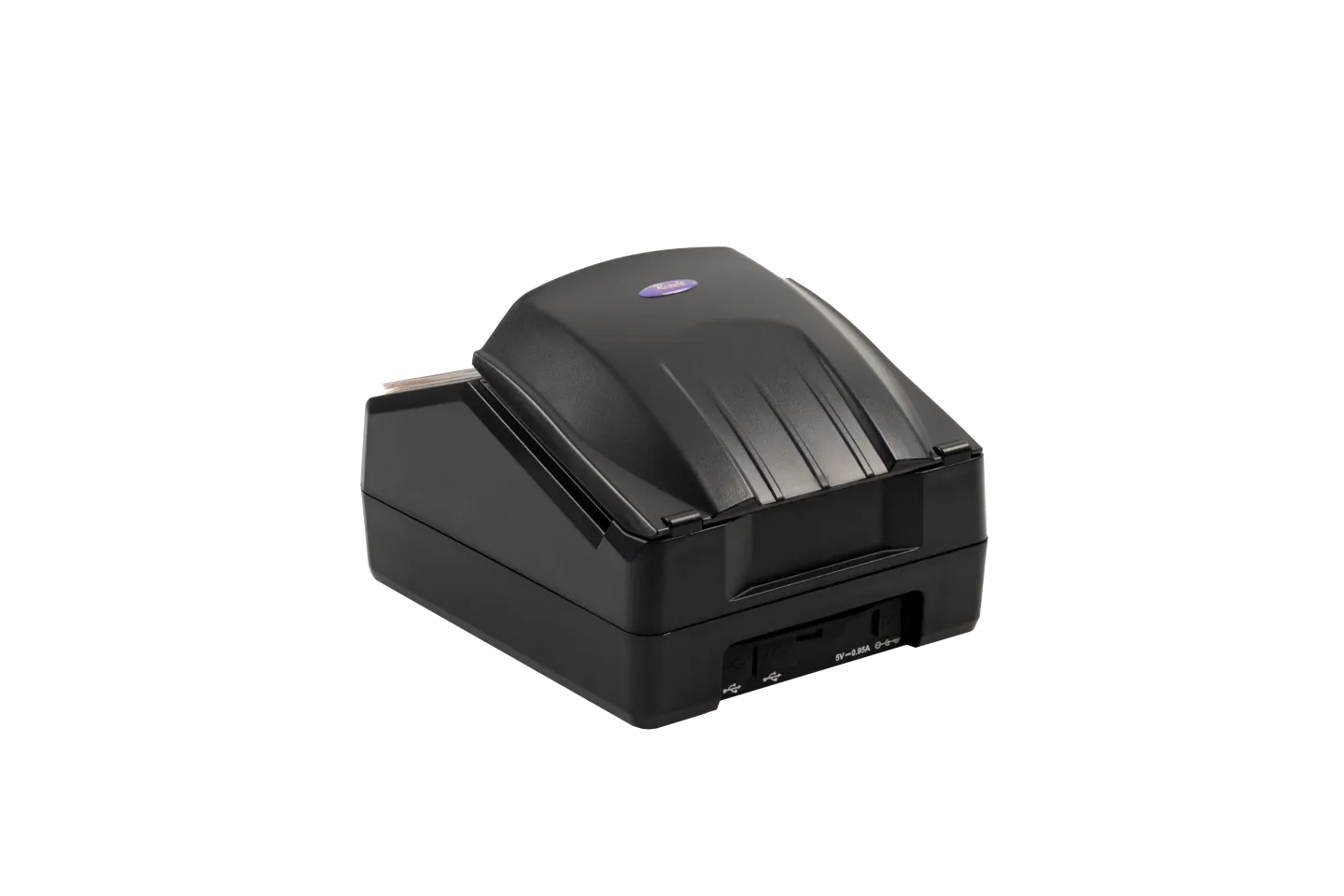

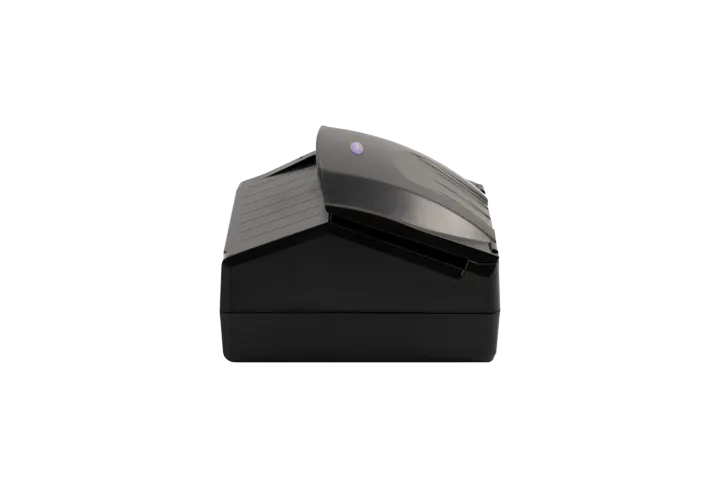

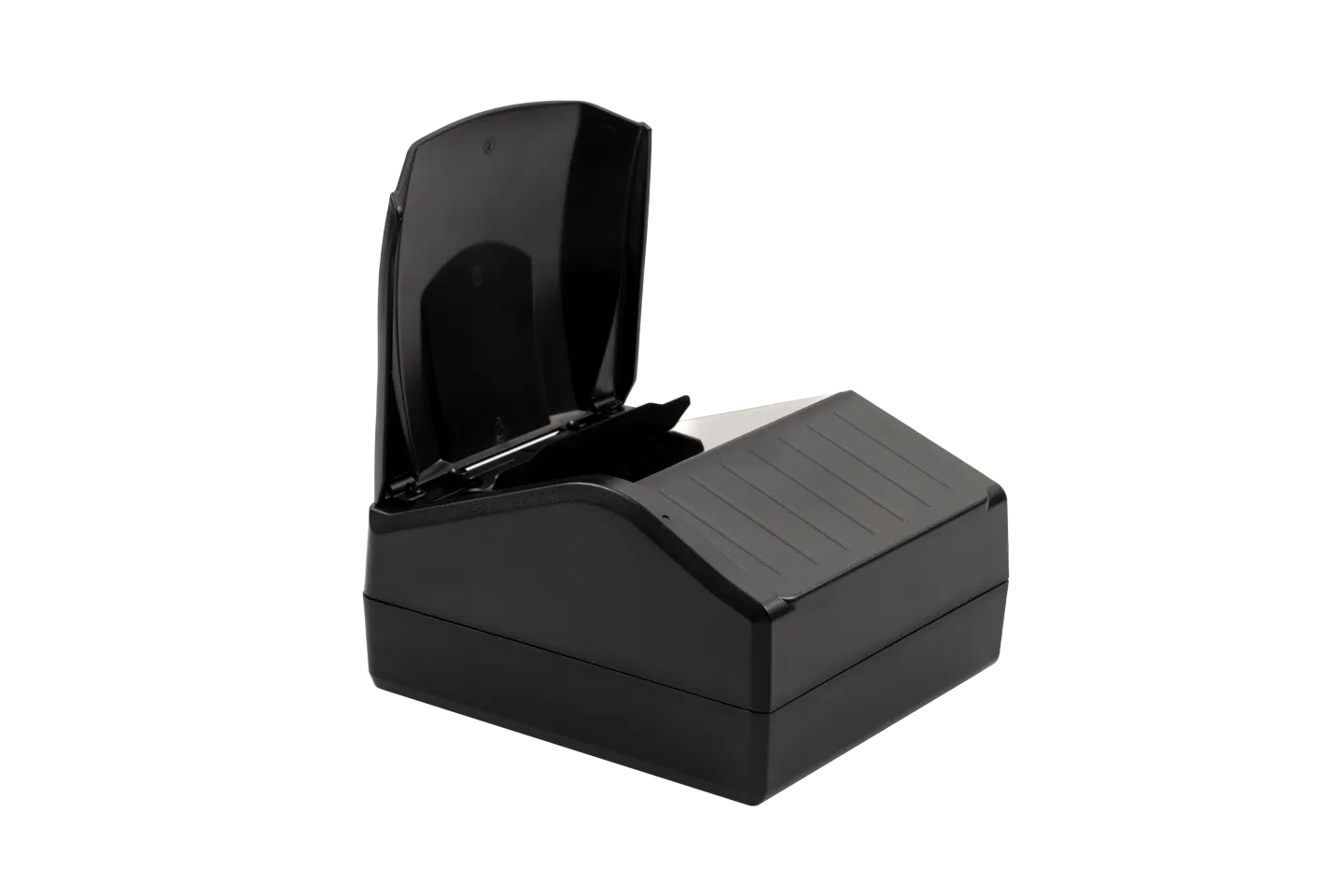

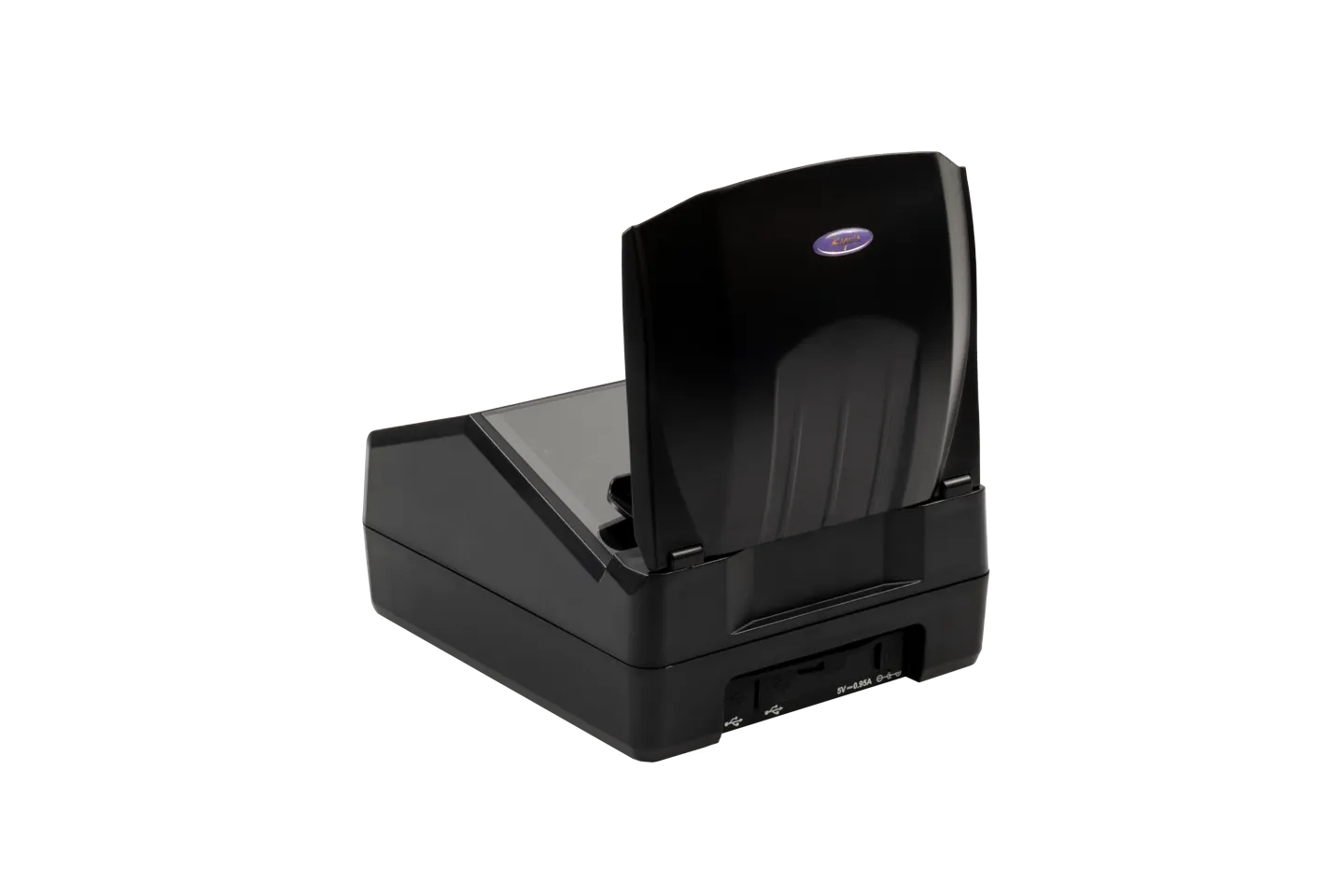

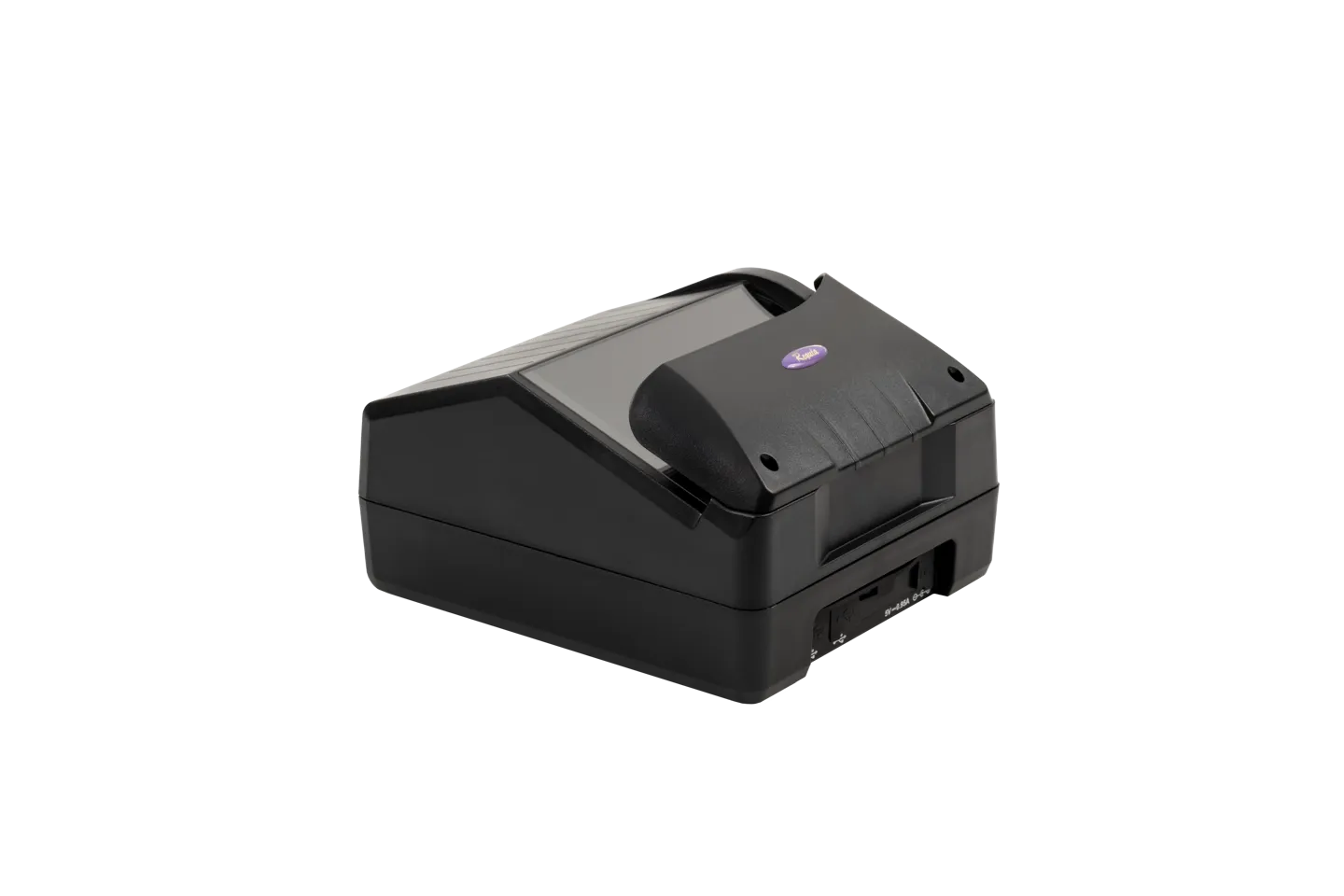

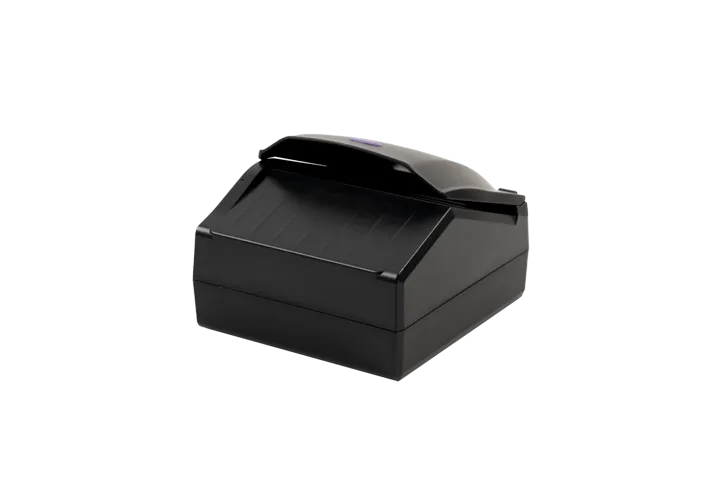

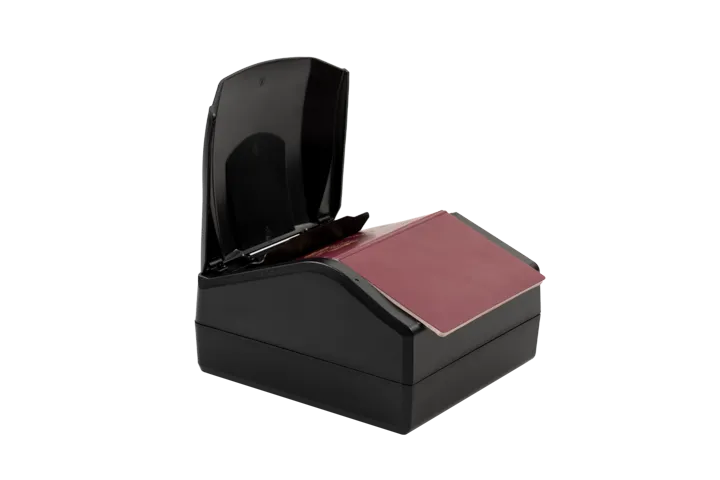

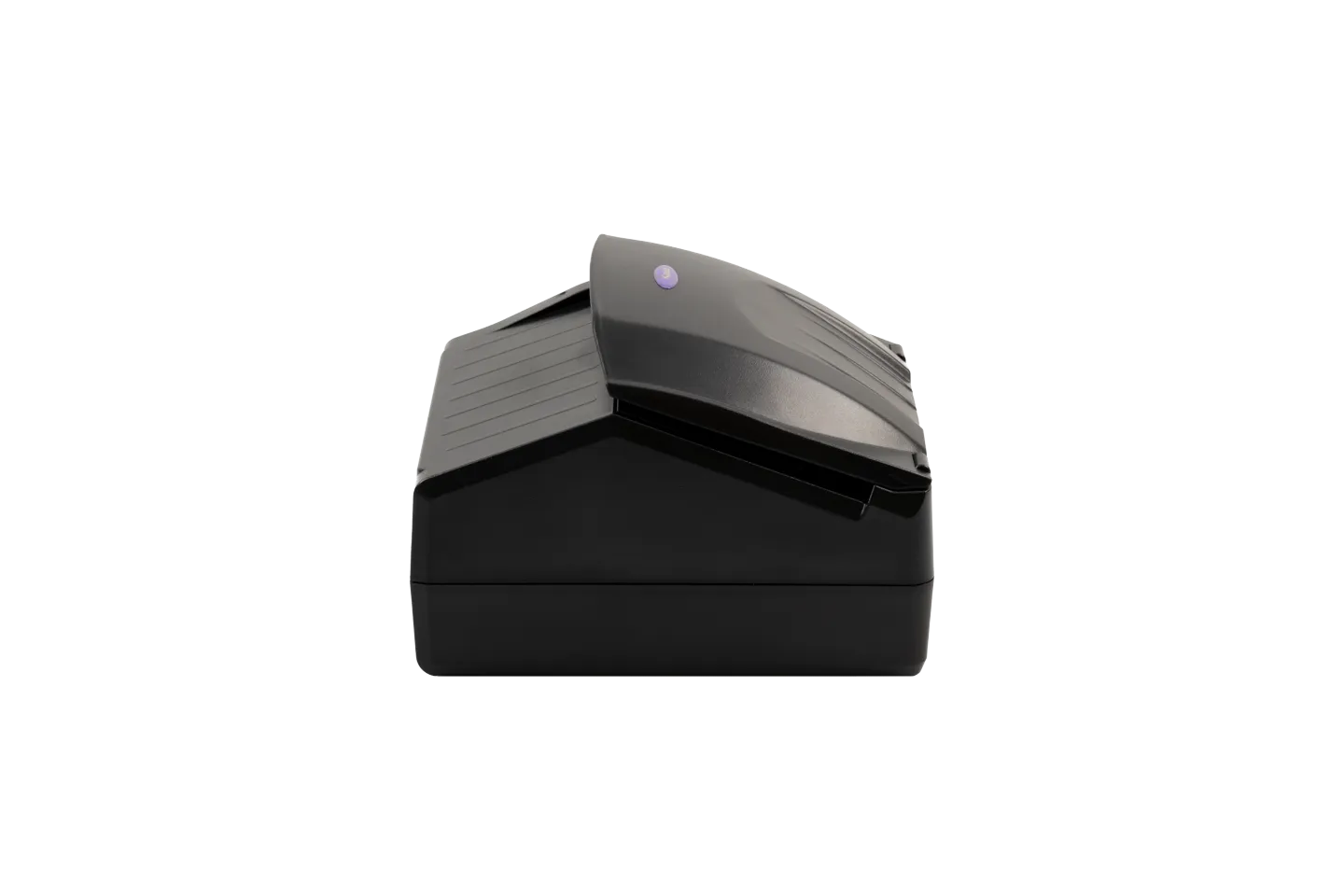

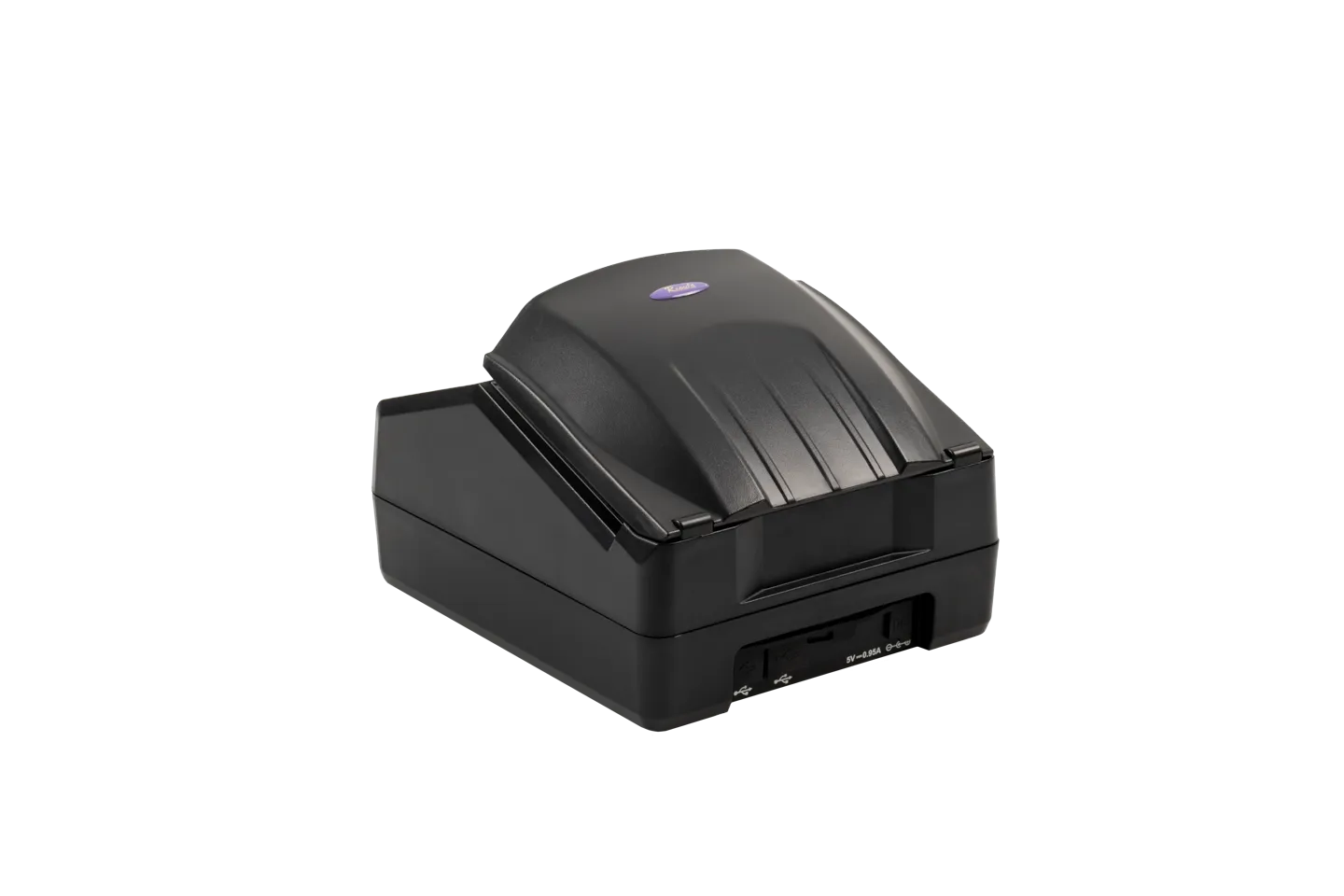

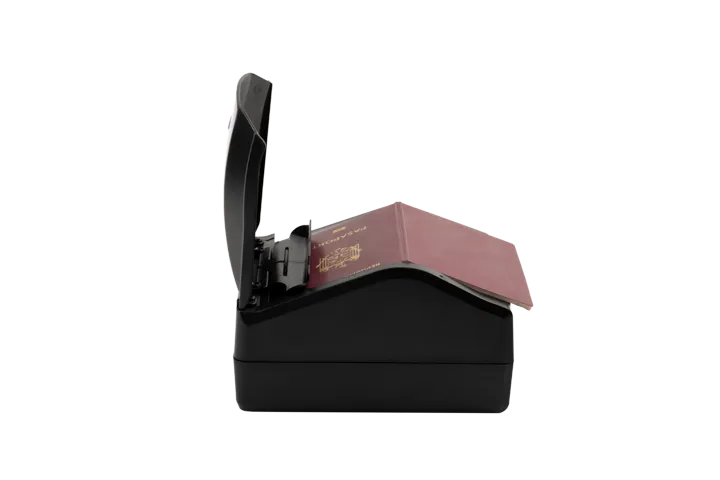

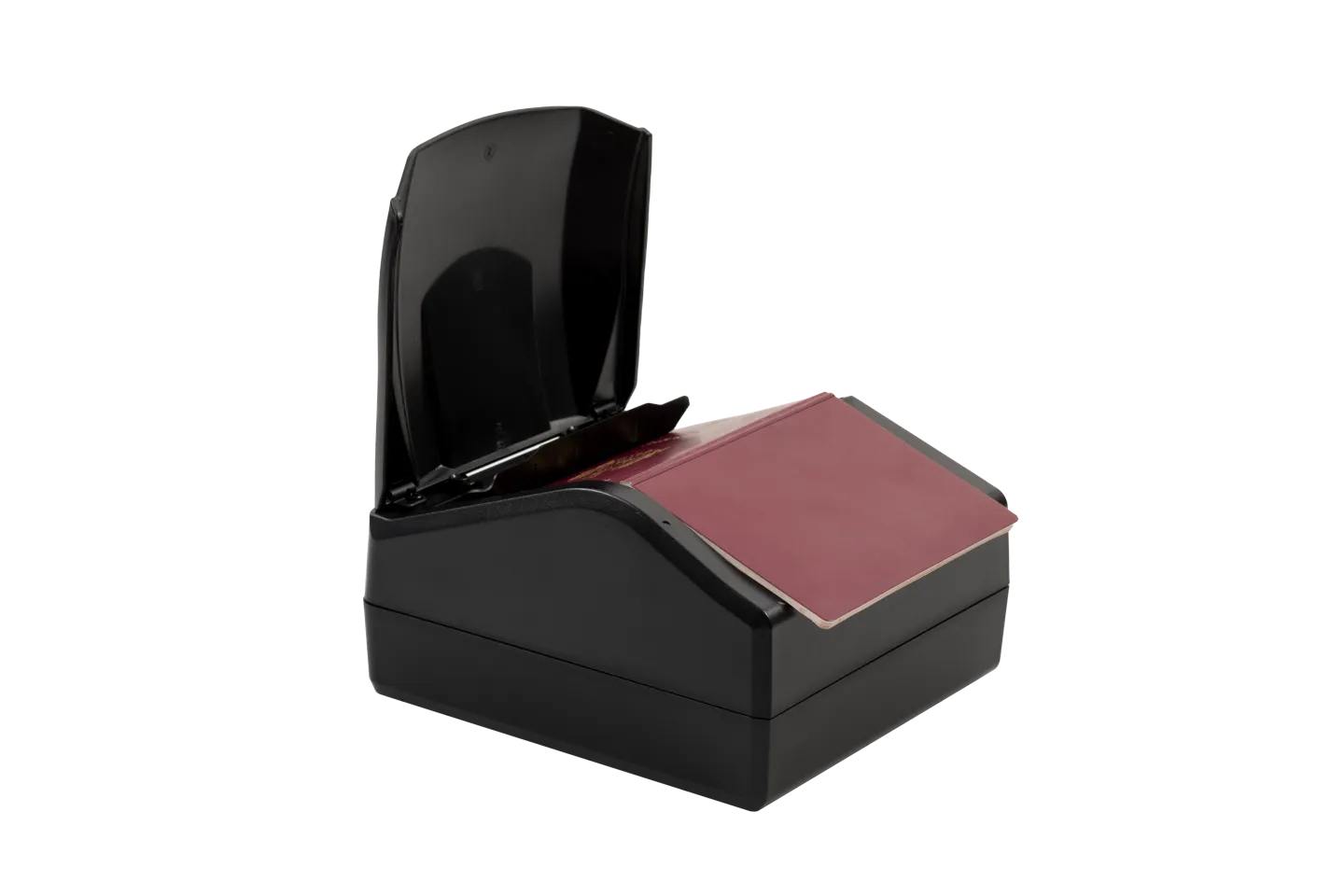

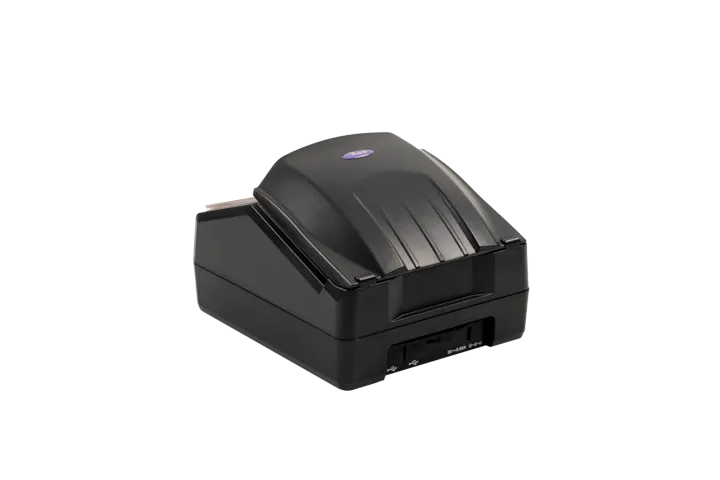

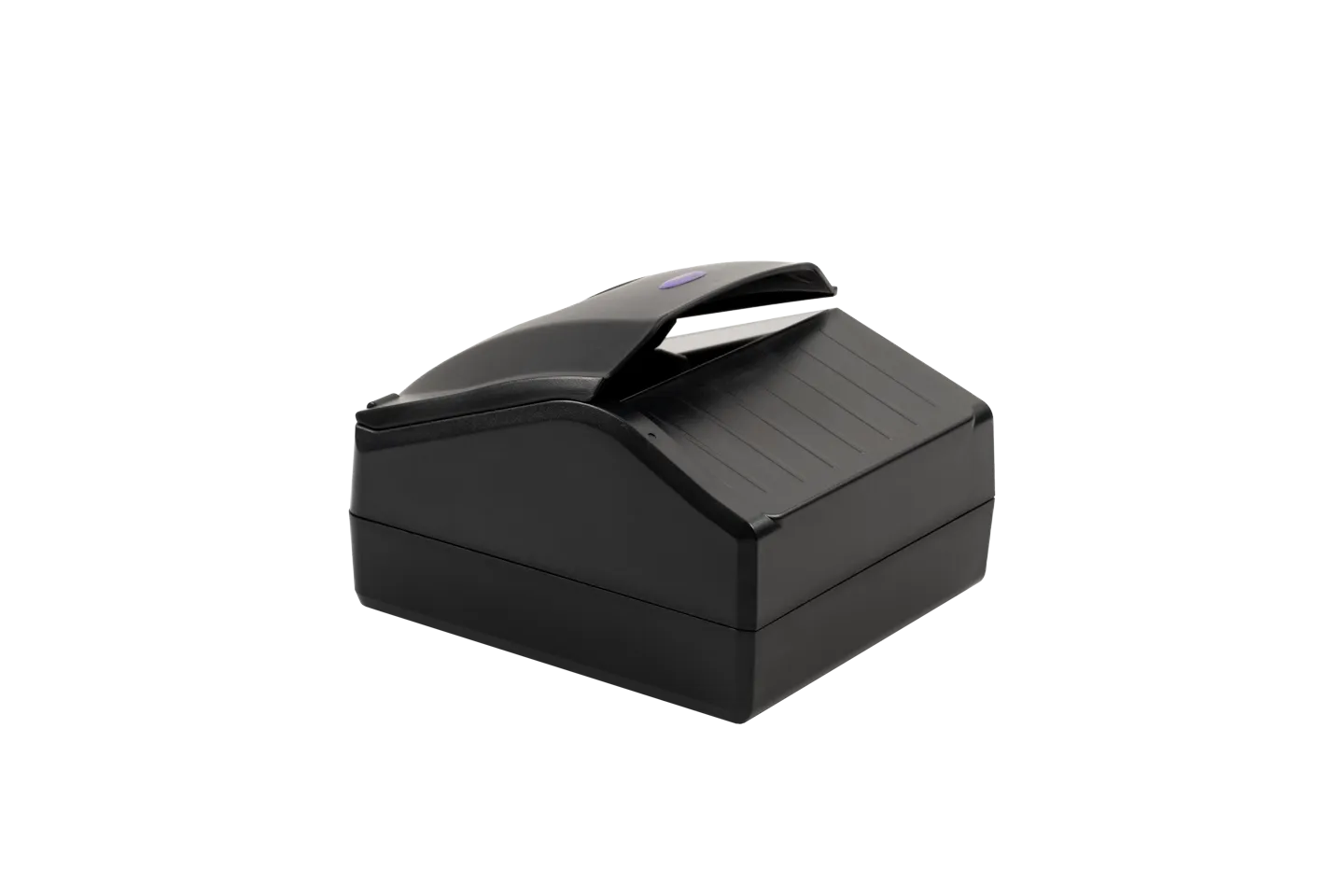

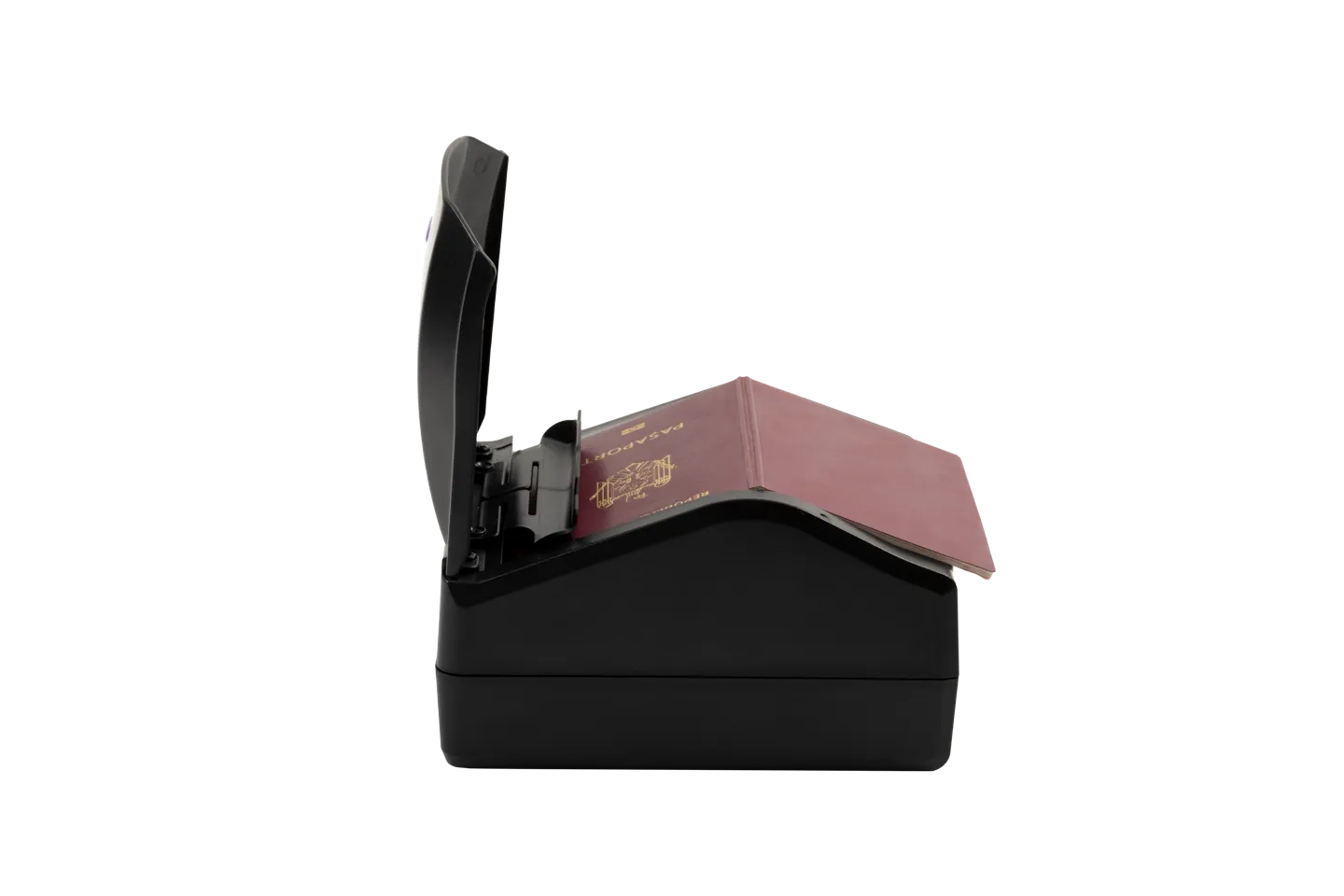

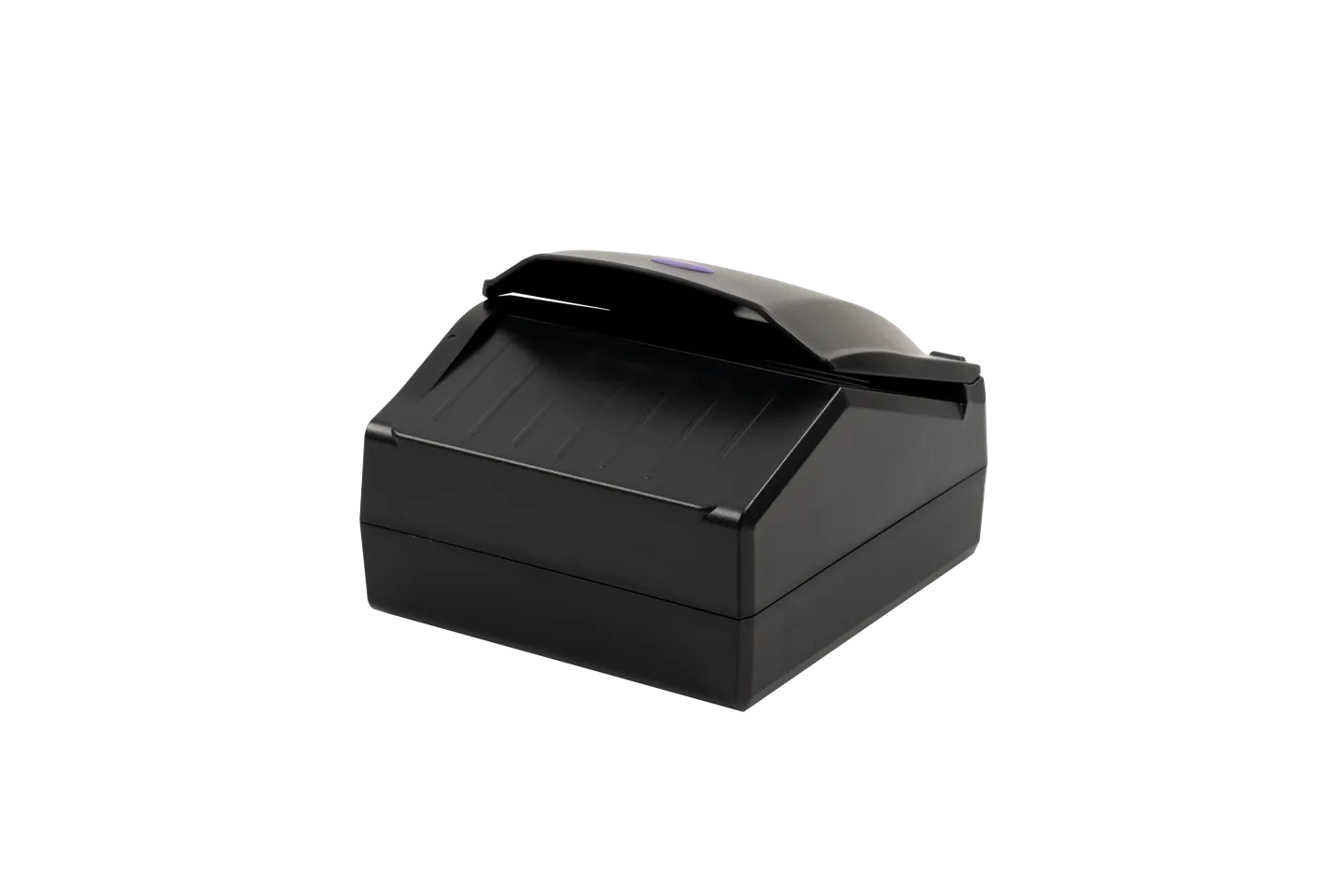

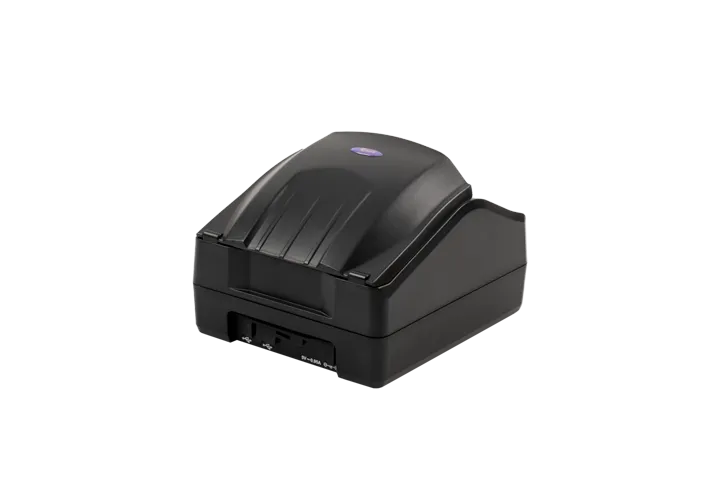

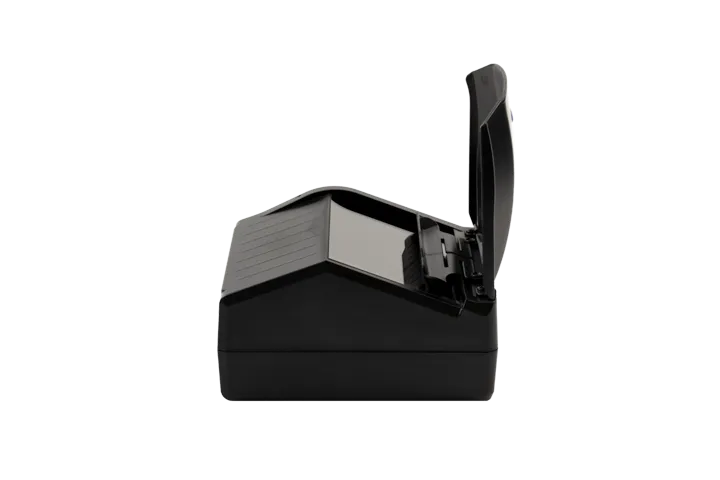

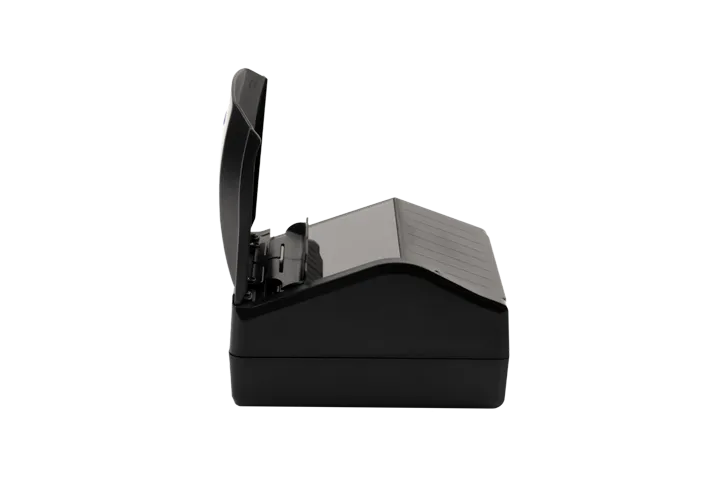

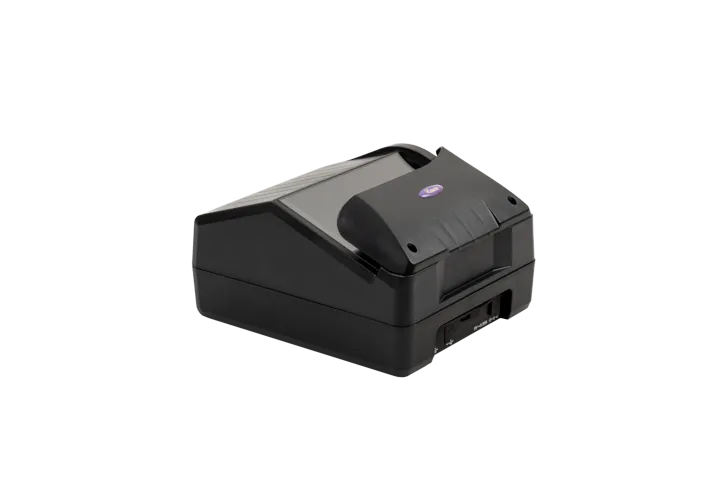

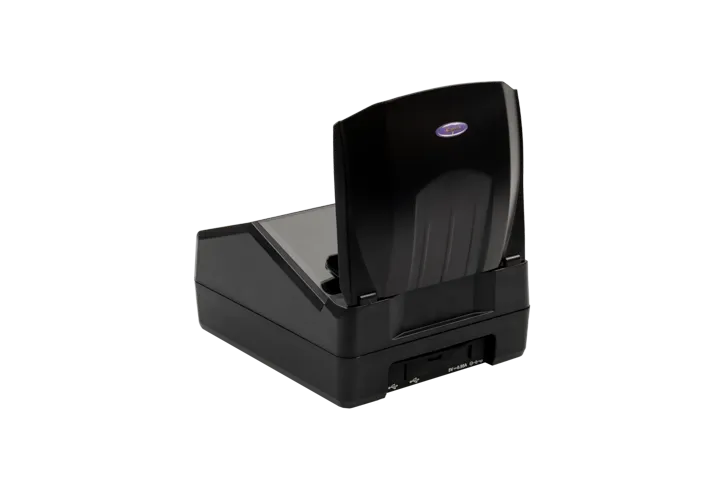

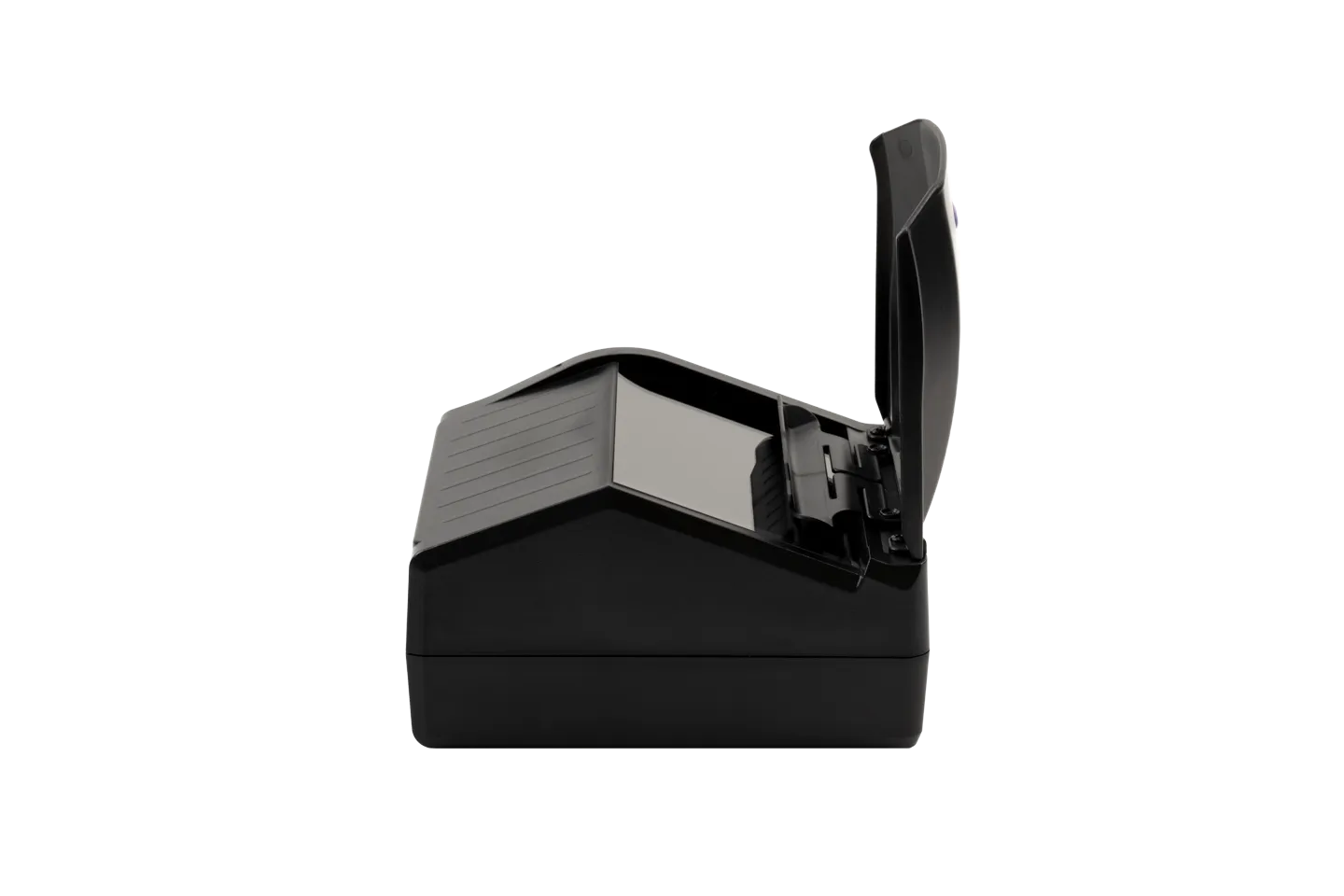

Desktop Document Reader Regula 7024M.111
Regula Document Reader 7024M.111 is a simple, convenient, and functional device, designed to support the day-to-day operations of border controls, banks, immigration services and other businesses where ID verification is essential. Its ergonomic design enables seamless, automatic authenticity checks.
Best choice for:
Border control
Banks and financial services
Car rental
Immigration offices
Travel agencies
Casinos
Features
Type of document
Passports (ID-3)
Visas (ID-2)
Driver’s Licenses
IDs (ID-1)
Light sources
White
IR 870 nm
UV 365 nm
Coaxial white
Camera properties
5 MP: resolution 470 ppi
Award-winning Document Reader SDK
Allows smooth integration to any system or application
Automatic authenticity verification
Automatically detects document type and performs all security checks
Automated document detection and scanning
Detects document and starts scanning without operator involvement
E-document verification
RFID chip reading in biometric passports
Barcode reading
1D, 2D from documents and screens of mobile devices
MRZ reading
Detection and recognition
OCR
Verification of the visual inspection zone
Elimination of glare
Examination of laminated documents and holograms in white and IR light
Smart UV
Compensates for external light interference during UV image capture
Status indicator
Multicolor LED indicator for device status: red, yellow, green
Supported standards
ICAO 9303
ISO 14443
BSI TR-03105 Part 5.1
ISO 7501, 1831, 1073-2
ISO IEC 18013 (IDL)-03105 Part 5.1

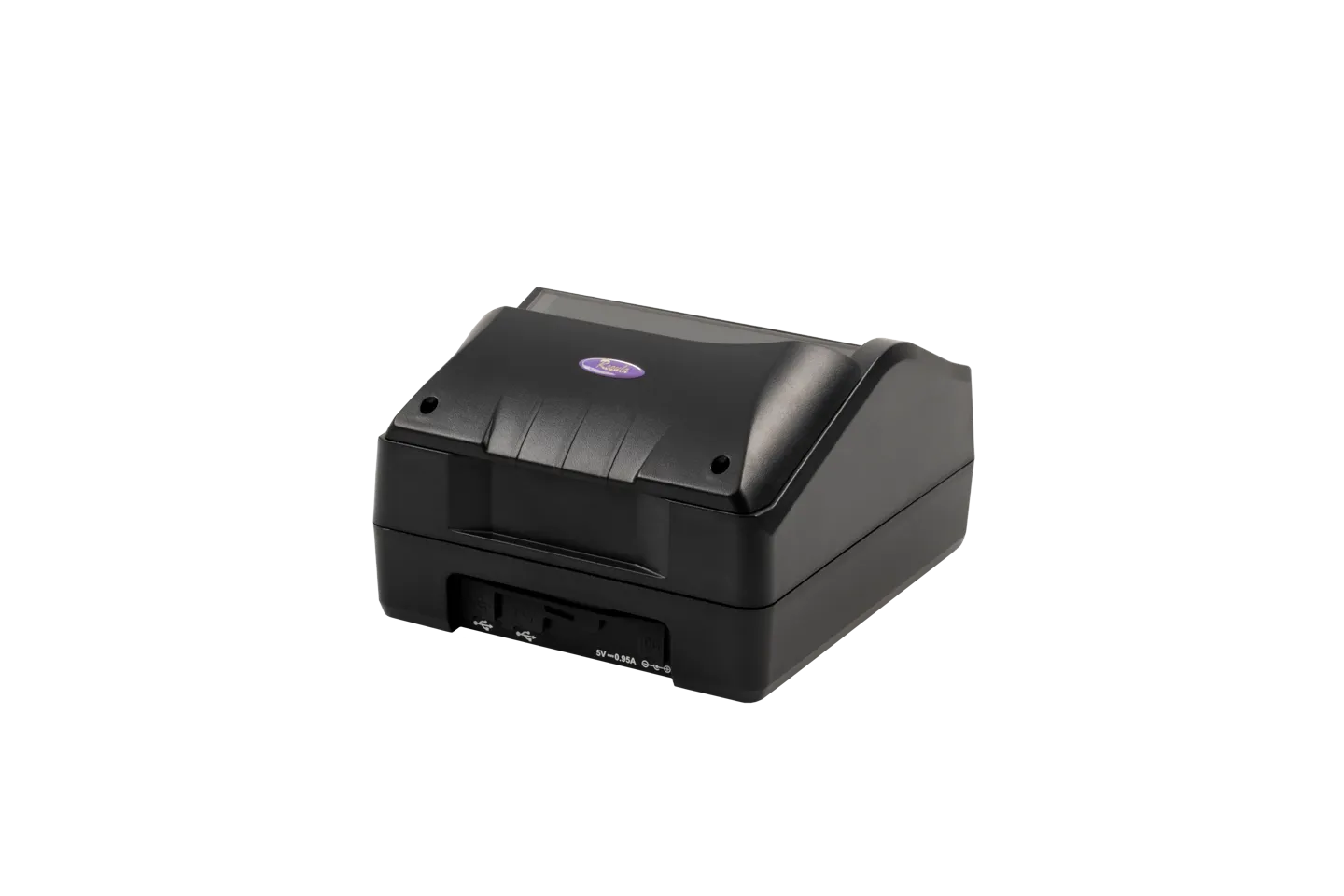

Connection to PC
USB-port for easy cable connection
Dimensions
179×160×99 mm (L×W×H)
Interchangeable covers
Supplied with two covers—for normal and extreme light conditions
Full technical specification
Download
