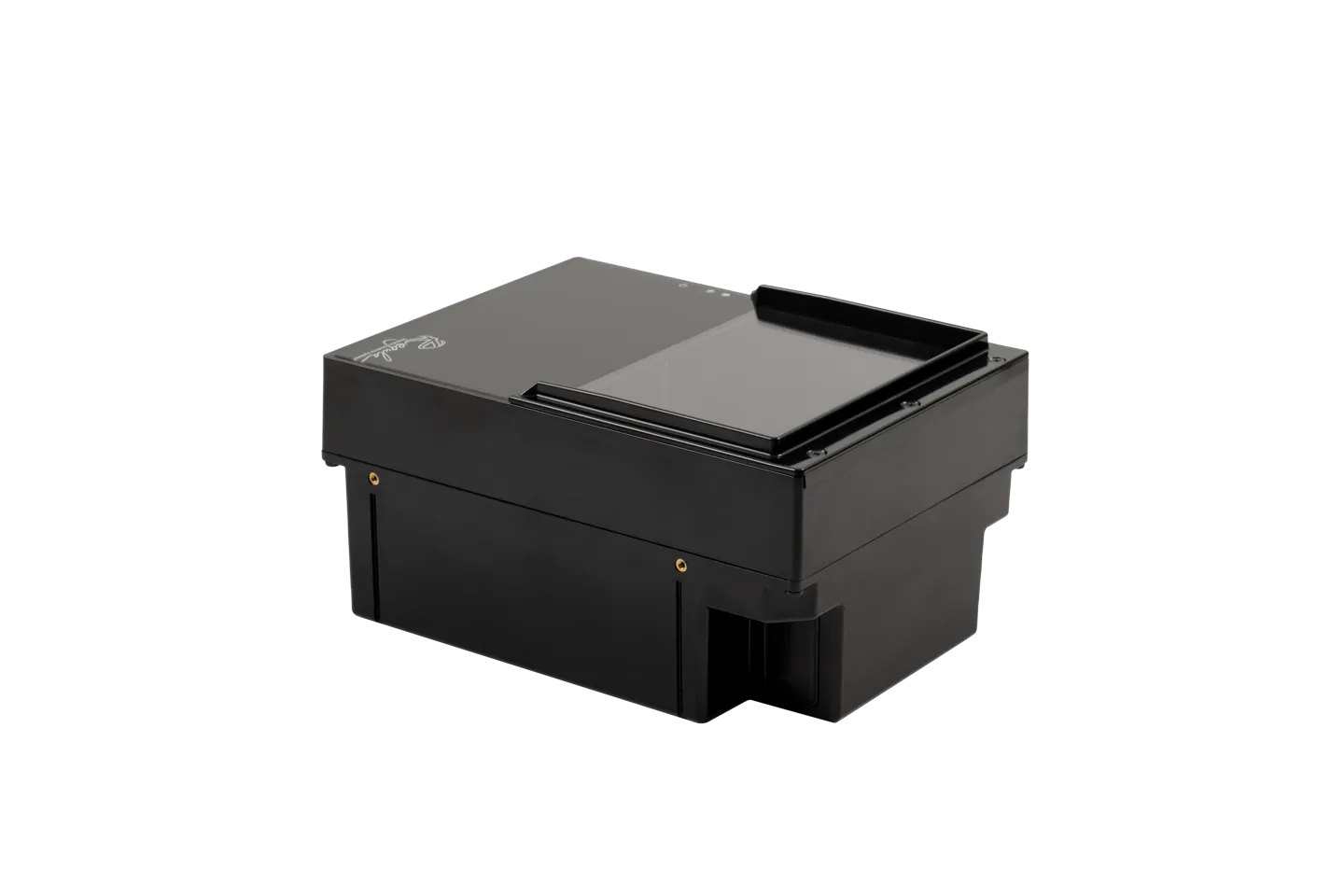

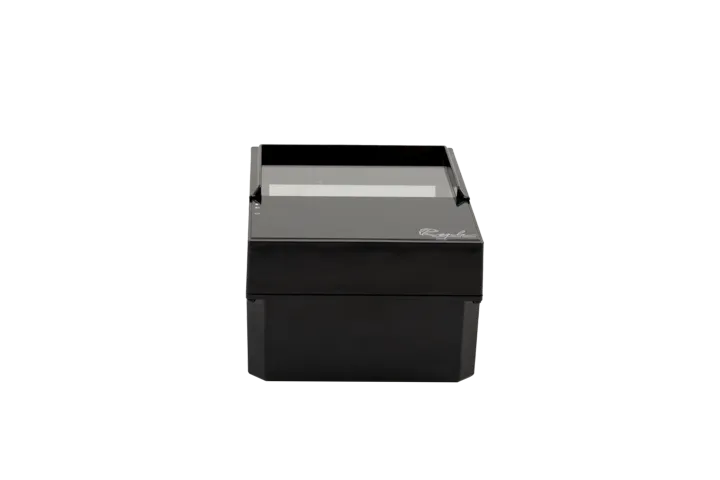

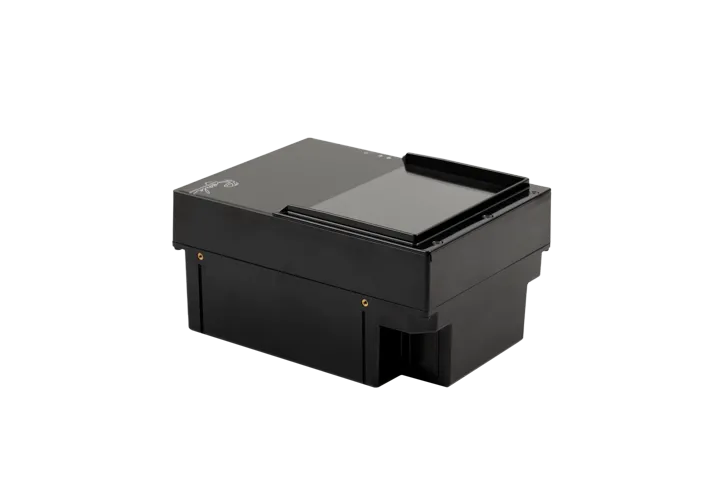

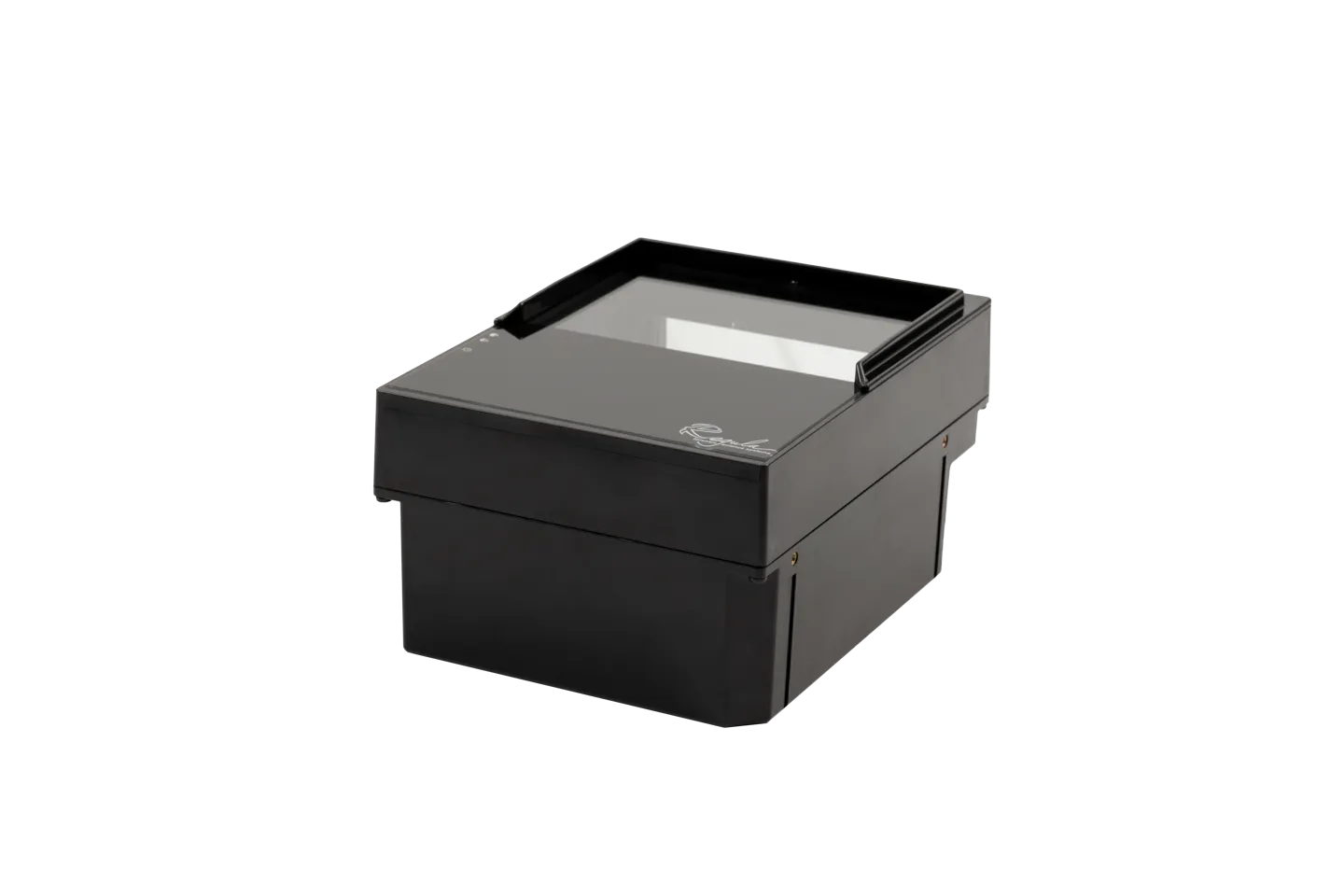

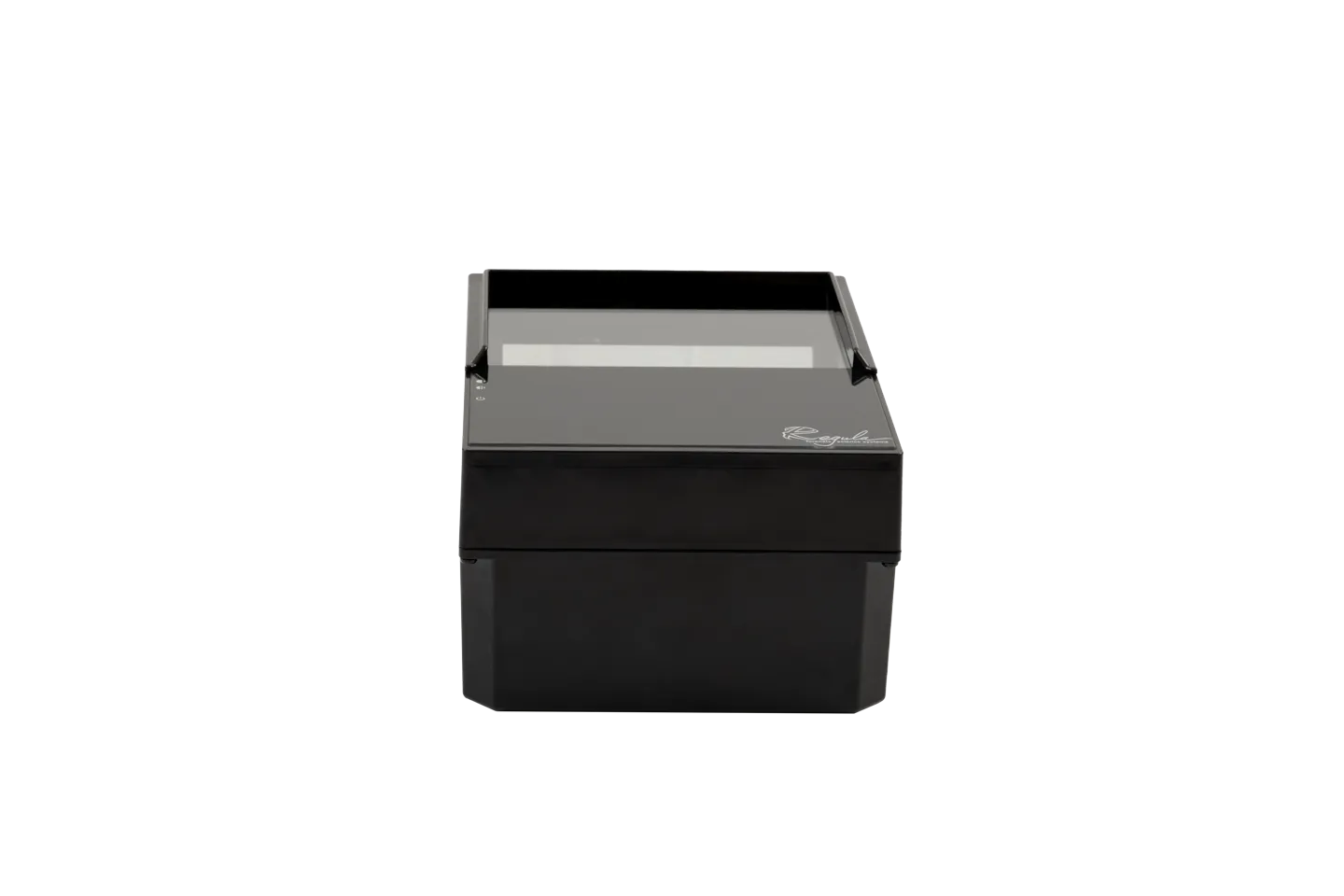

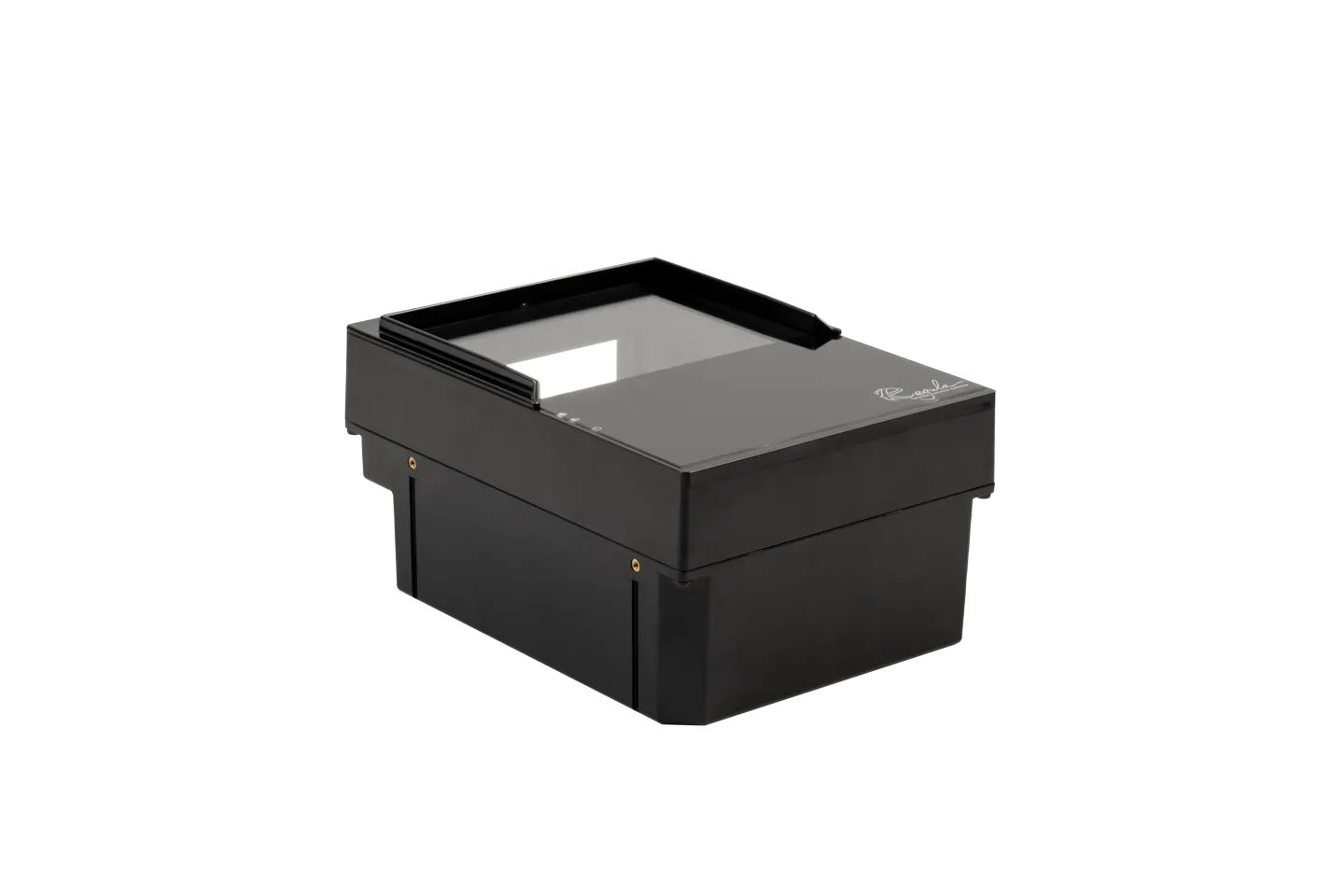

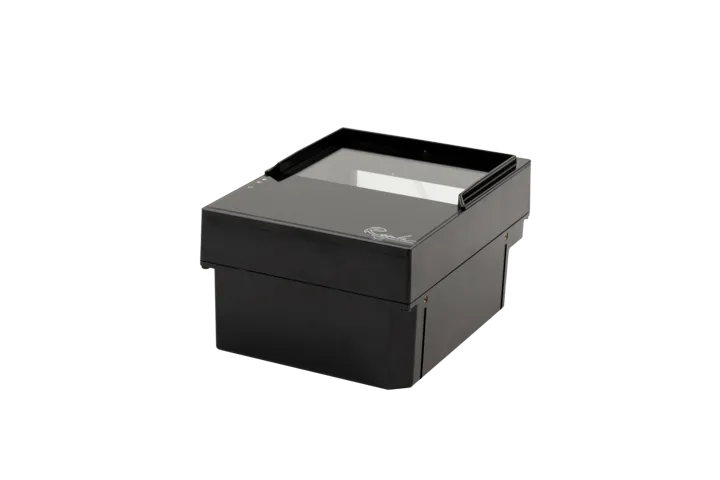

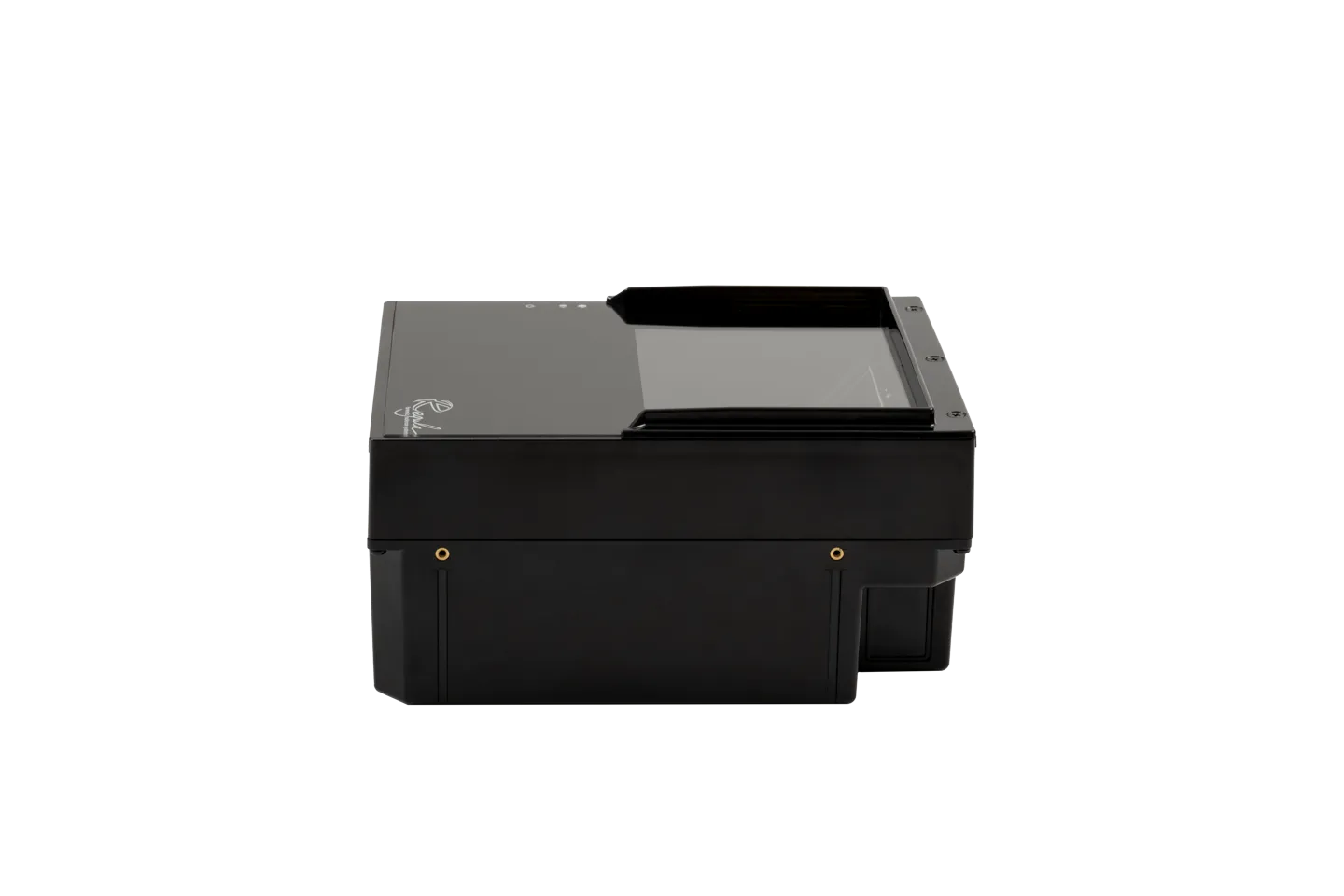

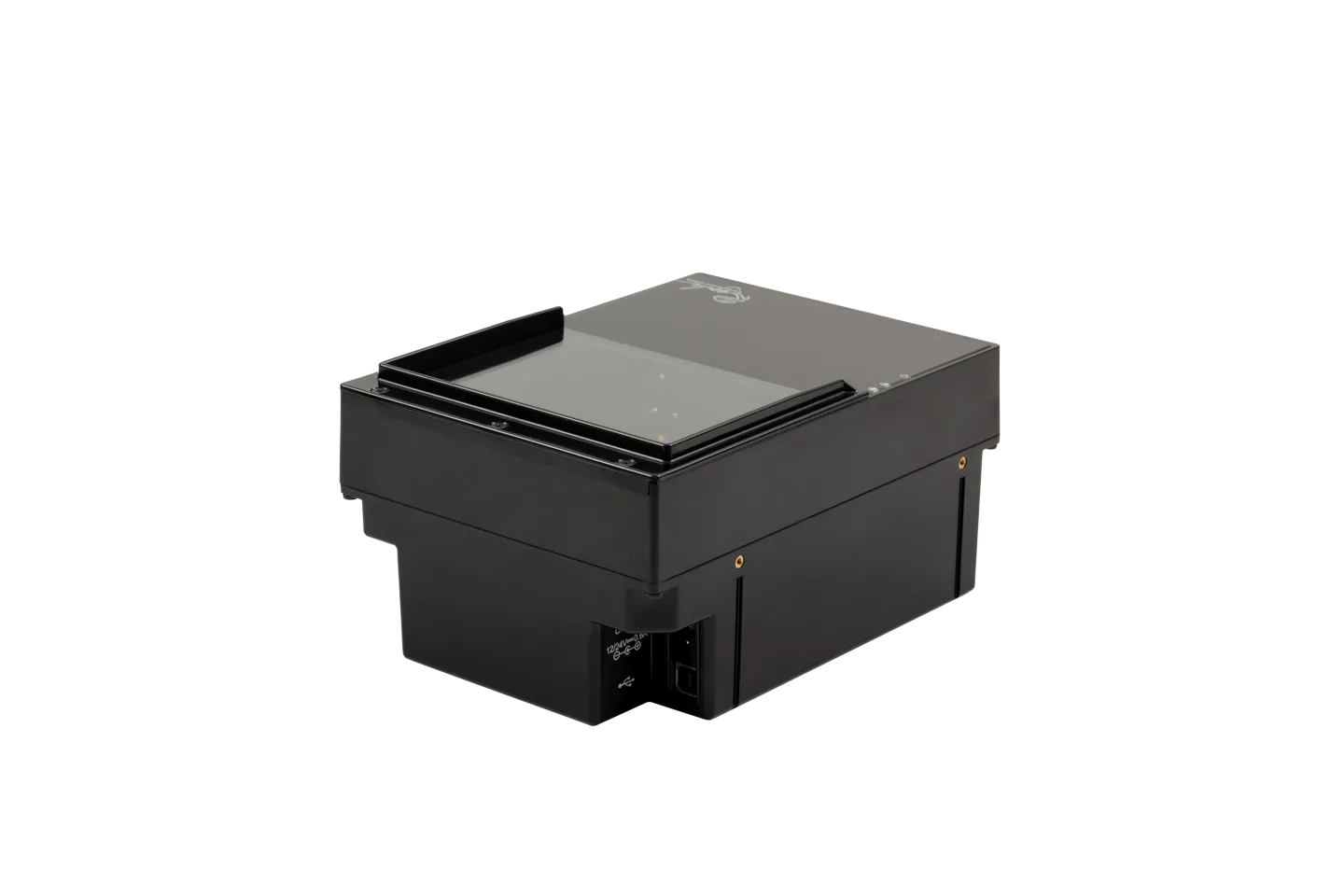

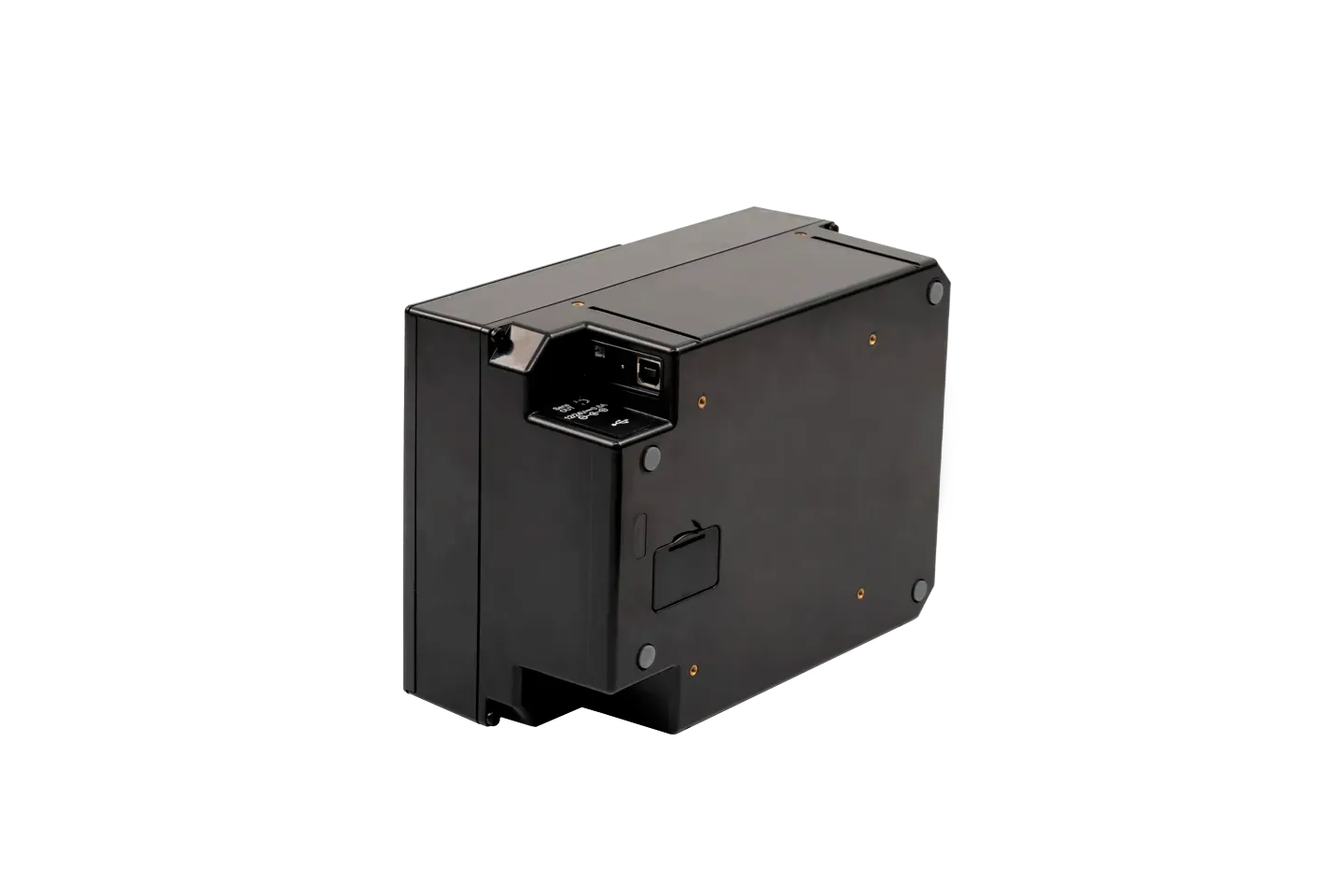

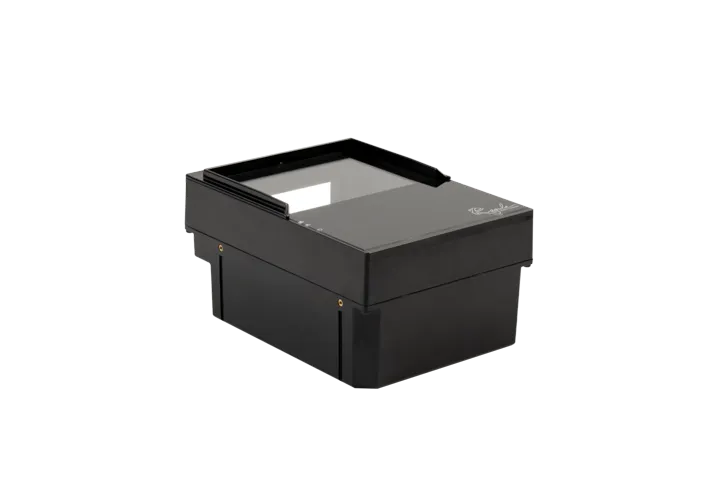

Embedded Document Reader Regula 7028M.110
The embedded document reader, Regula 7028M.110, is an ideal solution for e-gates and self-service kiosks. Its flat-top design ensures accurate scanning of both identification documents and mobile device screens. By enabling instant self-service registration, Regula 7028M.110 reduces workload at banks, airports, government offices, and other public organizations, enhancing efficiency and user experience.
Best choice for:
Airports
Border control
Car rental
Features
Type of document
Passports (ID-3)
Visas (ID-2)
Driver’s Licenses
IDs (ID-1)
Light sources
White
IR 870 nm
UV 365 nm
Сoaxial white
Camera properties
5 MP: resolution 460 ppi
Award-winning Document Reader SDK
Allows smooth integration to any system or application
Automatic authenticity verification
Automatically detects document type and performs all security checks
Automated document detection and scanning
Detects document and starts scanning without operator involvement
DTC reading
Verifies ICAO’s Digital Travel Credentials (DTCs)
Barcode reading
1D, 2D from documents and screens of mobile devices
MRZ reading
Detection and recognition
OCR
Verification of the visual inspection zone
Elimination of glare
Examination of laminated documents and holograms in white and IR light
Smart UV
Compensates for external light interference during UV image capture
Supported standards
ICAO 9303
ISO 14443
BSI TR-03105 Part 5.1
ISO 7501, 1831, 1073-2
Connection to PC
USB-port for easy cable connection
Dimensions
200×150×96 mm (L×W×H)
