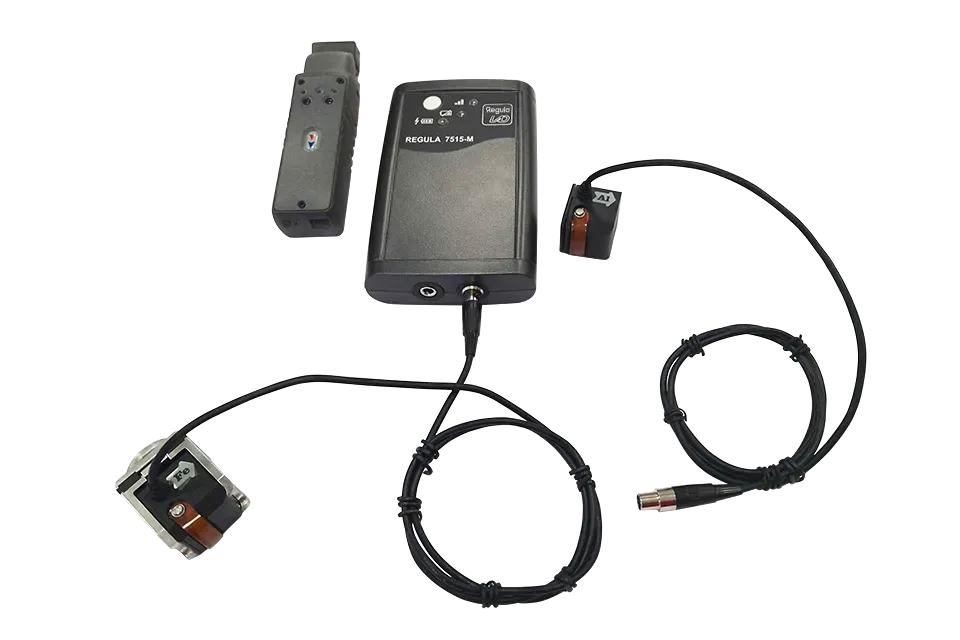

Eddy-Current Magnetographing Device Regula 7515M
To Boost Functionality of Regula 7505M
Intended Objects for Examination
Highlighted Features
Nondestructive examination
Visualization of the relief and structural inhomogeneity of metal surfaces with magnetic properties without removing the lacquer and paint coating.
Advanced examinations
Possibility to examine weak signals such as residual stress in surface layers of ferromagnetic and nonferromagnetic objects.
Examples of Examination
Efficient Solution for a Variety of Sectors
Specifications
Does not constitute а public offer
General parameters
Examined object material
ferromagnetic, nonferromagnetic
Width of the scanning area
max 20 mm
Magnetic field intensity on the surface of the scanner conductor
30–35 kA/m
Dimensions
- scanners — 30×45×70 mm
- controller — 160×100×30 mm
- charging unit — 100×80×30 mm
Weight
- scanner for nonferromagnetic materials (Al) — 0.16 kg
- scanner for ferromagnetic materials (Fe) — 0.21 kg
- controller — 0.3 kg
- charging unit — 0.15 kg
Power supply voltage
24 V
Power source
rechargeable batteries
Time of non-stop operation
40 min (≈ 120 copies)
Delivery set
AL-scanner
Fe-scanner
Magnetizing attachment of Fe-scanner
Test-oject #1, #2
