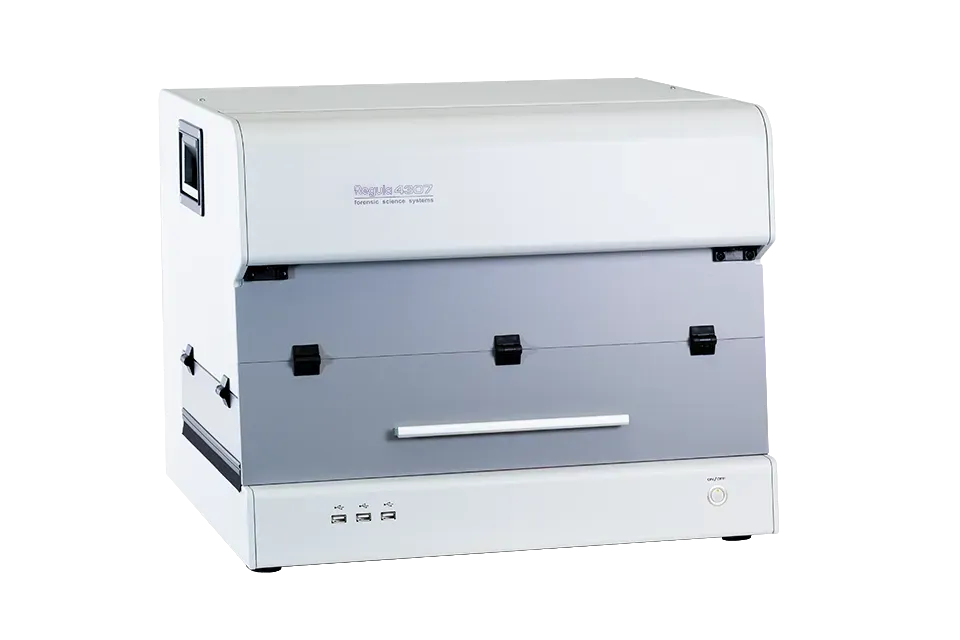

Intended Objects for Examination
Highlighted Features
![](https://static-content.regulaforensics.com/Hardware-products/4307/HF/1.webp)
Movable object stage
XY translation stage for high-performance positioning along multiple axes and image stitching (not less than 70±2 mm along the X-axis and 48±2 mm along the Y-axis). Allows microdisplacements (0.01 mm) of examined objects.
![](https://static-content.regulaforensics.com/Hardware-products/4307/HF/2.webp)
High resolution spectrometer
For measuring the spectrum of reflected, transmitted and UV luminescent signals of the examined object. The high resolution spectrometer allows calculating the color characteristics of the examined objects and building graphs for further comparison.
![](https://static-content.regulaforensics.com/Hardware-products/4307/HF/3.webp)
Superb features
Multifocus, Super Resolution. Hyperspectral analysis and examinations with a spectrometer.
![](https://static-content.regulaforensics.com/Hardware-products/4307/HF/4.webp)
IR luminescence
Automatic acquisition of a sequence of examined object images for all luminescent narrowband light sources and camera filters in order to distinguish inks and check IR luminescence in documents and banknotes.
![](https://static-content.regulaforensics.com/Hardware-products/4307/HF/5.webp)
3D visualization
Possibility to build a 3D-model of a document fragment. Examination of surface relief, detection of printing methods, and analysis of overlapping objects such as a signature and a stamp.
![](https://static-content.regulaforensics.com/Hardware-products/4307/HF/6.webp)
Large objects
Possibility to examine thick and large objects due to extended field of view and removable protective shields.
Examples of Examination
Document examination in different light sources and operation modes
Efficient Solution for a Variety of Sectors
![Regula in Security printing industry](https://static-content.regulaforensics.com/Hardware-products/Industries/security-print.webp)
![Regula in Banks & financial agencies](https://static-content.regulaforensics.com/Hardware-products/Industries/bank.webp)
![Regula in Border control & immigration services](https://static-content.regulaforensics.com/Hardware-products/Industries/border.webp)
Specifications
Does not constitute а public offer
Light sources
Incident
ultraviolet (254-395 nm) - 4 light sources, IR luminescence (395-640 nm) - 8 light sources, infrared (700-940 nm) - 4 light sources, white
Transmitted
LEDs: white, infrared, ultraviolet 365 nm, spot white, spot infrared
Oblique
LEDs: white - 6 light sources, infrared - 6 light sources
Coaxial polarized
white LED
OVD
LEDs: horizontal - 31 light sources, vertical - 9 light sources
Back light
white LEDs
CMOS Camera
Resolution
14 Mp
Camera filters
IR High pass (580-850 nm) - 11 filters, visible pass (370-700 nm), UV cut off (450-1100 nm), polarization
Delivery set
Built-in PC (Intel® Core™ i7 or better, min 8 Gb RAM, min 120 Gb SSD)
optionally
Calibration kit (calibrated white reference material. NIST traceable)
Regula Forensic Studio software
Spectral luminescent magnifier Regula 4147
optionally
Magneto-optical visualizer Regula 4197
optionally
Thermostage Regula 4168
optionally
Trinocular Stereo Microscope Regula 5003
optionally
Mirror for examination of the document edge
optionally
Information Reference Systems “Passport”, “Autodocs”,“Currency” (brief version)
optionally
1. Trinocular Stereo Microscope Regula 5003
There are cases when to complete examination experts require a microscope. Trinocular Stereo Microscope Regula 5003 is a perfect tool. By switching between two options of examination – eyepieces or a built-in digital camera – an expert may carry out not only visual examination but also an examination with a variety of RFS software tools.
![Trinocular Stereo Microscope Regula 5003](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/5003_1.webp)
2. Visualizer of magnetic properties Regula 4197
Additional nondestructive examination of images, travel document and banknote fragments, dyes of printing devices that contain magnetic ink, as well as performance of magnetic measurements.
![Visualizer of magnetic properties Regula 4197](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4197_1.webp)
![](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4197_2.webp)
![](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4197_3.webp)
3. Thermostage Regula 4168
Examination of images, travel documents and banknote fragments that contain thermochromic ink at different temperatures. Examination of a composite security feature Feel®-ID developed by Giesecke & Devrient company. Feel®-ID is based on optically variable and thermochromic effect.
Temperature range — +30...+80 ˚С with a step of 1 ˚С
Heated area (length×width) — 78×48 mm
Dimensions (length×width×height) — 170×78×16 mm
Weight — 0.25 kg
Power supply voltage: powered by the USB port of the video spectral comparator — 5 V
Power consumption — max 15 W
![Thermostage Regula 4168](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4168_1.webp)
![Temperature +20 ˚С](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4168_2.webp)
![Temperature +35 ˚С](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4168_3.webp)
![Temperature +50 ˚С](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4168_4.webp)
4. Tilting stage Regula 4165
Examination of widespread security features of banknotes and travel documents that are visualized at different lighting and observation angles, for example, OVI, DYNAPRINT®, FUSE-ID and others.
Tilt angle — max ±30˚
Working area (length×width) — (180×110) ±1 mm
Dimensions (length×width×height) — max 230×112×42 mm
Power supply voltage via a USB port — 5 V
Device weight — max 0,5 kg
Rated current — max 1 A
![Tilting stage Regula 4165](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4165_1.webp)
5. Polarizer Regula 4169
Examination of questioned documents while changing the angle of polarization.
Angle of filter rotation — 0…360 with a step of 2˚
Field of view (diameter) — 70 mm
Dimensions (length×width×height) — max 195×140×40 mm
Power supply voltage via a USB port — 5 V
Device weight — max 0.9 kg
Rated current — max 0.5 A
![Polarizer Regula 4169](https://static-content.regulaforensics.com/Hardware-products/4308/Equipment/4169_1.webp)
