Compact device for Thousands of Forensic Tasks
Desktop device Regula 4306 has a set of visible, IR and UV light sources of different wavelengths, including a light source for anti-Stokes luminescence.
It is equipped with modules for reading MRZs, RFID chips, hidden images (IPI), and 1D and 2D barcodes.
Modules with extend capabilities: hyperspectral and 3D imaging. The 3D imaging module has a height palette that guarantees precise height measurement of surface relief.
Thanks to the side flaps and widened internal space, all examined objects can be conveniently placed inside. A removable object stage helps to obtain an extended field of view — 265×199 mm.
The video spectral comparator is controlled via Regula Forensic Studio software, which allows capturing, processing and storing images of examined objects.
Highlighted Features
Resolution up to 18900 ppi
The device's camera offers the highest-resolution capture, which results in stunning image detail.
LED light sources only
Stable lighting during the entire service life. Low heat levels, high energy efficiency, long lifespan.
Hyperspectral imaging
The 2D spectral decomposition with a step of 1 nm.
3D visualization
Examination of surface relief and intersecting lines, detection of printing methods.
40+ light sources
A whole collection of light sources in the range of 254-1020 nm for document examination. A total of 4095 combinations of high-intensity light sources for IR luminescence.
Large-size document
Obtains the whole image of an A4 page. Features a removable object stage for thick document examination.
Anti-Stokes examination
The device is equipped with new light sources for examination of anti-Stokes inks in a live image mode, which means you can find the appropriate security features, especially the tiniest ones, much faster, since they tend to elude detection in static mode.
Adjustable oblique lights
Height-adjustable oblique light sources ease the process of examination of document relief and security features. After manual adjustment of the light source, the program automatically calculates and shows the angle in the program’s interface.
Spectral examinations
The capabilities of the comparator can be extended with the Spectral Microscope Regula 5006. This tool allows you to study an object with an optical magnification of up to 3x, as well as to obtain color and spectral characteristics of the examined object (including UV-luminescent).
Examples of Examination
Document examination in different light sources and operation modes
Intended Objects for Examination
Efficient Solution for a Variety of Sectors
Specifications
Does not constitute а public offer
Light sources | 4306F | 4306 |
---|---|---|
Incident white | ||
Incident ultraviolet 395 nm | ||
Incident ultraviolet 365 nm | ||
Incident ultraviolet 313 nm | ||
Incident ultraviolet 254 nm | ||
Incident infrared 700 nm | ||
Incident infrared 780 nm | ||
Incident infrared 850 nm | ||
Incident infrared 950 nm | ||
Incident infrared 1020 nm | ||
Oblique 2×white (left and right) | ||
Oblique 2×infrared 850 nm (left and right) | ||
For 3D visualization white | ||
For 3D visualization infrared 850 nm | ||
Transmitted white | ||
Transmitted infrared 860 nm | ||
Transmitted infrared 780 nm | ||
Transmitted ultraviolet 365 nm | ||
Transmitted spot white | ||
Transmitted spot infrared 950 nm | ||
Transmitted spot infrared 850 nm | ||
Transmitted spot infrared 780 nm | ||
Coaxial white | ||
For OVD visualization horizontal: 31 LEDs | ||
For OVD visualization vertical: 16 LEDs | ||
High-intensity LEDs for IR luminescence Violet 395 nm | ||
High-intensity LEDs for IR luminescence Violet 420 nm | ||
High-intensity LEDs for IR luminescence Royal Blue 450 nm | ||
High-intensity LEDs for IR luminescence Blue 470 nm | ||
High-intensity LEDs for IR luminescence Cyan 505 nm | ||
High-intensity LEDs for IR luminescence Green 530 nm | ||
High-intensity LEDs for IR luminescence Amber 590 nm | ||
High-intensity LEDs for IR luminescence Red-orange 615 nm | ||
High-intensity LEDs for IR luminescence Red 635 nm | ||
High-intensity LEDs for IR luminescence Deep red 660 nm | ||
High-intensity LEDs for IR luminescence Far red 700 nm | ||
High-intensity LEDs for IR luminescence Far red 735 nm | ||
High-intensity, spot, incident white D50 | ||
High-intensity, spot, incident ultraviolet 365 nm | ||
Polarized white with linear polarization | ||
Polarized white with anti-clockwise circular polarization | ||
Polarized white with clockwise circular polarization | ||
High-intensity IR for anti-Stokes luminescence 800-1100 nm | only with Regula 4147 |
Sensor resolution
8 Mp
Frame size
2880x2160 pixels
Spectral range
340-1100 nm
Camera zoom
in the range of 1-30x with an additional fixed gradation of 60x
Onscreen zoom
up to x135 (approx.) on a 32” 4K
Digital zoom
10x
Resolution
up to 18900 ppi
Minimum field of view
3.9x2.9 mm (±5%)
Extended field of view without the object stage
296x222 mm (±5%) (frame size 3216x2412 pixels)
Dimensions
400×380×370 mm
Weight
30 kg
Supply voltage
110-240 V; 50-60 Hz
Functional modules | 4306F | 4306 |
---|---|---|
Hyperspectral imaging module | ||
Removable object stage | ||
RFID |
Delivery set | 4306F | 4306 |
---|---|---|
Spectral Luminescent Magnifier Regula 4147 | ||
3D visualizer Regula 4162 | optional | |
Tilting stage Regula 4165 | optional | |
Thermostage Regula 4168 | optional | |
Polarizer Regula 4169 | optional | |
Visualizer of magnetic properties Regula 4197 | optional | optional |
Spectral microscope Regula 5006 (spectrometer) | optional | optional |
Mirror for OVI visualization | ||
Mirror for examination of the document edge | ||
Quartz Glass Holding Plate — 200×200×5 mm | optional | optional |
Regula Forensics Studio Software | ||
All-in-one computer | optional | optional |
GENERAL

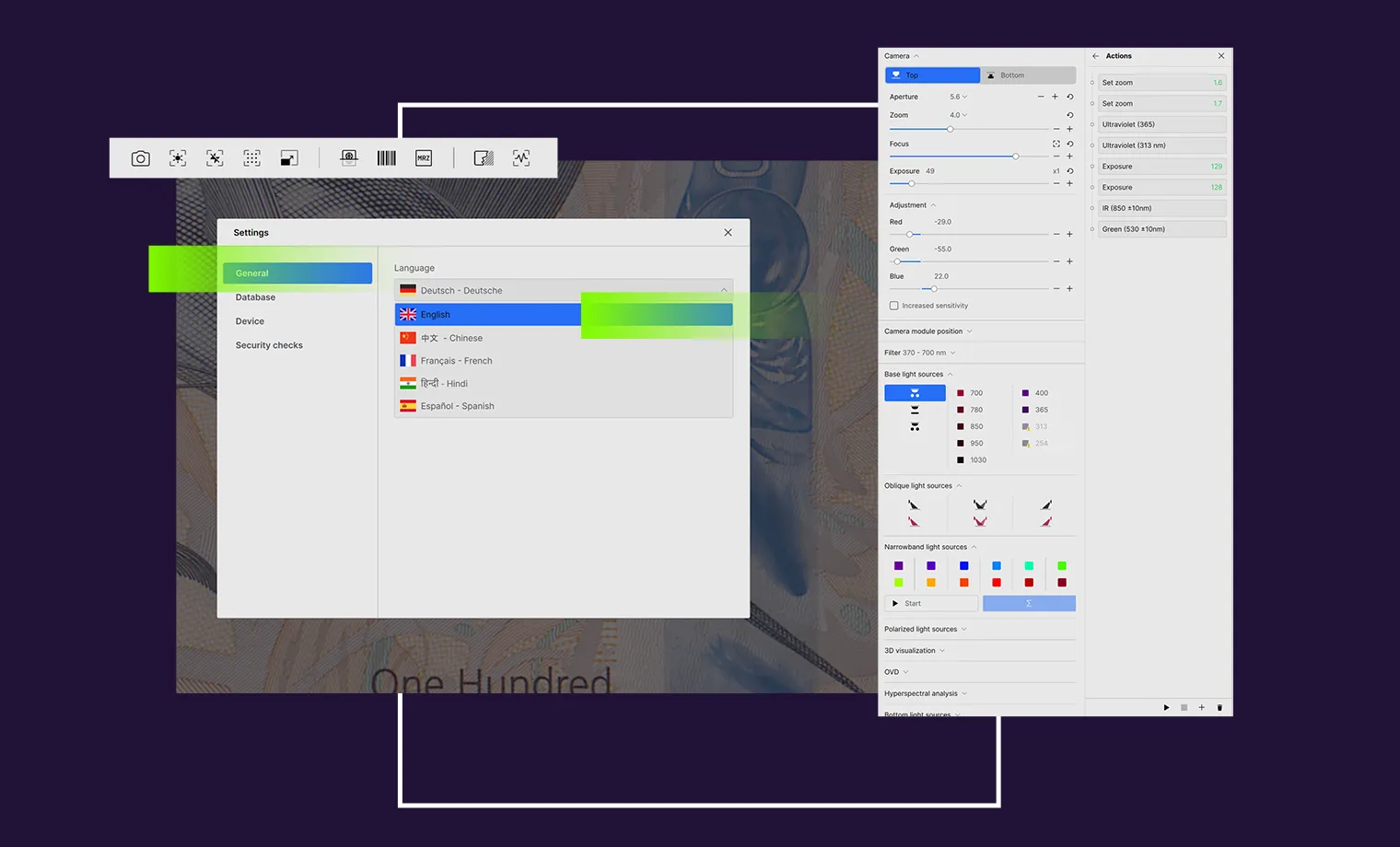

Language and directory for saving images
Video camera control
Image сapture and saving images
Macros (script)
Image examination - making measurements
Image comparison
Exporting data into MS Word
LIGHT SOURCES
Basic light sources
Oblique light sources
Narrowband light sources
IR luminescence (Automatic)
Transmitted light sources
Polarized light sources
HARDWARE AND SOFTWARE FUNCTIONALITY
3D visualization
OVD visualization
UV postluminescence
Hyperspectral analysis
Machine readable zone (MRZ)
Barcode
RFID chip
Face matching
Obtaining multi-focus images
Glare compensation
HDR image acquisition
Thick document examination (removable object stage)
ADDITIONAL EQUIPMENT
Thermostage Regula 4168
Tilting stage Regula 4165
Polarizer Regula 4169
