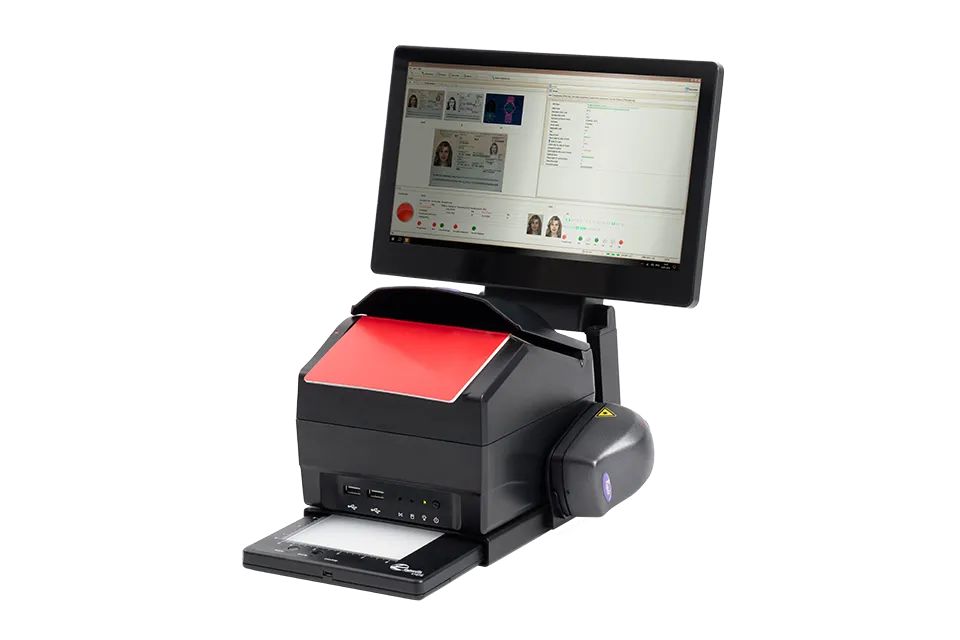

Independent Workstation

Light sources

- white
- infrared 870 nm (950 nm - optionally)
- ultraviolet 365 nm
- coaxial white

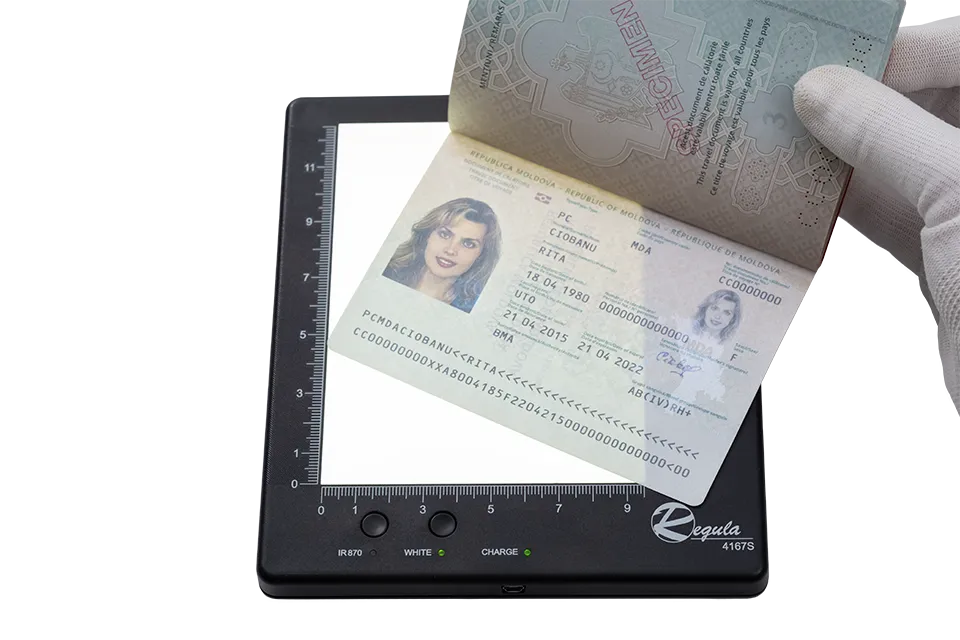

Scanning zone

88×128 mm (full passport page)

Camera

5 MP:
- resolution — 470 ± 5% ppi
- frame size — 2592×1944 pixels

10 MP:
- resolution — 640 ± 10% ppi
- frame size — 3664×2748 pixels

18 MP:
- resolution — 860 ± 10% ppi
- frame size — 4908×3684 pixels

Supported standards

ISO 14443: type A and B

Data exchange rate

106, 212, 424, 848 Kbaud

Supported standards

ISO/IEC 7816-1, -2, -3, -4; EMV2000 4.1, Level 1

Data exchange rate

2–500 Kbaud

Smart card type

asynchronous, T = 0 and T = 1

CPU

Intel® Core™ with active fan heatsink

RAM

8 Gb

Storage

SSD 120 Gb

HDMI 1.4a port

Peripheral connectivity

Intel 10/100/1000 Network Connection
2 Super Speed USB 3.0 ports (back panel ports)
2 Hi-Speed USB 2.0 ports (front panel ports)

Dimensions

190×160×135 mm

Weight

1.5 kg

Power supply voltage

19 V

Regula Document Reader SDK

Windows 10

Read SDK specification >>
