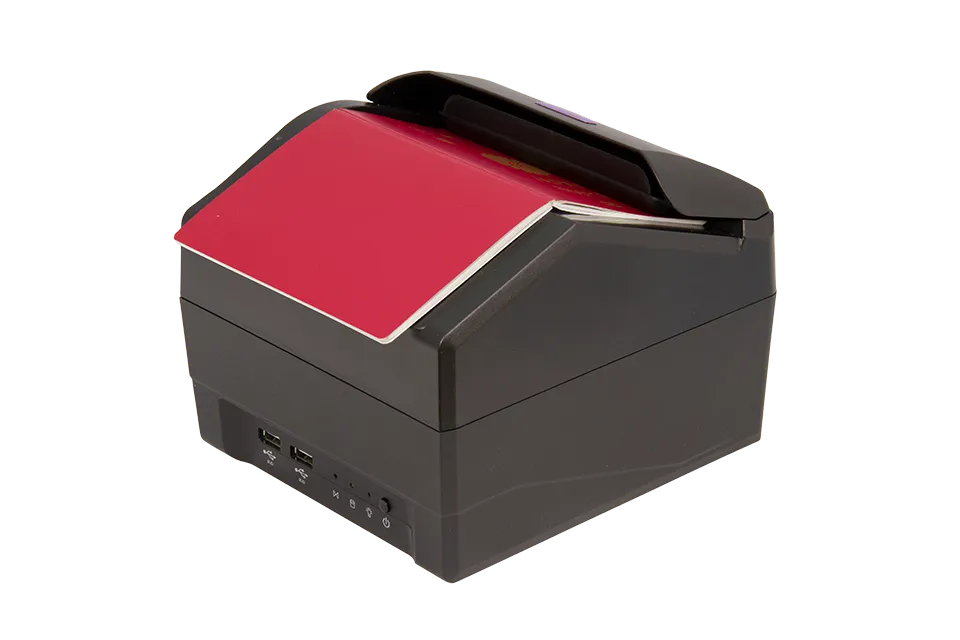

A Compact Device That Fits Everywhere

The small-sized Regula 70X9 doesn’t require a stationary computer to operate, which makes it a go-to solution for border protection counters, passport controls, police stations, registration offices, and other places that might be a bit tight on space. It automatically reads and verfies passports, IDs, visas, driver’s licenses and other identification documents.

Workstation for Document Reading Regula 70X9

Technologies Used

Automatic document type identification

Verify data from 12,000+ international documents using AI and ML.

passport OCR

Optical Character Recognition (OCR)

Convert typed or printed text into digital data.

MRZ passport reading

MRZ
reading

Scan and cross-check data from machine-readable zones.

nfc passport reader

RFID
reading

Verify documents equipped with Radio Frequency Identification (RFID) chips.

Graphical Data Extraction

Processing graphic fields

Automatic search and crop of signature, fingerprint, document holder's portrait to display as separate images.

Barcode Reading

Barcode
reading

Recognize all kinds of barcodes to accelerate operations.

Document authenticity

Automatic authenticity verification of a document.

Smart UV

Compensation of external light hitting during image capture in ultraviolet light.

Elimination
of glare

Remove reflection from laminate and holograms in white and IR light.

Light Sources

White

Infrared 870 nm

Ultraviolet 365 nm

Coaxial white

Unlimited Capabilities for Limited Spaces

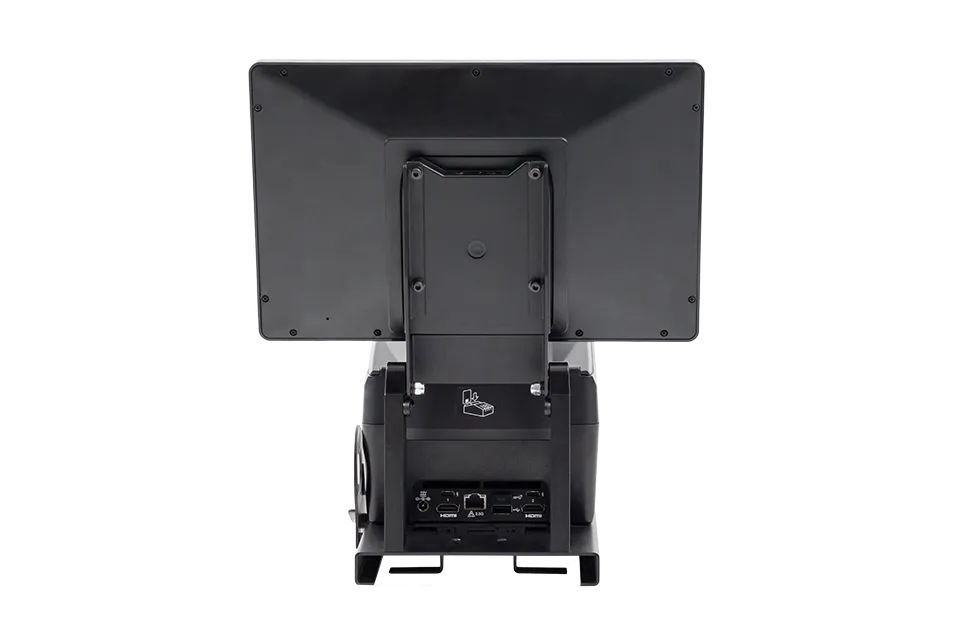

  • 4 USB ports for peripherals
  • LAN connection for networking via Ethernet
  • Video output for connecting an external monitor
  • A built-in Intel® Core™ with active fan heatsink, 8GB of RAM and 120 GB SSD

Being just 160 mm wide, Regula 70X9 conducts a surprisingly wide range of document checks. It reads and authenticates ID documents, such as passports, visas, driver's licenses, and more, and automates data entry. The processing happens right on the device with the help of the built-in PC, which makes it an independent unit and saves space.

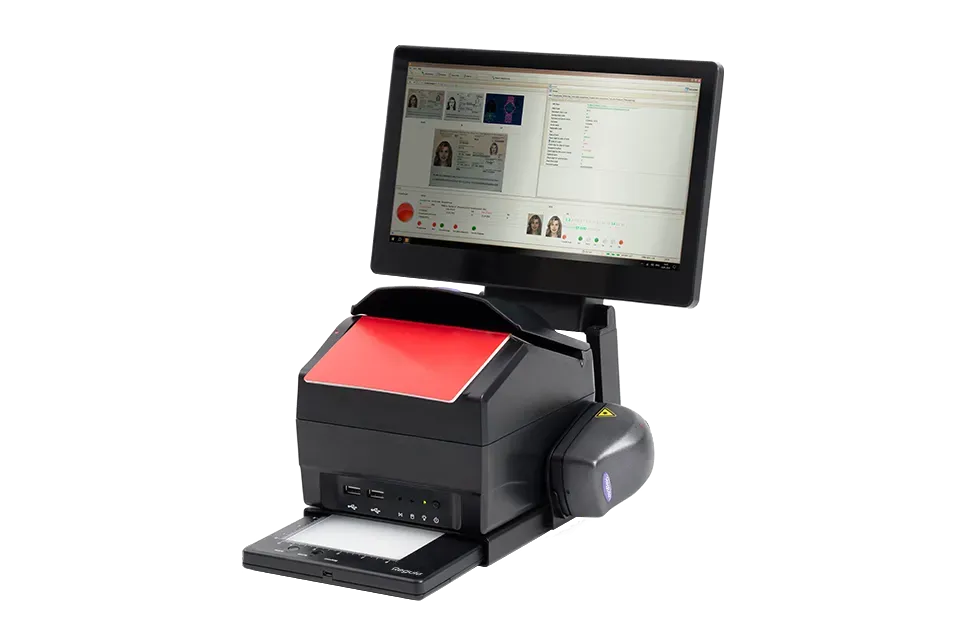

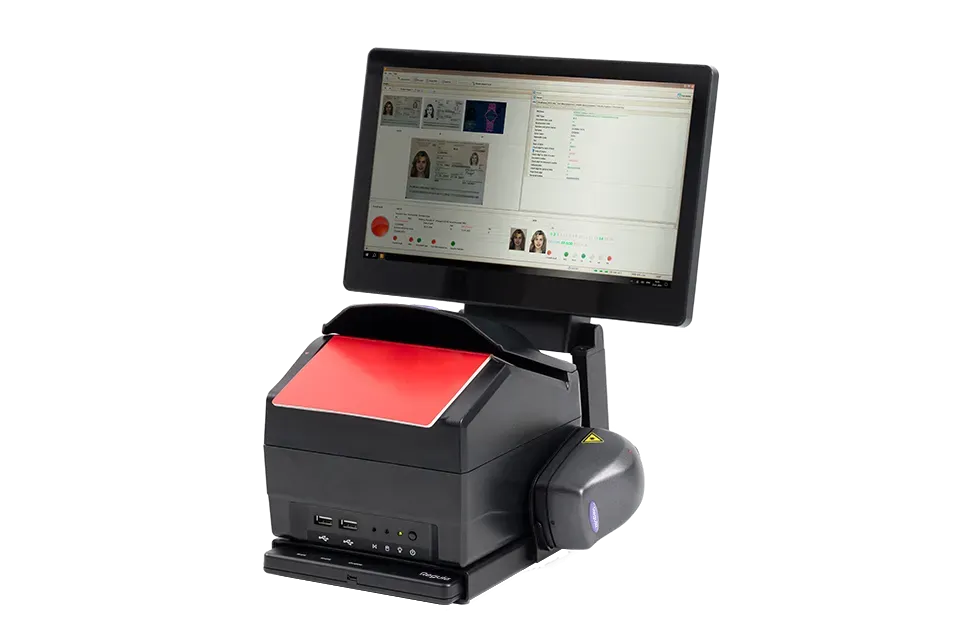

Still, Regula 70X9 is flexible and can be easily upgraded to a forensic mini lab. The optional built-in USB Multi Touch Monitor adds convenient visualization.

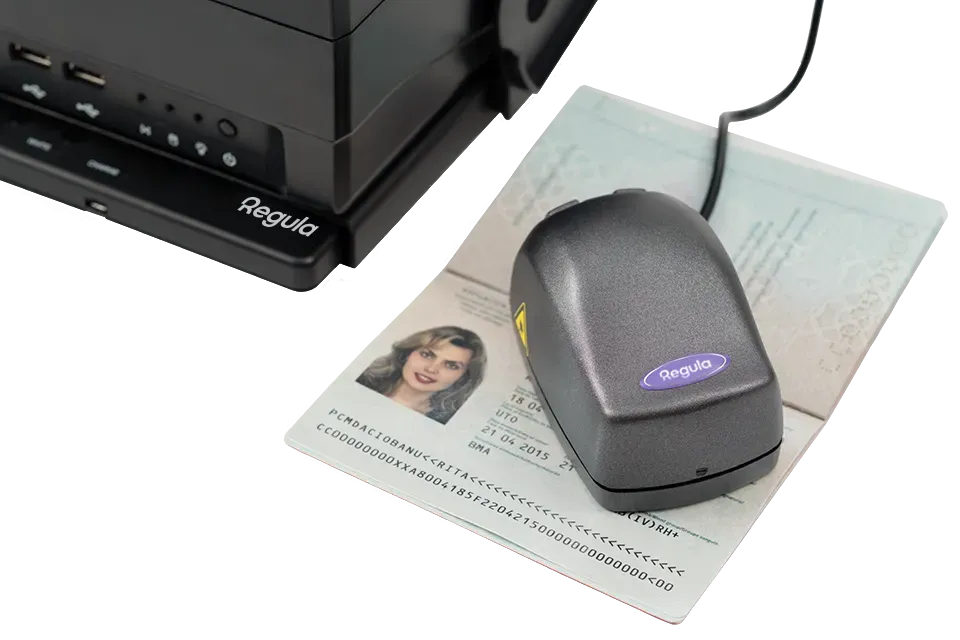

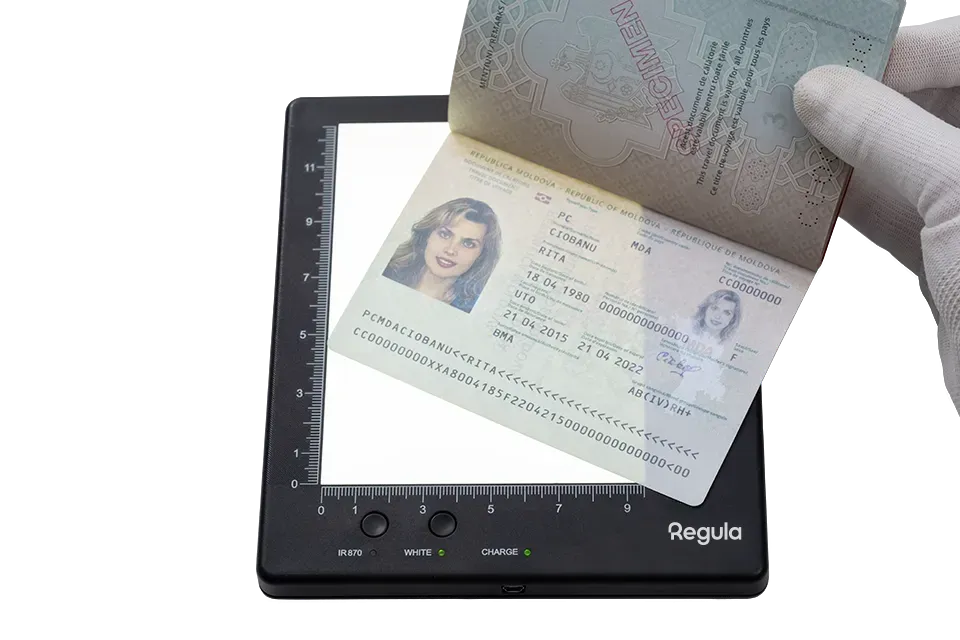

Thanks to the four USB ports, you can connect Spectral luminescent magnifier Regula 4177-5, Light table Regula 4167S or other devices. Depending on the configuration, it can also read RFID and SmartCard chips.

Thanks to the SDK that comes with the workstation, it can be a part of a bigger infrastructure and instantly transfer and synchronize data with your existing systems.



Efficient Solution for a Variety of Sectors

Border control

Immigration services

Police stations

Registration offices

Does not constitute а public offer

Below there are parameters for the flagship model 7039.111. For other models in the series, see full technical specifications.

OPTICAL DOCUMENT READER

Light sources

- white
- infrared 870 nm (950 nm - optionally)
- ultraviolet 365 nm
- coaxial white

Scanning zone

88×128 mm (full passport page)

Camera

5 MP:
- resolution — 470 ± 5% ppi
- frame size — 2592×1944 pixels

10 MP:
- resolution — 640 ± 10% ppi
- frame size — 3664×2748 pixels

18 MP:
- resolution — 860 ± 10% ppi
- frame size — 4908×3684 pixels

RFID reader

Supported standards

ISO 14443: type A and B

Data exchange rate

106, 212, 424, 848 Kbaud

Smart card reader

Supported standards

ISO/IEC 7816-1, -2, -3, -4; EMV2000 4.1, Level 1

Data exchange rate

2–500 Kbaud

Smart card type

asynchronous, T = 0 and T = 1

TABLET PC

CPU

Intel® Core™ with active fan heatsink

RAM

8 Gb

Storage

SSD 120 Gb

HDMI 1.4a port

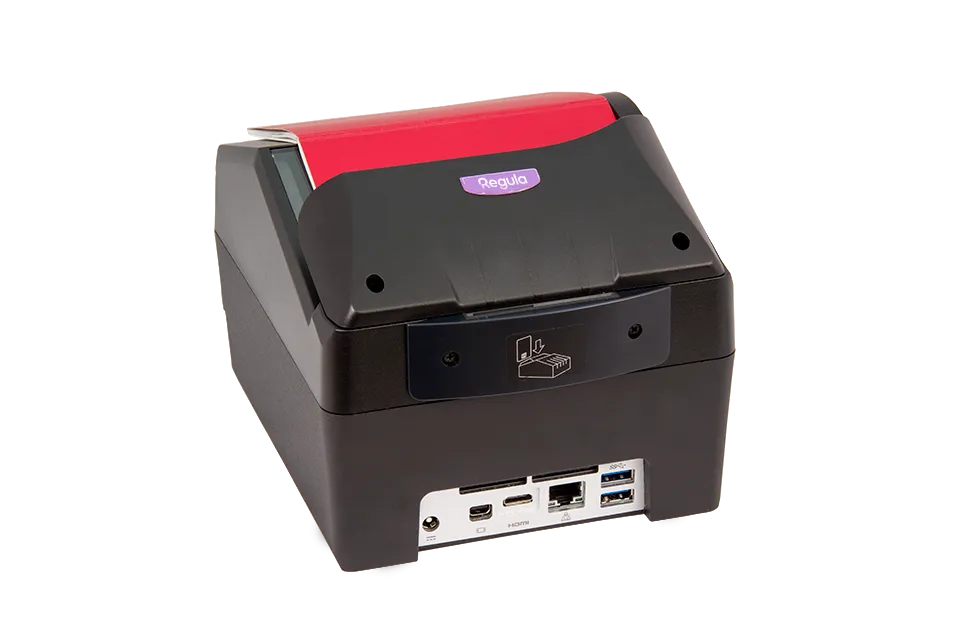

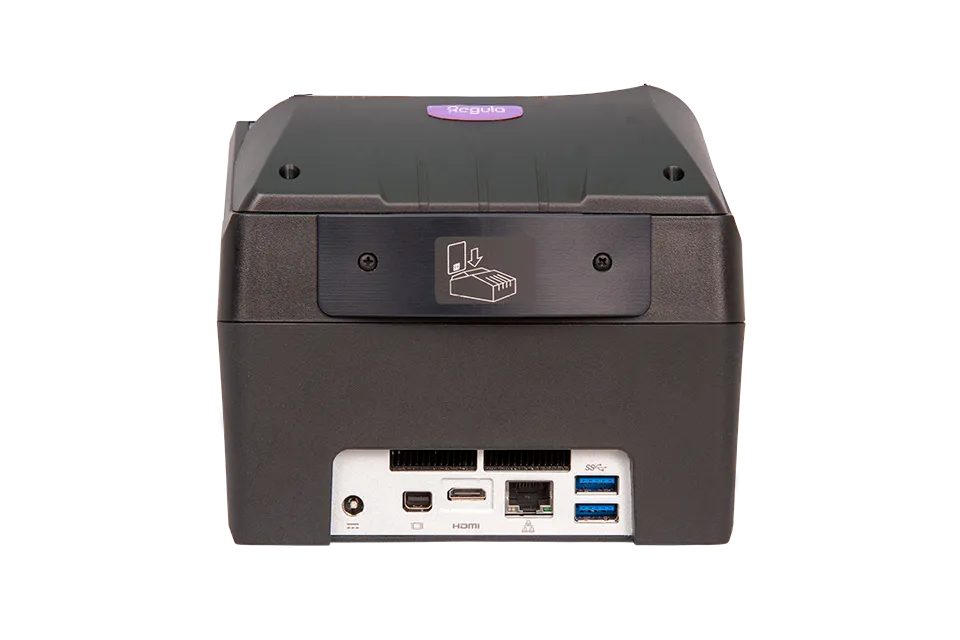

Peripheral connectivity

Intel 10/100/1000 Network Connection
2 Super Speed USB 3.0 ports (back panel ports)

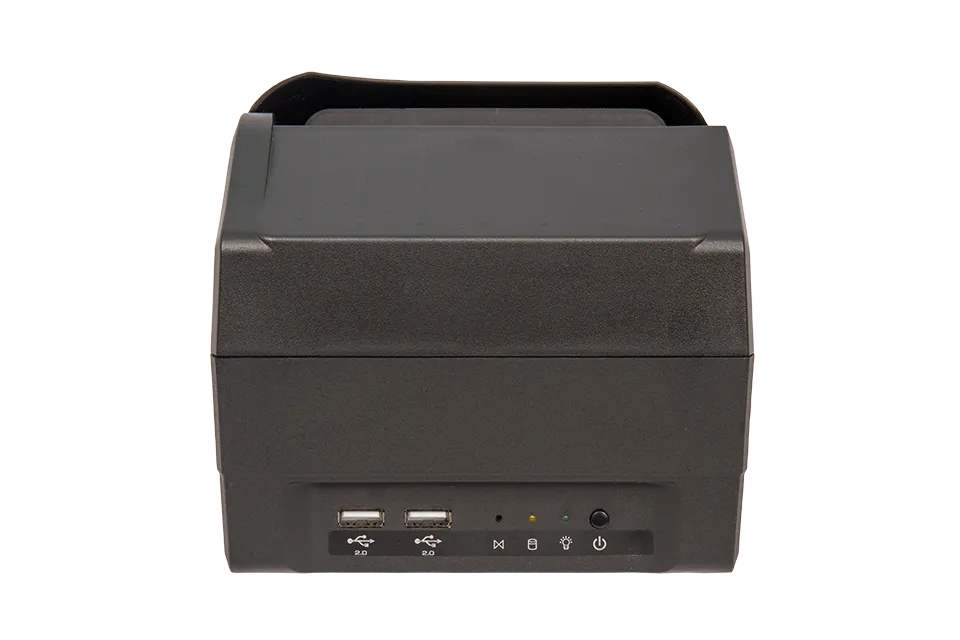

2 Hi-Speed USB 2.0 ports (front panel ports)

GENERAL PARAMETERS

Dimensions

190×160×135 mm

Weight

1.5 kg

Power supply voltage

19 V

DELIVERY SET

Regula Document Reader SDK

Windows 10

Specification for Document Reader SDK

Full Specification Regula 70X9

Download

Regula Document Reader SDK

Download
Document data readout: textual data readout
Document data readout: graphic data readout
Performed security checks in white light
Performed security checks in infrared light
Performed security checks in ultraviolet light
Checking photo embedding type: printing or attachment
Checking the blank of the document
Checking the personal data
Viewing the passport from IRS database
MRZ of the passport
Visual zone of the passport
RFID-chip of the passport
Text data comparison of the passport
Graphic data comparison of the passport
Security features of the passport
Security features of the passport
