Mobile Workstation 83X3M

HomeRegula Document ReadersPortable workstation for non-stop ID examination 83X3M

An Ideal Solution for Border Patrol Agents

The workstation is intended for automated reading and authenticity verification of ID-1, ID-2 and ID-3 documents, i.e. passports, ID cards, driver’s licenses, visas and other security documents. It consists of a tablet PC and a document reader.

It can be used both as a portable device powered by a battery pack and as a desktop solution powered by the AC mains.

The device captures images of documents in white, infrared, ultraviolet and white coaxial lights. Light combinations vary depending on device modification.

Some modifications of Regula 83X3M include a biometric fingerprint scanner and a RFID chip reader.

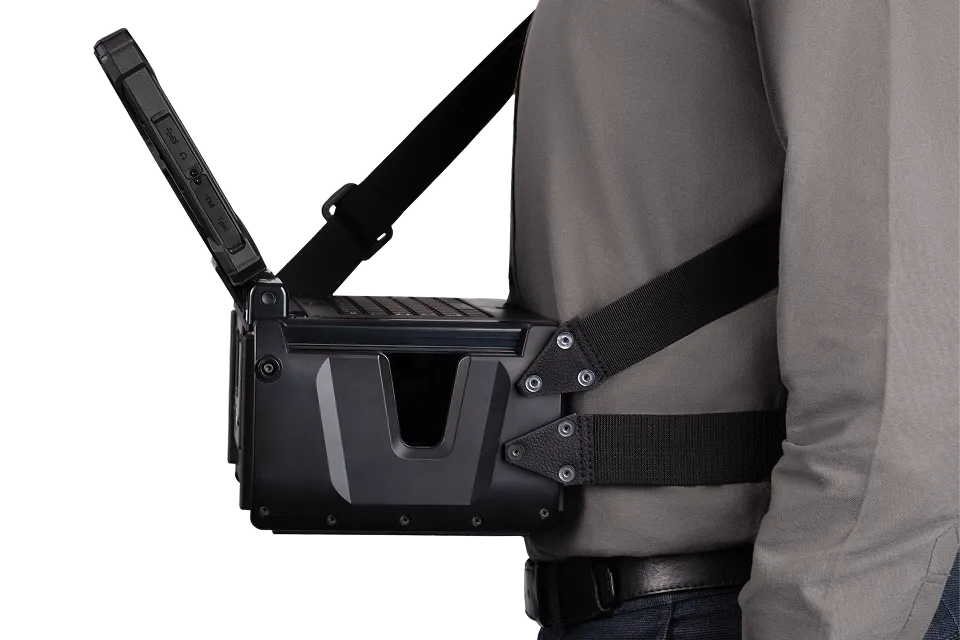

Regula 83X3M is supplied with a fastening kit - a shoulder strap and a waist strap for reliable fixation.

The device is controlled via special software Regula Document Reader SDK.

Intended Objects for Examination

Passports

ID Cards

Visas

Driver’s licenses

Highlighted Features

Unlimited abilities of SDK

SDK software automatically captures and processes images, reads data from 1D and 2D barcodes, recognizes document type, detects and recognizes MRZ, processes graphic fields, performs OCR of the visual zone and compares text data.
*By default Regula 83X3 is supplied with SDK Basic.

Rapid on-site examinations

The device is time saving solution which not only provides you with the processed results in a few seconds but also makes it possible to perform up to 6 hours of nonstop examinations in field.

Joined PC and reader

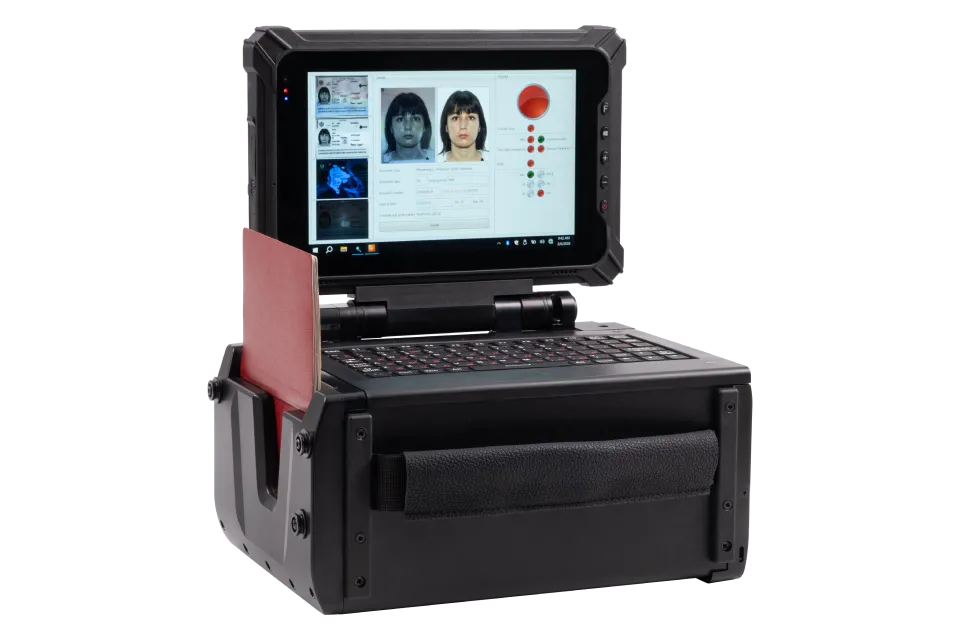

The workstation comprises a tablet PC and an optical document reader. The tablet PC has 8 inch multi-touch screen with IP67 protection rating.

Smart UV

SDK software reduces overlighting during image capture in ultraviolet light.

Impeccable reliability

Regula 83X3M is famous for its pinpoint accuracy and ease of transportation. The device body is strong, designed for use in field conditions.

Examples of Examination

View all

Efficient Solution for a Variety of Sectors

Border control & immigration services

Insurance companies

Police

Car rental and leasing companies

One-Stop Shop for Hardware, Software and Knowledge

Specialized Training

Training courses on document and banknote authentication

Information Reference Systems

Databases of travel documents, banknotes, driver's licenses and vehicle registration certificates

Does not constitute а public offer

Below there are parameters for the flagship model 8333M.111. For other models in the series, see full technical specifications.

Optical document reader

Light sources

- white
- infrared 870±20 nm
- ultraviolet 365±5 nm
- coaxial white

Field of view

90×130 mm (full passport page)

Sensor

3 MP:
- resolution — 400 ppi
- frame size — 2048×1536 pixels

RFID reader

Supported standards

ISO 14443: type A and B

Data exchange rate

106, 212, 424, 848 Kbaud

Biometric fingerprint scanner

Scanning time

0.15 s

Size of a window for scanning a fingerprint

16×24 mm

Resolution

508 dpi

Frame size

480×320 pixels

Connection interface

USB 2.0

Tablet PC

CPU

Intel® Z8300™ 1.44 GHz

RAM

4 Gb

Storage

SSD 64 Gb

Display

8 inch, IPS, 1280×800 (multi-touch screen)

Camera

2 MP (front), 5 MP (rear)

MicroSD support of up to 256 Gb

Interfaces

2xUSB 2.0, HDMI, microSIM, WiFi 802.11 a/b/g/n, WCDMA (900/2100MHz), HSDPA, GPS/GLONASS/QZSS

Battery

8300 mAh, 3.7 V

Protection rating

IP67

Microsoft Windows 10 Pro, 64 bit

General parameters

Dimensions (PC in closed position)

275x185x151 mm

Weight

4 kg

Power supply

from the AC mains using the power adapter — 100-240 V / 19 V
from the batteries — 4500 mAh / 14,4 V (reader battery pack), 8300 mAh / 3,7 V (PC battery)

Time of autonomous operation

6 h

Protection rating

IP41

Delivery set

Regula Document Reader SDK software

Specification for Document Reader SDK

Read SDK specification >>

Full Specification Regula 83X3M

Download

Regula Document Reader SDK

Download
