Magnification is one of the key characteristics of any forensic imaging device. It defines the range of tasks the device can handle — from identifying printing techniques and verifying document authenticity to analyzing toner particles from a laser printer alongside ink from a ballpoint pen.
At Regula, we've noticed that magnification specs are one of the most misunderstood parameters. A manufacturer might advertise a higher number, but that number could be measuring something entirely different from what you assume. And when you're making a procurement decision, that difference is worth understanding.
In this article, we'll clarify what each term actually means and help you figure out which number truly reflects a device's imaging capability.
At a glance:
| Term | What it means | Why it matters |
|---|---|---|
| Optical magnification | Enlargement created by lenses | The only hardware-bound parameter. Maintains image quality and details |
| Digital zoom | Software enlargement after capture | Allows for zooming in, but cannot add missing details (pixels) |
| On-screen magnification | Display-based enlargement | Shows image dimensions on a particular display, not the device's optical performance |
Subscribe to receive a bi-weekly blog digest from Regula
What is the difference between zoom and magnification?
Magnification tells you how many times larger an image appears compared with the real object. Zoom describes the ability to change that magnification.
For example, 10x magnification means the image appears 10 times larger than the object itself. By contrast, 10x zoom usually means the lens can move from its minimum to maximum magnification by a factor of 10. A lens with a 5x–50x and a lens with a 0.7x–7x both have a 10x zoom ratio, even though their actual magnification may be different.
In everyday use, and especially in marketing materials, people often say “zoom” when they mean “magnification.” That usage is common, but it often leads to confusion between the two concepts.
What do "optical," "digital," and "on-screen" mean?
In practice, the terms magnification and zoom are rarely used on their own. They are typically paired with qualifiers such as optical, digital, or on-screen to indicate how the image enlargement is achieved — whether through lenses and optics or through software-based processing.
Optical simply means “what the lens does” — a real, physical parameter.
10x optical magnification = the viewed object appears 10 times larger than it does to the naked eye.
10x optical zoom = the lens can vary focal length by a factor of 10, for instance, 24-240mm, which correspondingly results in a 10x change in magnification.
.svg)

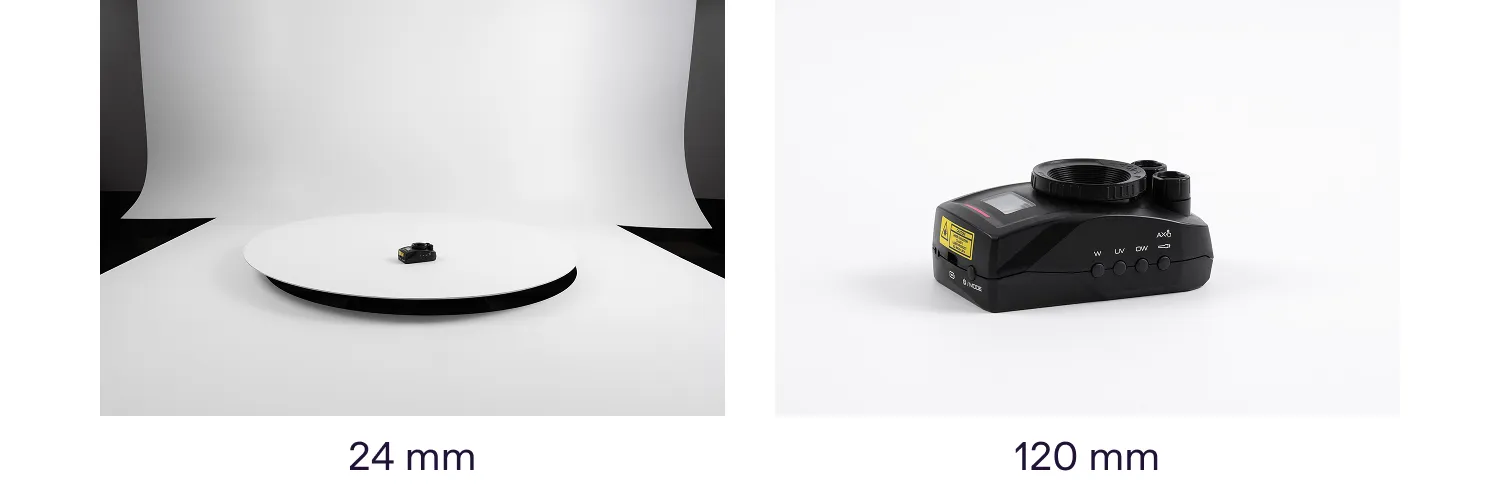

Focal length determines how “zoomed in” an image looks, and how much scene you can see.
A clear demonstration of how the image changes as the focal length changes. The higher the focal length parameter, the more zoomed-in the image becomes.

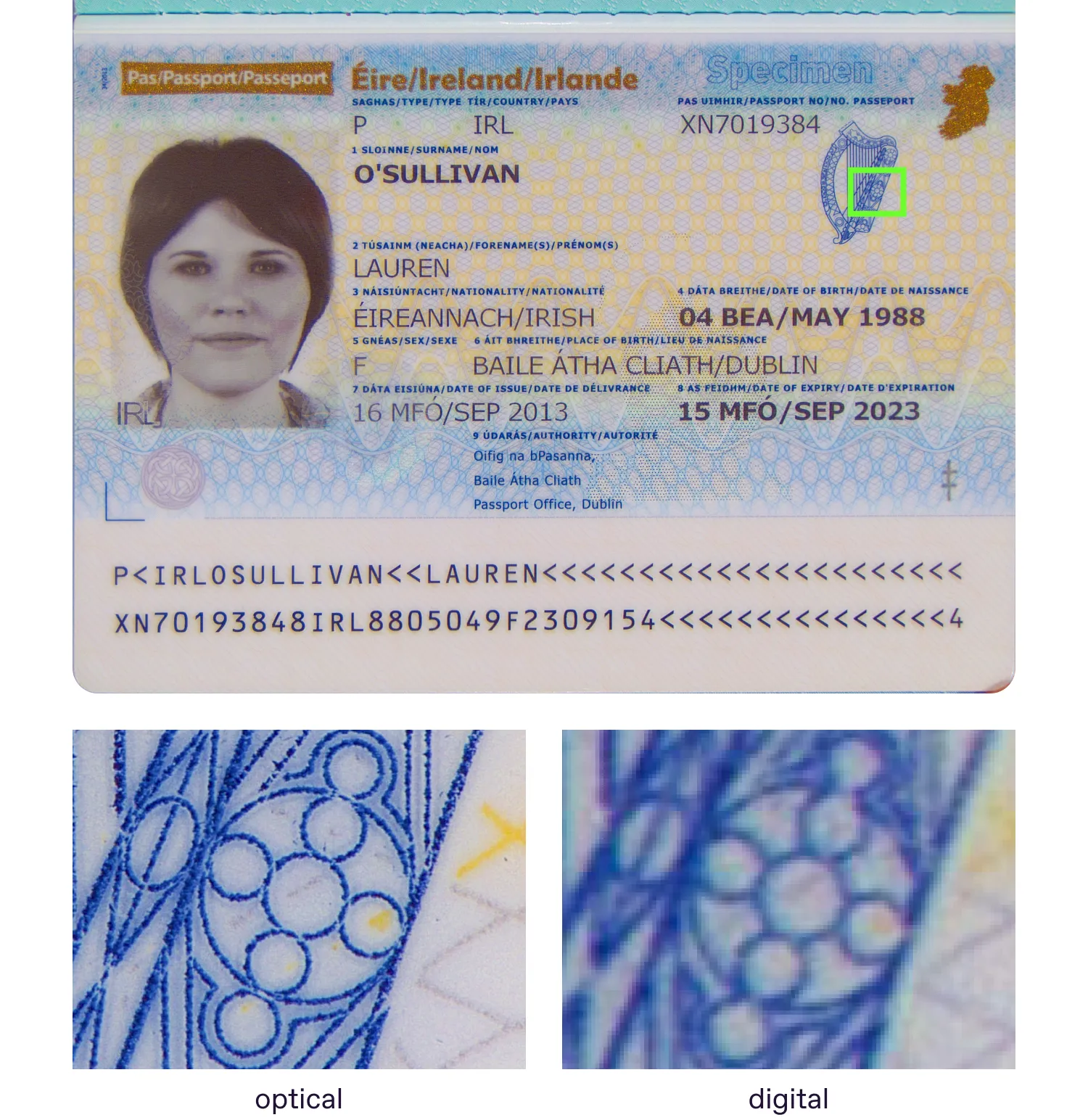

Digital means what software does to the image after capture. It allows for zooming in, but cannot reveal details the optics did not capture. The image may appear pixelated and blurrier. It happens because the software is just guessing what the pixels in between should look like.
10x digital zoom = the scale of the captured image can be changed up to 10 times without maintaining the original quality or providing more details.
Optical magnification relies on the structure of the optical lens so that it maintains image resolution and quality. Digital zoom only stretches what’s already there.
On-screen means what the display does. It is a function that scales the image and depends on display size, pixel density, aspect ratio, and other settings. In general, the larger the display, the higher the on-screen magnification.
On-screen magnification = how big this image appears on this particular screen.
The easiest way to measure on-screen magnification is to place a ruler under the camera, capture an image of its markings, and then measure how large those markings appear on the display. For example, if a 1 mm interval on the ruler appears as 10 mm on the screen, the on-screen magnification is 10 / 1 = 10x.
ISO 18221:2025 specifies a method for calculating on-screen magnification for digital microscopes. However, this standard does not necessarily apply to video spectral comparators and other devices used for questioned document examination. As a result, the reported on-screen magnification values can vary depending on how the image is displayed and which display is used for the measurement.
There's a simple way to recognize on-screen magnification in a specification sheet: it's always accompanied by display parameters, such as "on a 32-inch 4K monitor." The display is part of the specification because, without it, the number is meaningless.
There are six key questions to consider when evaluating on-screen magnification.
-
What are the dimensions of the image?
-
What is the aspect ratio of the image?
-
What is the size of the display?
-
What is the resolution of the display?
-
How is the image displayed: at 1:1 scale or in full-screen mode?
-
Is part of the display occupied by toolbars and other interface elements?
The answers to these questions help shed light on the many ways on-screen magnification figures can be influenced. However, the resulting number does not reflect the device's actual imaging capabilities. Let's look at a few examples to better understand why.
We captured an image of a 5 mm section of a standard ruler to calculate on-screen magnification on a 24-inch display with a resolution of 1920×1080 pixels and aspect ratio 16:9. The purpose of this experiment was to demonstrate how differences in image aspect ratio and resolution affect the final on-screen magnification value.

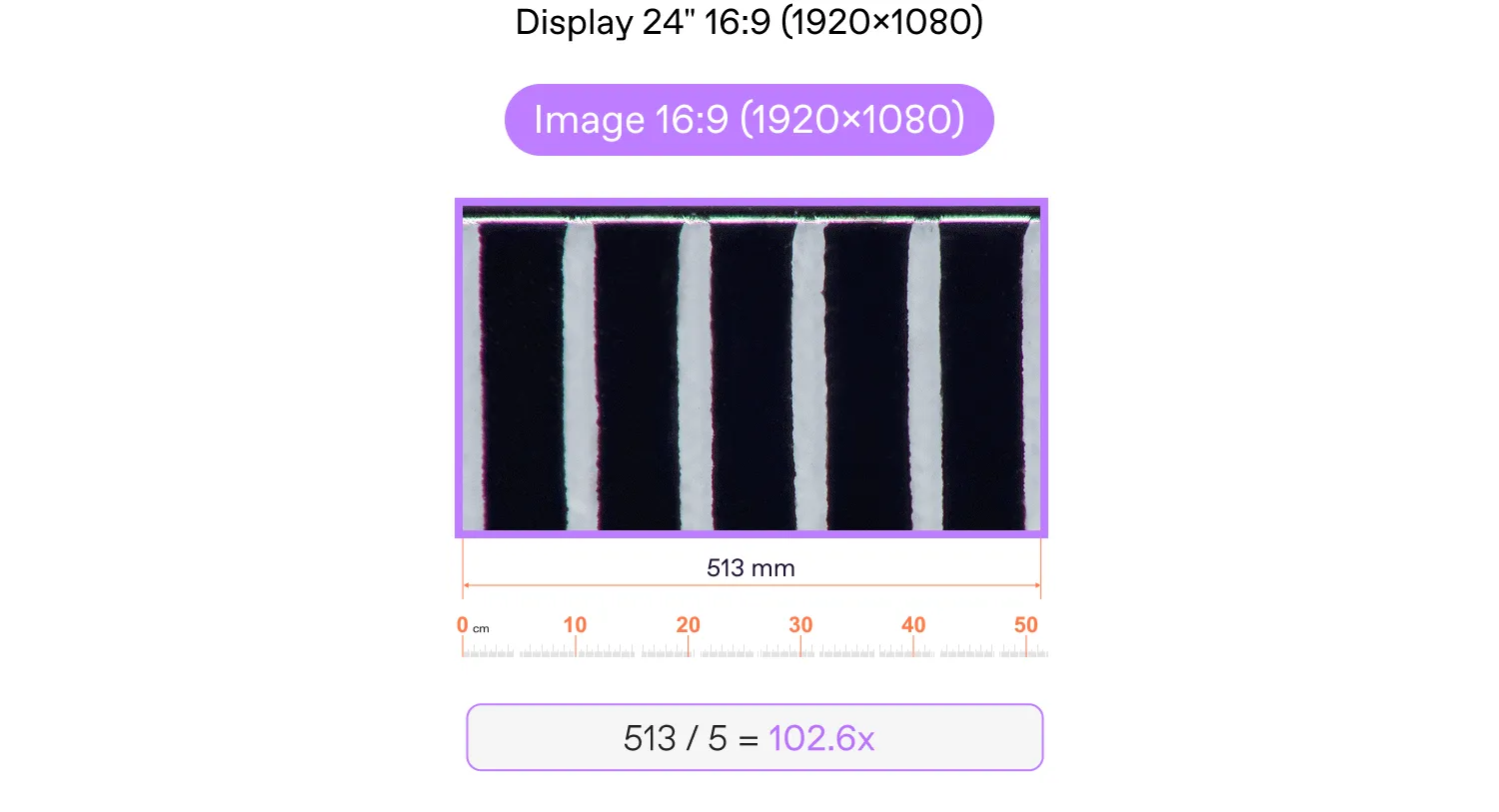

In this case, the image has the same resolution and aspect ratio as the display. The image occupies the entire display area and is displayed at a 1:1 (pixel-for-pixel) scale. In this case, 5 mm on the ruler appears as 513 mm on the screen, which means the on-screen magnification is 102.6x.

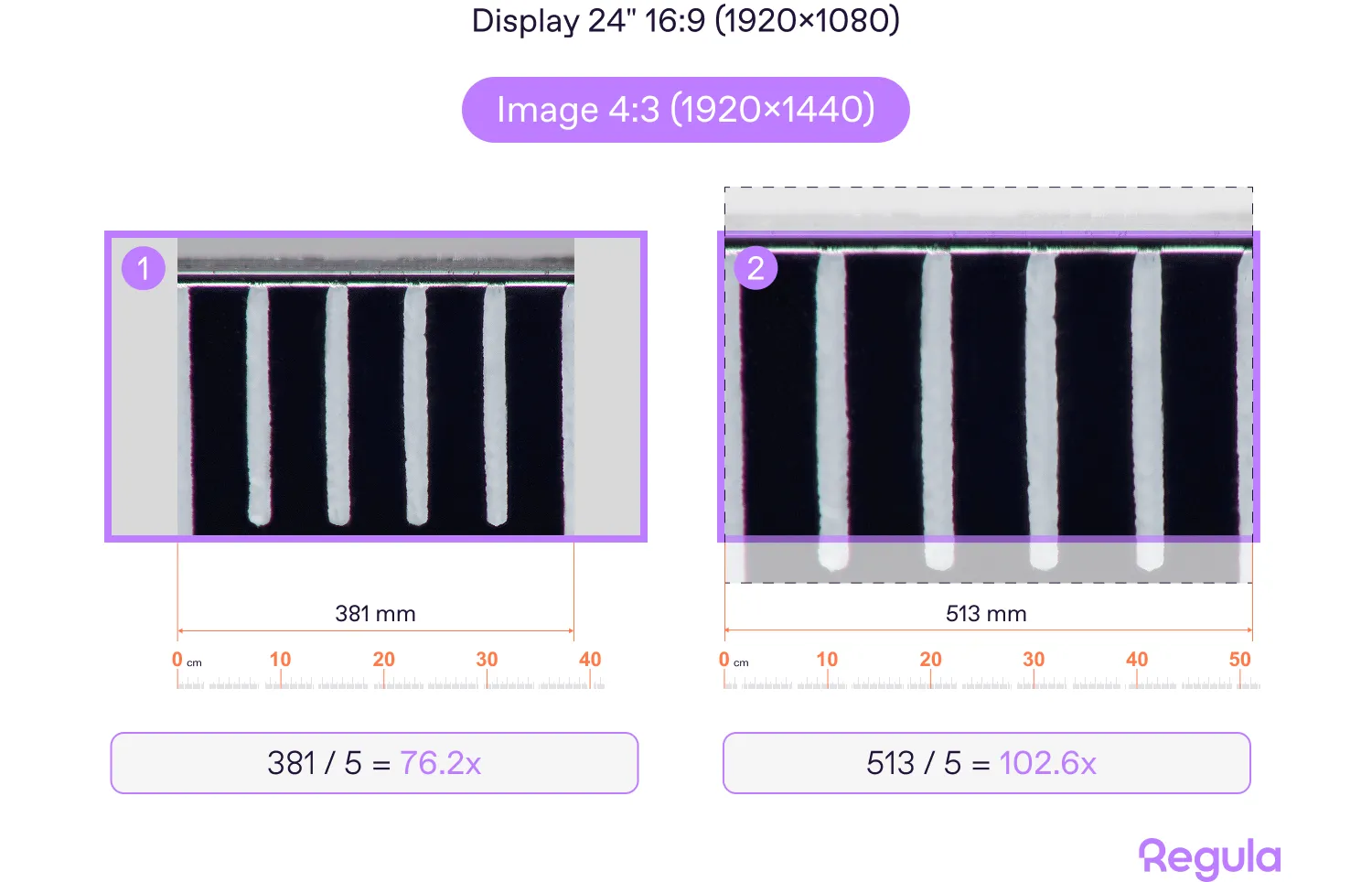

Now, the image has a 4:3 aspect ratio. In #1, the image is displayed with margins on both sides of the screen. To fit the entire image within the display, it has been scaled down. In #2, the image is displayed at a 1:1 (pixel-for-pixel) scale. As a result, part of the image extends beyond the display and is cropped.

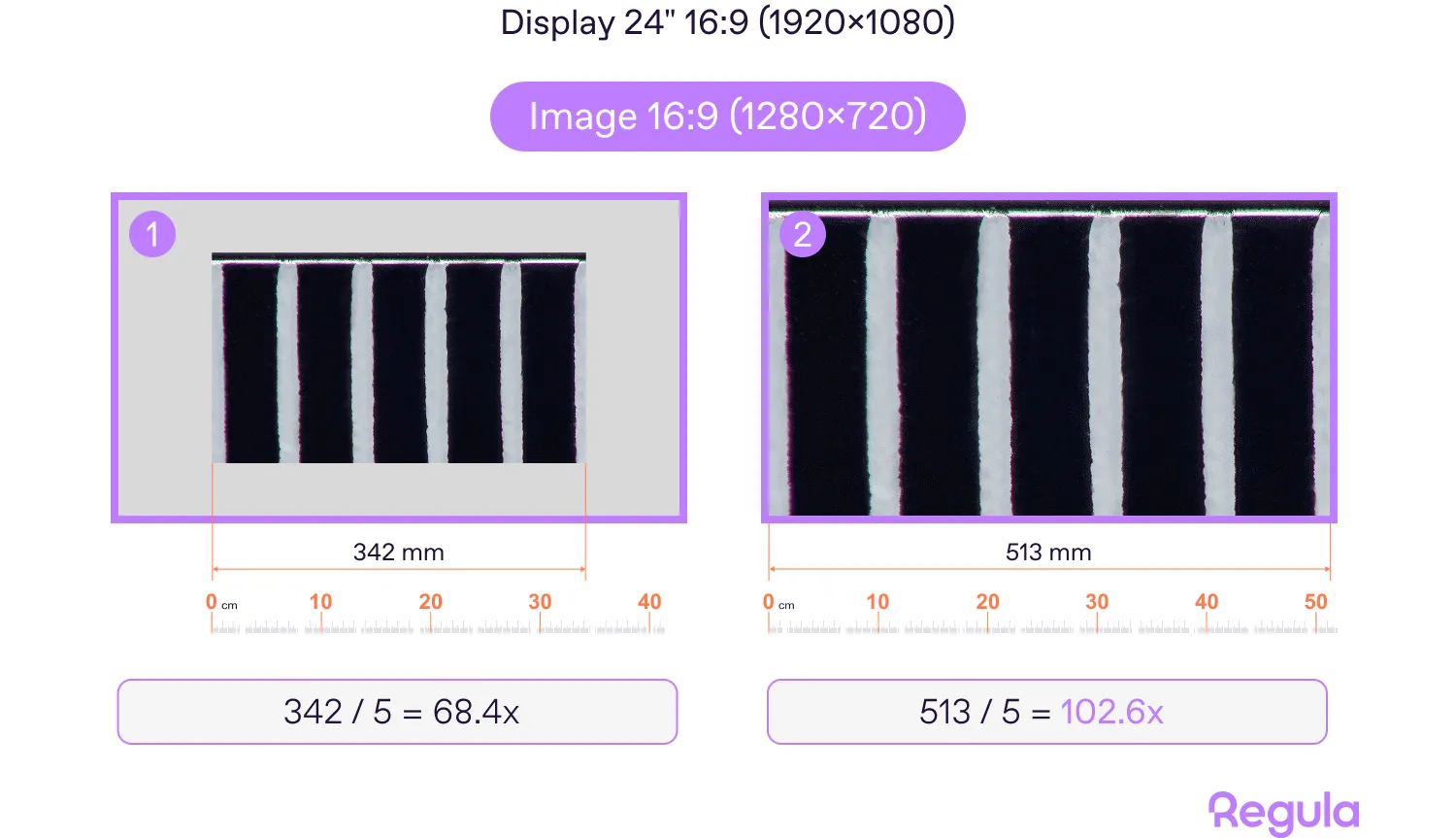

Here, the image has a lower resolution than the display. In #1, the image is displayed at a 1:1 (pixel-for-pixel) scale. In #2, the image is displayed in full-screen mode. To fill the entire display, the image is scaled up, stretching the pixels. It looks like a digital zoom.

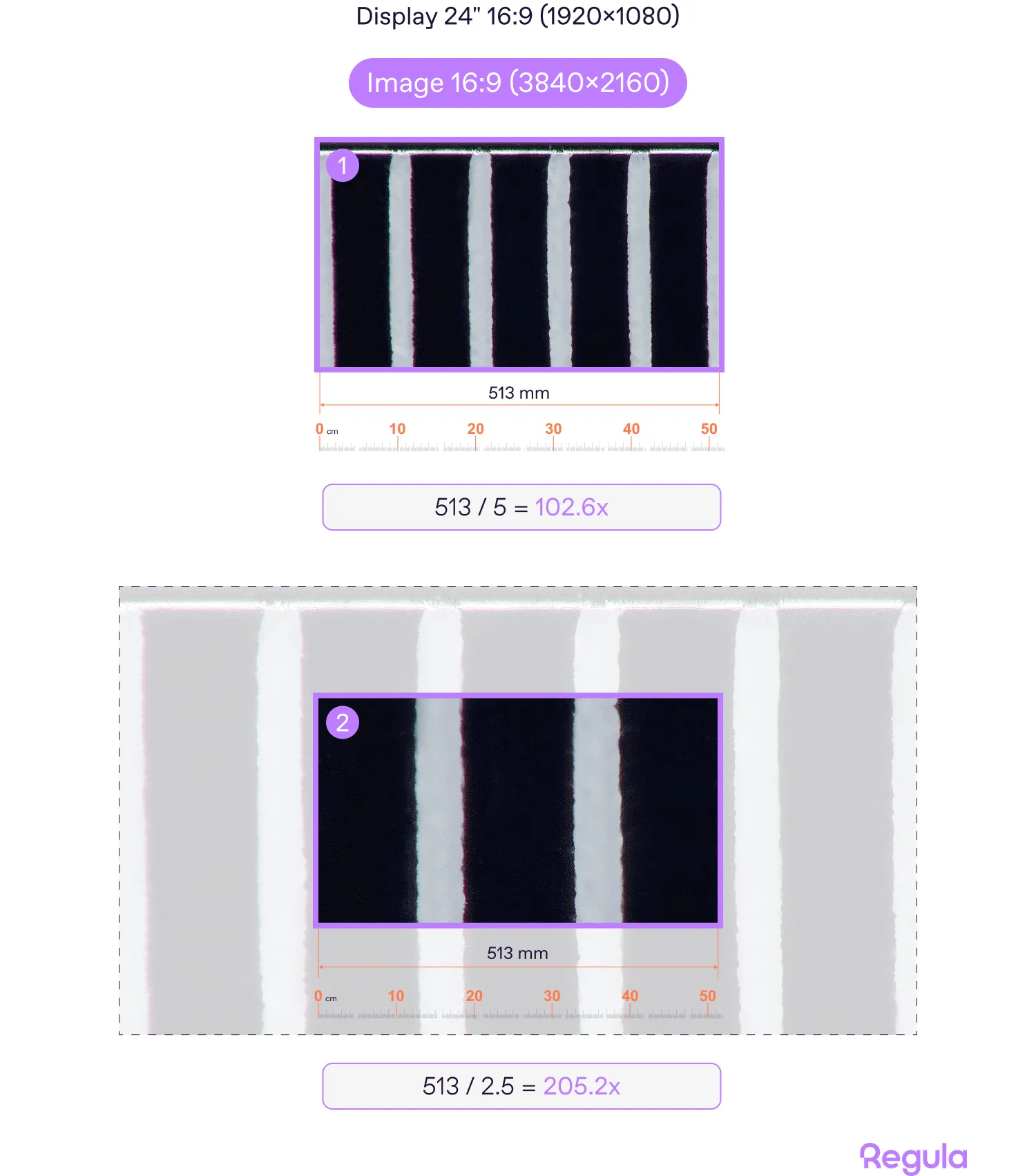

Finally, the image has a higher resolution than the display. In #1, the image is scaled down to fit the entire screen. In #2, the image is displayed at a 1:1 (pixel-for-pixel) scale. However, because the image resolution is higher than the display resolution, only part of the image is visible.
The experiment clearly shows that any difference in the way an image is displayed inevitably affects the final on-screen magnification value. All of these approaches are equally valid, which leaves room for manufacturers to present more impressive on-screen magnification values.
How does optical magnification work in forensic devices?
Now, let's move from theory to practical examples. Optical magnification should be read in the context of the device type. A handheld magnifier, an optical microscope, and a video spectral comparator can all use optical magnification, but they produce and calculate it differently.
Purely optical magnification
In forensic document examination, devices such as magnifiers and optical microscopes are purely optical systems. What does that mean? A magnifier is the simplest magnification device. It is essentially a magnifying glass, sometimes combined with light sources. It provides a fixed optical magnification: 10x, 14x, 20x, 23x, or another value. Every time you look through it, you see the object magnified by that exact factor — no more, no less.
How to check whether a 10x magnifier is truly 10x?
With screen-based devices, verifying magnification is straightforward — place a ruler under the camera and measure how large it appears on screen. But with a magnifier, there's no screen to measure against — so how is it verified?
A magnifier works by bending light in a way that allows your eye to focus on objects much closer than it normally could. The human eye, without any aid, is most comfortable focusing at around 250 mm. A magnifier with a short focal length lets you bring the object much closer while keeping the image sharp. The ratio between that standard 250 mm distance and the magnifier’s focal length is what defines its magnification:
M = 250 mm / focal length (mm)
So a magnifier with a 25 mm focal length produces 10x magnification — it makes the object appear as if you were examining it from 250 mm away, but with the detail visible at just 25 mm distance.
Although an optical microscope is a more complex device, calculating the total magnification of the system is straightforward: simply multiply the magnifications of each optical component together. For example, the Regula 5003 stereo microscope with 30x eyepieces, a 2x objective, and a zoom body at the 7x position delivers a total optical magnification of 30 × 2 × 7=420x. It's pure optics all the way through: each lens element multiplies the work of the one before it, with no digital processing involved at any stage.
Optical magnification in digital systems
This type of optical magnification is commonly found in digital cameras with macro lenses and video spectral comparators, which represent complex optical systems combining a camera with lenses.
The flagship dual-video spectral comparator Regula 4308M features a total optical magnification of 320x. This is a real, hardware-bound figure that stays the same regardless of what monitor you connect. At this level, the device effortlessly distinguishes printing techniques and visualizes microprint, security fibers, and microparticles like OVDots.

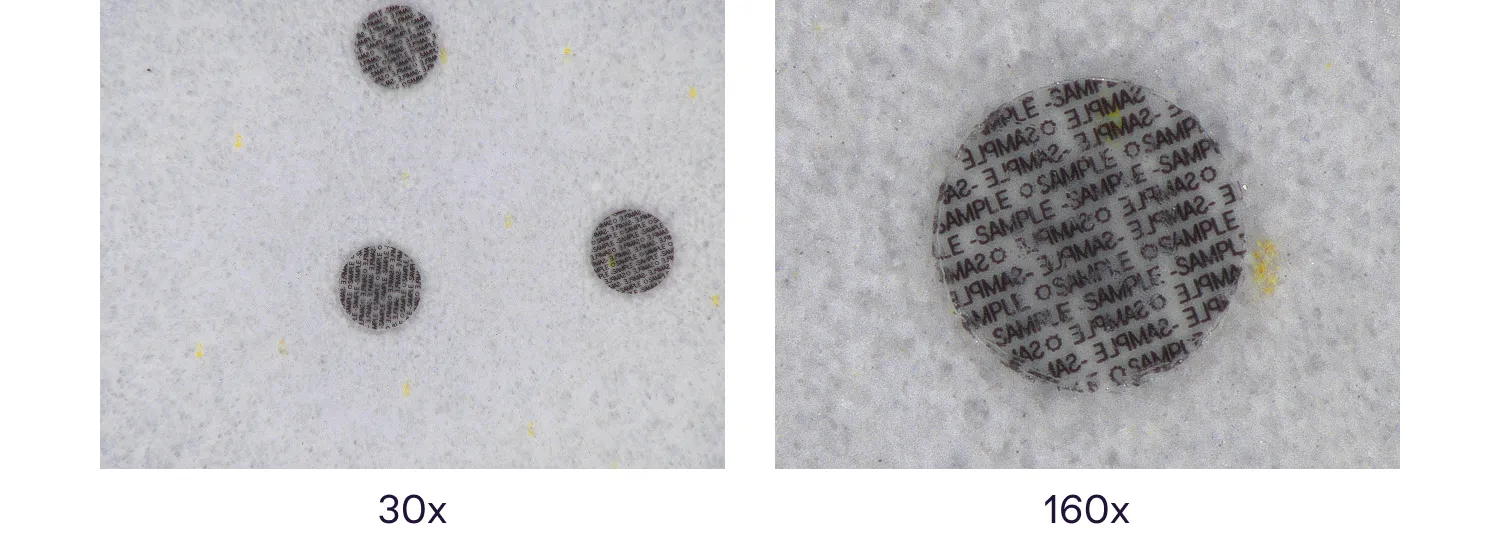

Example of OVDot microparticles developed by DataDot Technology Ltd., measuring 1 mm in size. The images were captured using the Regula 4308.

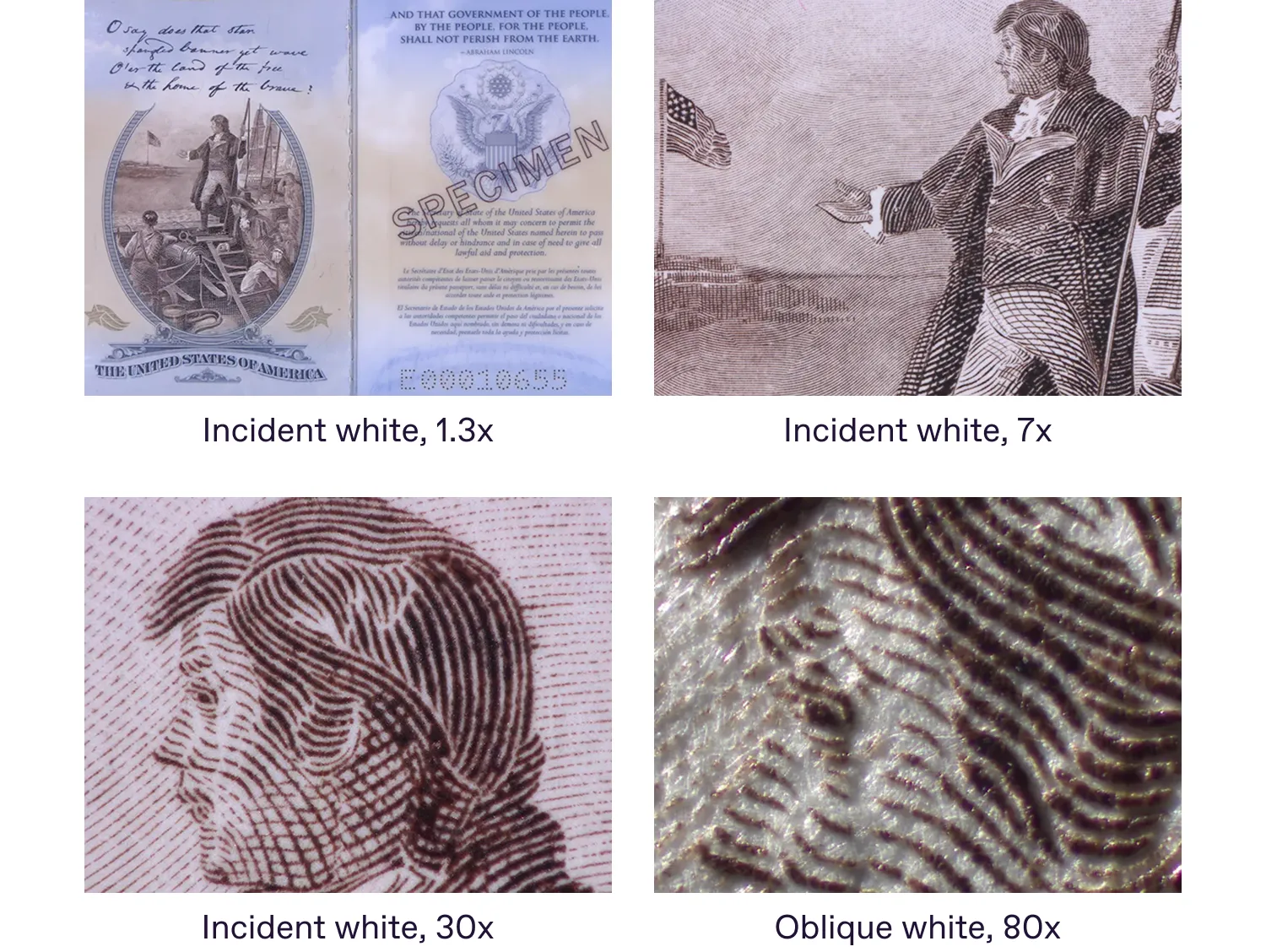

The US passport issued in 2020. An optical magnification of 80x is sufficient to distinguish printing techniques. In this case, the endpaper image was produced using intaglio printing, which is why we switched to oblique light sources to visualize the relief.

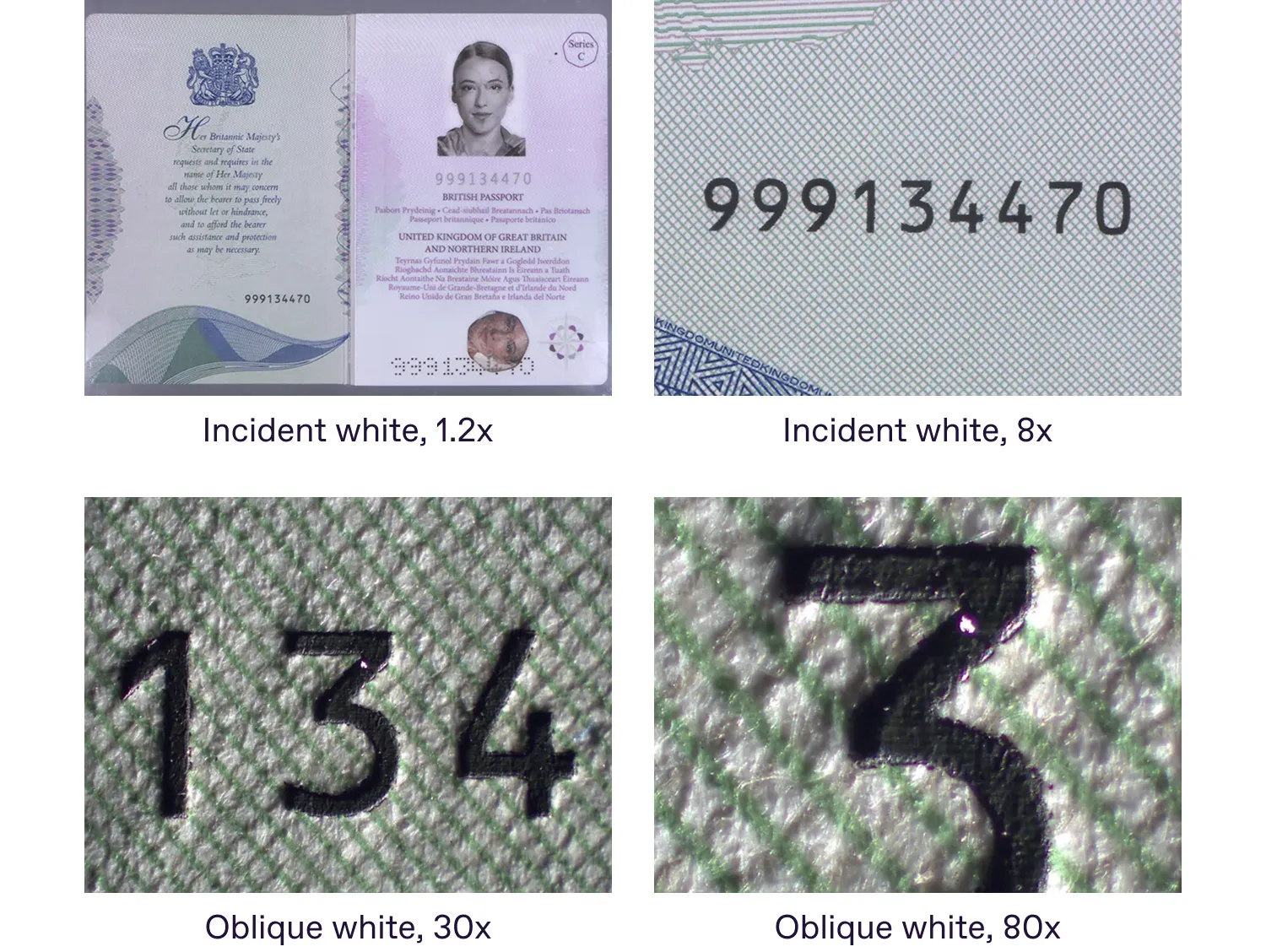

The UK passport issued in 2020. An optical magnification of 80x is sufficient to distinguish printing techniques. In this case, the serial number was produced using letterpress printing, which is why we switched to oblique white light to visualize the indentations.
Final thoughts
Today, virtually every forensic imaging system provides an on-screen magnification value because, ultimately, the examiner evaluates the image on a display. However, it is important to understand what this figure actually represents. On-screen magnification is the result of several factors working together, including the optical system, image resolution, display size and resolution, software settings, and the way the image is presented on the screen.
Among all these factors, optical magnification is the foundation. It is the only hardware-based parameter that remains constant regardless of the display, or calculation method. Everything else builds on top of it. A more modest optical magnification figure is therefore far more meaningful than an impressive-looking on-screen value. The same 320x optical magnification, for instance, can translate to more than 1100x on-screen when viewed on a 32-inch 4K display.
Understanding the difference will help you ask the right questions when evaluating forensic devices and make a more informed procurement decision. If you have any technical questions about magnification or the Regula 4308M, our team will be happy to help.
