Discover the Unnoticeable

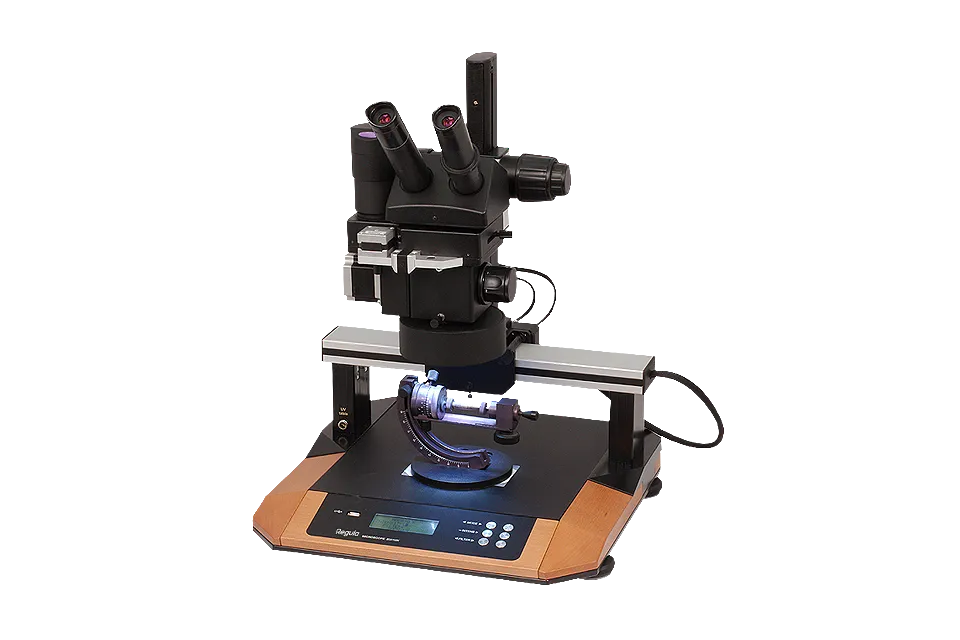

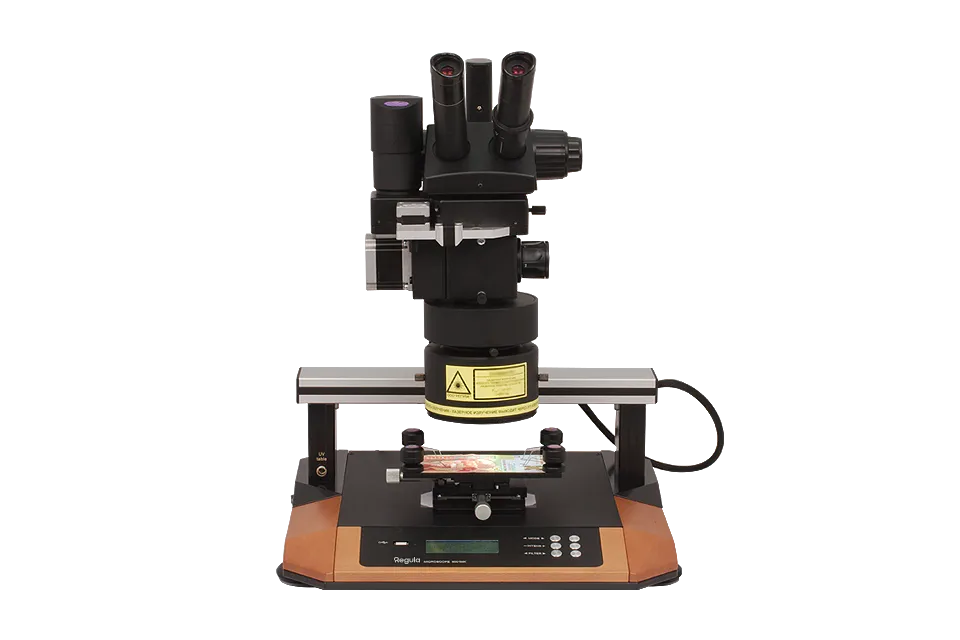

The microscope Regula 5001MK has a set of light sources of visible, infrared and ultraviolet spectral ranges, as well as an imaging filters for carrying out varied forensic examinations: handwriting, dactyloscopic, trasological, and ballistic.

The control buttons and the screen on the front panel enable device operation even when the microscope is not connected to a PC.

The device is controlled via Regula Forensic Studio software, which can capture, process, and store images of examined objects.

The device provides additional visual control using the binocular nozzle.

Intended Objects for Examination

ID Cards
Passport stamps
Signatures and handwritten notes
Vehicle registration certificates
Driver’s licenses
Revenue stamps

Highlighted Features

Spectral luminescent light complex

It is designed to examine objects in different spectral ranges thanks to the position of the light sources relative to the working surface.

Ring light complex

It is used to examine objects under shadowless illumination of white and IR light.

Bottom light complex

It is used to detect watermarks, security threads and fibers, see-through registers, and continuous printing, as well as and to reveal document alterations such as erasure, etching and washing-off.

Not only digital

The digital magnification for a 21-inch monitor is 266x with a field of view of 1.6×1.2 mm. For additional visual control, you can use the binocular nozzle with changeable 8x and 14x eyepieces. Lens magnification is up to 98x.

User-friendly device

It is operated by buttons on the front panel and/or Regula Forensic Studio software. The buttons are used to activate light sources and adjust camera parameters in different examination modes. The latter are displayed on the LCD display.

Varied examinations

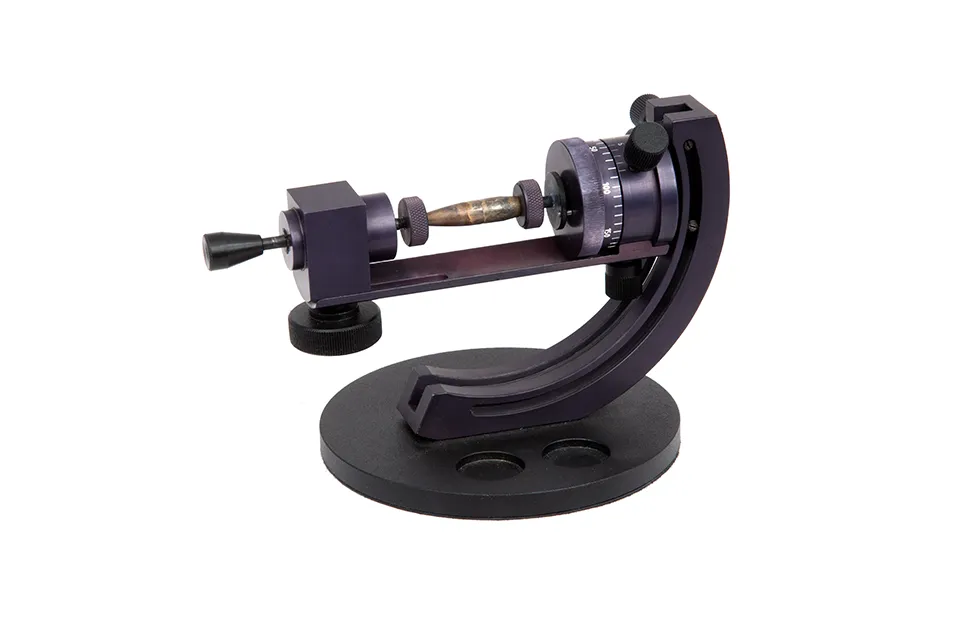

Regula 5001MK.01 is equipped with an analysis stand which makes it possible to clamp examined objects (bullets, cartridge cases, etc.) and rotate them radially and axially, as well as in the tangential direction.

Download Brochure

Examples of Examination

Document examination in different light sources and operation modes

Efficient Solution for a Variety of Sectors

Regula in Security printing industry
Security printing industry
Independent experts
Independent experts

One-Stop Shop for Hardware, Software and Knowledge

ID verification sdk by Regula

Specialized Training

Training courses on document and banknote authentication

Read more
ID verification sdk by Regula

Information Reference Systems

Databases of travel documents, banknotes, driver's licenses and vehicle registration certificates

Read more


Does not constitute а public offer

Light complexes


- incident: white, ultraviolet 365 nm, royal blue 455 nm, blue 470 nm, cyan 505 nm, green 530 nm, amber 590 nm, red 627 nm, infrared 870 and 950 nm, high-intensity infrared 980 nm
- oblique: white (4 light sources), infrared 870 nm (36 light sources)


white, infrared 870 nm, UV bottom lighter 365 nm


white (36 light sources), infrared 870 nm (36 light sources)

Digital image capture

Frame size

2048×1536 pixels

Add. lens magnification

0.6x / 1x / 2x / 4x / 7x

Magnification (for a 21-inch monitor)

from 19.9x to 266.7x

Field of view

from 1.6×1.2 to 21.5×16 mm

Through eyepiece lens

Lens magnification with the eyepiece

8x / 14x

Add. lens magnification

0.6x / 1x / 2x / 4x / 7x

Total magnification

from 4.8x to 98x

Field of view

from 2.1 to 39 mm

General parameters


440×440×600 mm


20 kg

Supply voltage

12 ± 0.5 V

Delivery set

Analysis stand which enables to clamp examined objects for Regula 5001MK.01

Regula Forensic Studio software


- 8x
- 8x with a measuring scale
- 14x

Full Specification Regula 5001MK


Regula Forensics Studio Software

Incident white light 1x
Incident white light 4x
Incident white light 7x
Incident UV light (365 nm) 0.6x
Incident UV light (365 nm) 2x
Transmitted white light 1x
IR luminescence 1x
Oblique white light 1x
Oblique IR light 1x
anti-Stokes luminescence 1x
Incident ring white light 0.6x
Incident ring white light 1x
Incident semiring IR light 2x
